FT9.9DMH (2003)
OIL PAN

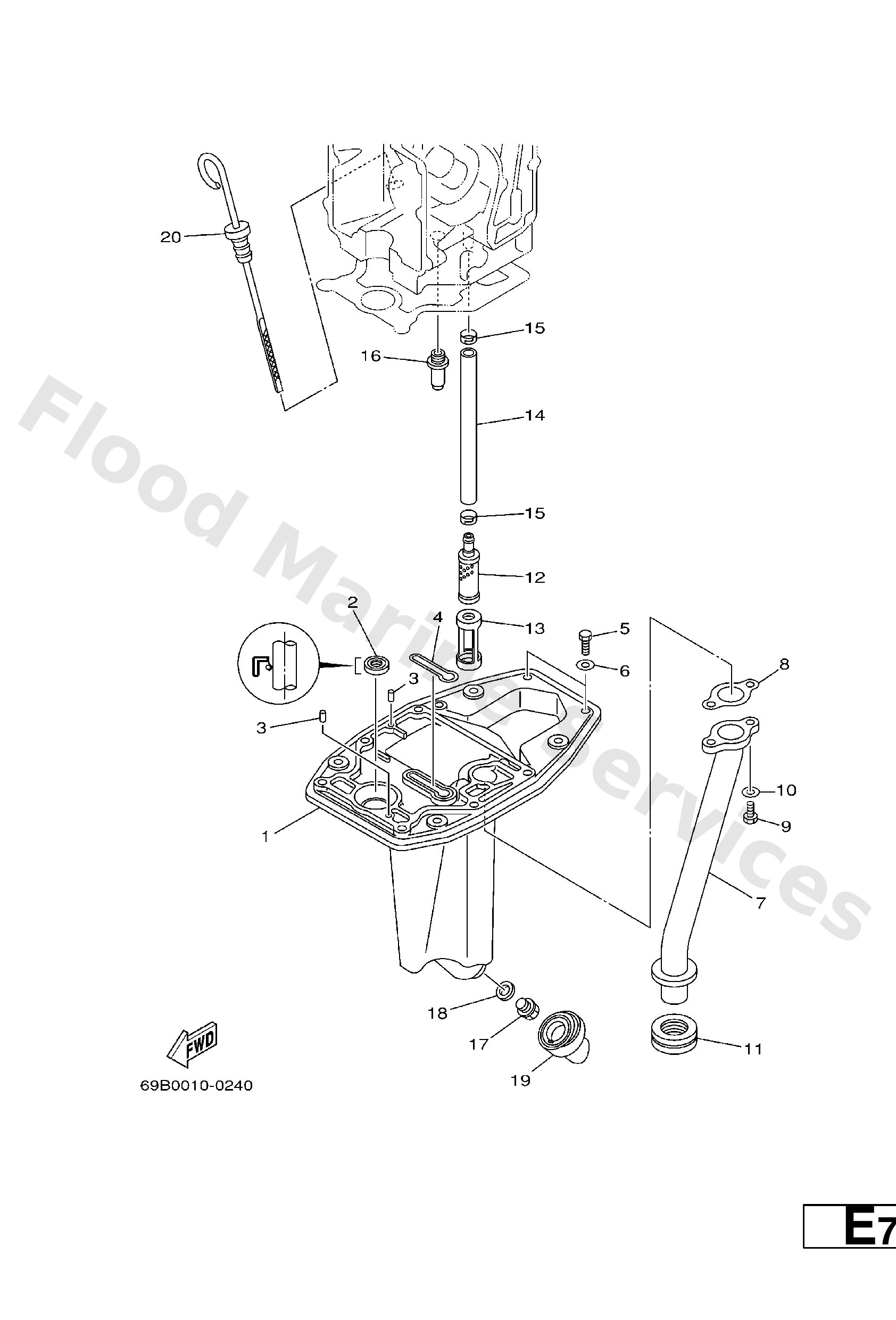

Diagram: OIL PAN
Parts List
Reference
Description
Price
1
66M−41137−00−5B
Guide, exhaust
Loading…
↗
2
93101−12M63
Oil seal
Loading…
↗
3
93606−12019
Pin, dowel (614)
Loading…
↗
4
66M−11355−00
Seal, cylinder 1
Loading…
↗
5
97095−06020
Bolt(7u8)
Loading…
↗
6
92995−06600
Washer, plain (646)
Loading…
↗
7
66M−41131−01−94
Manifold, Ext. 1
Loading…
↗
8
66M−41133−00
Gasket, exhaust manifold 1
Loading…
↗
9
97095−06016
Bolt, hexagon deep recess
Loading…
↗
11
66M−41138−00
Seal, ext. 1
Loading…
↗
12
66M−13421−00
Strainer 2
Loading…
↗
13
66M−13417−00
Cover, Strainer
Loading…
↗
14
66M−13416−00
Pipe, Oil 1
Loading…
↗
15
66M−24351−00
Band 1
Loading…
↗
16
6G8−11575−00
Relief valve ass'y
Loading…
↗
17
90340−14M06
Plug, straight screw(62y)
Loading…
↗
18
90430−14M09
Gasket
Loading…
↗
19
66M−15316−00
Damper, Engine Mount 1
Loading…
↗
20
66M−15362−00
Plug, Oil Level
Loading…
↗
