FT9.9GMH (2010)
OIL PAN

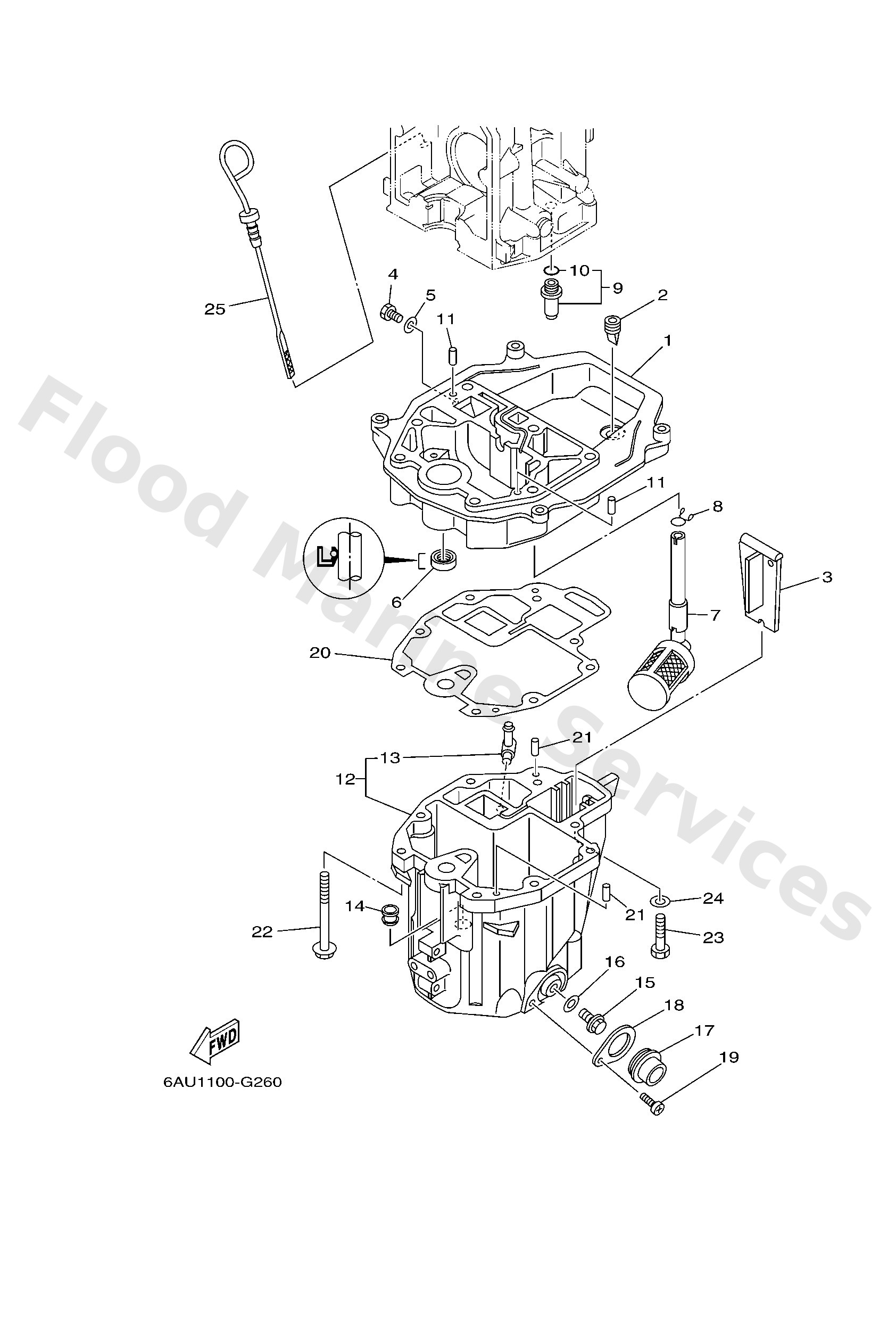

Diagram: OIL PAN
Parts List
Reference
Description
Price
1
68T411370094
Guide, exhaust
Loading…
↗
2
65W4271700
Rubber, seal 2
Loading…
↗
3
68T4518100
Plate
Loading…
↗
4
9709508014
Bolt, hexagon deep recess
Loading…
↗
5
9043008143
Gasket (256-11198-00)
Loading…
↗
6
9310112M70
Oil seal
Loading…
↗
7
68T1342101
Strainer 2
Loading…
↗
8
9046711M08
Clip(72x)
Loading…
↗
9
6G81157500
Relief valve ass'y
Loading…
↗
10
9321012M62
O-ring (6g8)
Loading…
↗
11
9360619M23
Pin, dowel
Loading…
↗
12
68T15311015B
Oil pan
Loading…
↗
13
6H11137200
Nipple, hose
Loading…
↗
14
9048010M28
Grommet(6k7)
Loading…
↗
15
9034010M10
Plug, straight screw
Loading…
↗
16
9043010M11
Gasket
Loading…
↗
17
68T1531600
Damper, engine mount 1
Loading…
↗
18
68T1531700
Spacer, engine mount
Loading…
↗
19
9788505008
Screw, pan head
Loading…
↗
20
68T1347500
Gasket
Loading…
↗
21
9360412M07
Pin, dowel (688)
Loading…
↗
22
9011908005
Bolt, with washer
Loading…
↗
23
9707508030
Bolt, hexagon (fj1)
Loading…
↗
24
9299508600
Washer, plain (663)
Loading…
↗
25
68T1536200
Plug, oil level
Loading…
↗
