XF375NSA (2018)
OIL PAN

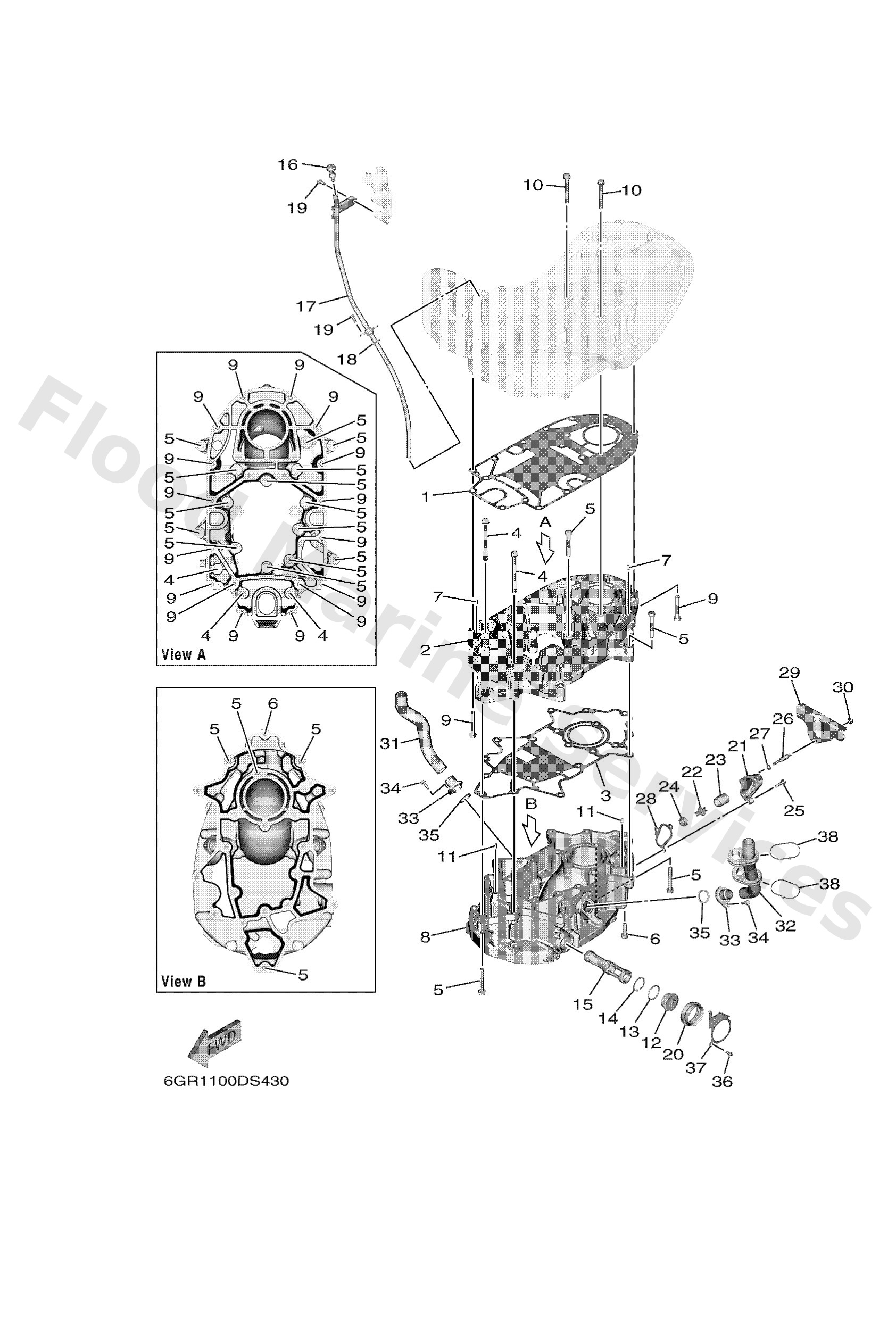

Diagram: OIL PAN
Parts List
Reference
Description
Price
1
6GR1531200
Gasket, oil pan
Loading…
↗
2
6GR1531B00
Oil pan 2
Loading…
↗
3
6GR1531C00
Gasket, oil pan 2
Loading…
↗
4
9011910M14
Bolt, with washer
Loading…
↗
5
9757510570
Bolt, hexagon w/w deep recess
Loading…
↗
6
9011910040
Bolt, with washer
Loading…
↗
7
9360612019
Pin, dowel (614)
Loading…
↗
8
6GR1531100
Oil pan
Loading…
↗
10
9757510580
Bolt, hexagon w/w deep recess
Loading…
↗
12
6GR1535100
Plug, drain
Loading…
↗
13
9321034633
O-ring (21a)
Loading…
↗
14
9342036M01
Circlip (6a0)
Loading…
↗
15
6GR1341100
Strainer, oil
Loading…
↗
16
6GR1536200
Plug, oil level
Loading…
↗
17
6GR1537700
Guide, inlet
Loading…
↗
18
9321019MJ3
O-ring
Loading…
↗
19
9589506016
Bolt, flange deep recess
Loading…
↗
20
6GR1531600
Damper 1
Loading…
↗
21
6EK1246A009S
Cover 1
Loading…
↗
22
6G51241600
Valve, pressure control
Loading…
↗
23
90501200A2
Spring, compression
Loading…
↗
24
9048020M05
Grommet (688)
Loading…
↗
25
9589506025
Bolt, flange deep recess
Loading…
↗
26
6GR4274200
Bolt
Loading…
↗
27
9299506200
Ybs66-6 washer, plain
Loading…
↗
28
6EK12435A0
Gasket
Loading…
↗
29
6GR4277600
Stay, apron 3
Loading…
↗
30
9017906M28
Nut(63v)
Loading…
↗
31
6GR1243F00
Hose,3
Loading…
↗
32
6GR1257A00
Hose assembly 1
Loading…
↗
33
6GR1258100
Joint, hose 1
Loading…
↗
34
9589506020
Bolt, flange(jk3)
Loading…
↗
35
6GR4436600
Damper, water seal 2
Loading…
↗
36
9709506012
Bolt(gh1)
Loading…
↗
37
6GR4515200
Cover, upper casing 2
Loading…
↗
38
9046466001
Clamp
Loading…
↗
