115CETO (2006)
OIL PUMP

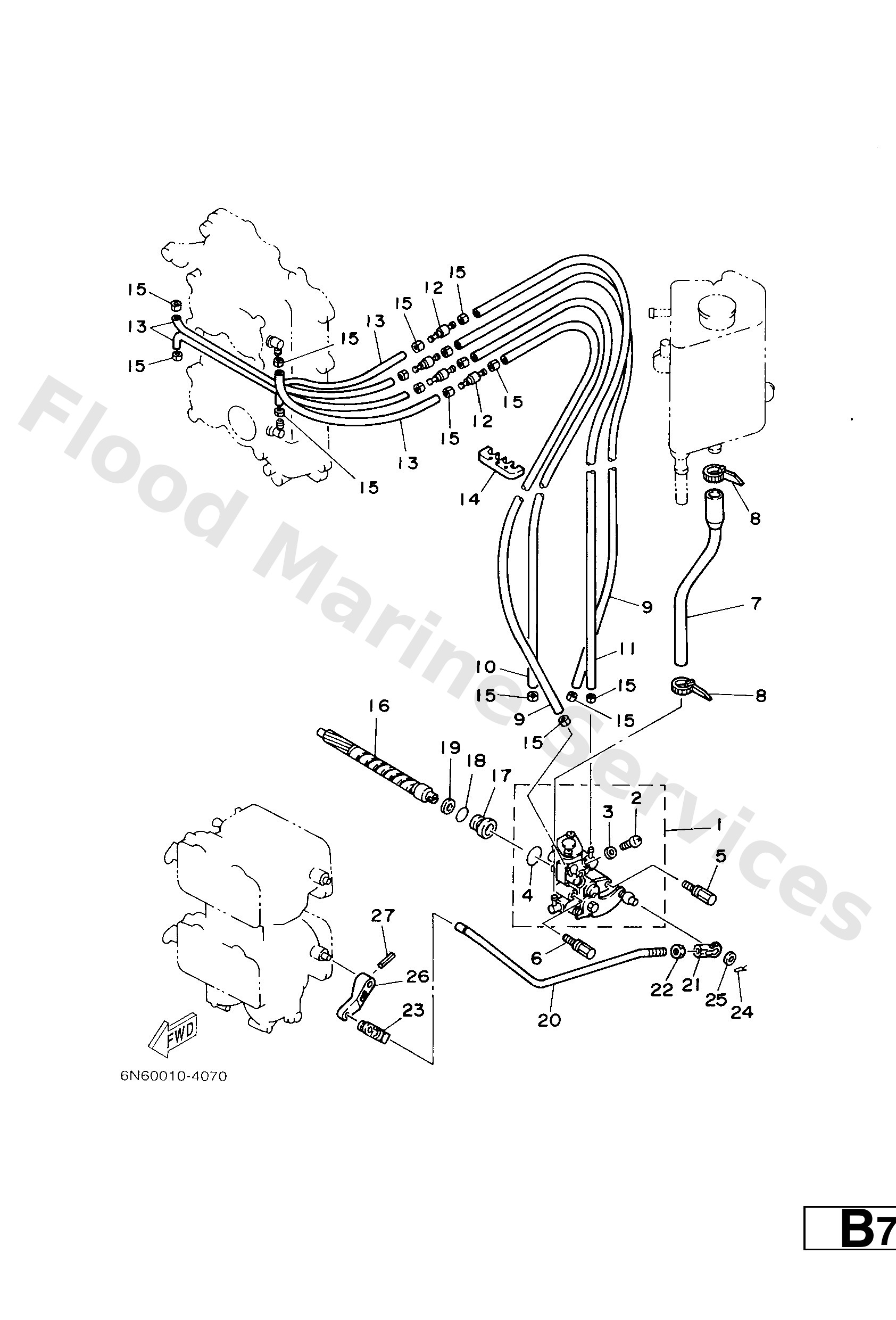

Diagram: OIL PUMP
Parts List
Reference
Description
Price
1
6N71320000
Oil injection pump assembly
Loading…
↗
1
6N61320000
Oil injection pump assembly
Loading…
↗
2
6R31347100
Screw
Loading…
↗
3
6L21347500
Gasket, breather bolt
Loading…
↗
4
9321019MA7
O-ring(6r0)
Loading…
↗
5
9010906M40
Bolt(6h0)
Loading…
↗
6
9010906M39
Bolt(6h0)
Loading…
↗
7
6N71341600
Pipe, oil 1
Loading…
↗
8
9046511M10
Clamp
Loading…
↗
9
9044507M89
Hose (l390)
Loading…
↗
10
9044507196
Hose (l200)
Loading…
↗
11
9044507M72
Hose (l390)
Loading…
↗
12
6R31318310
Valve, check
Loading…
↗
13
9044507M87
Hose(62t)
Loading…
↗
14
9046407M06
Clamp (6e5)
Loading…
↗
15
9046807M02
Clip (6e5)
Loading…
↗
16
6R31153700
Gear, driven
Loading…
↗
17
6R31311700
Collar, distance
Loading…
↗
18
9321013M04
93210-13m04
Loading…
↗
19
9020208M44
Washer, plate(6r3)
Loading…
↗
20
6R34124100
Rod, link
Loading…
↗
21
6H14123700
Joint, link
Loading…
↗
22
9538005600
Nut, hexagon (663)
Loading…
↗
23
6R54123700
Joint, link
Loading…
↗
24
9046805M03
Clip(6j8)
Loading…
↗
25
9020205088
Washer, plate (666)
Loading…
↗
26
6E51427601
Lever
Loading…
↗
27
9169030016
Pin, spring
Loading…
↗
