150FETO (2006)
OIL PUMP

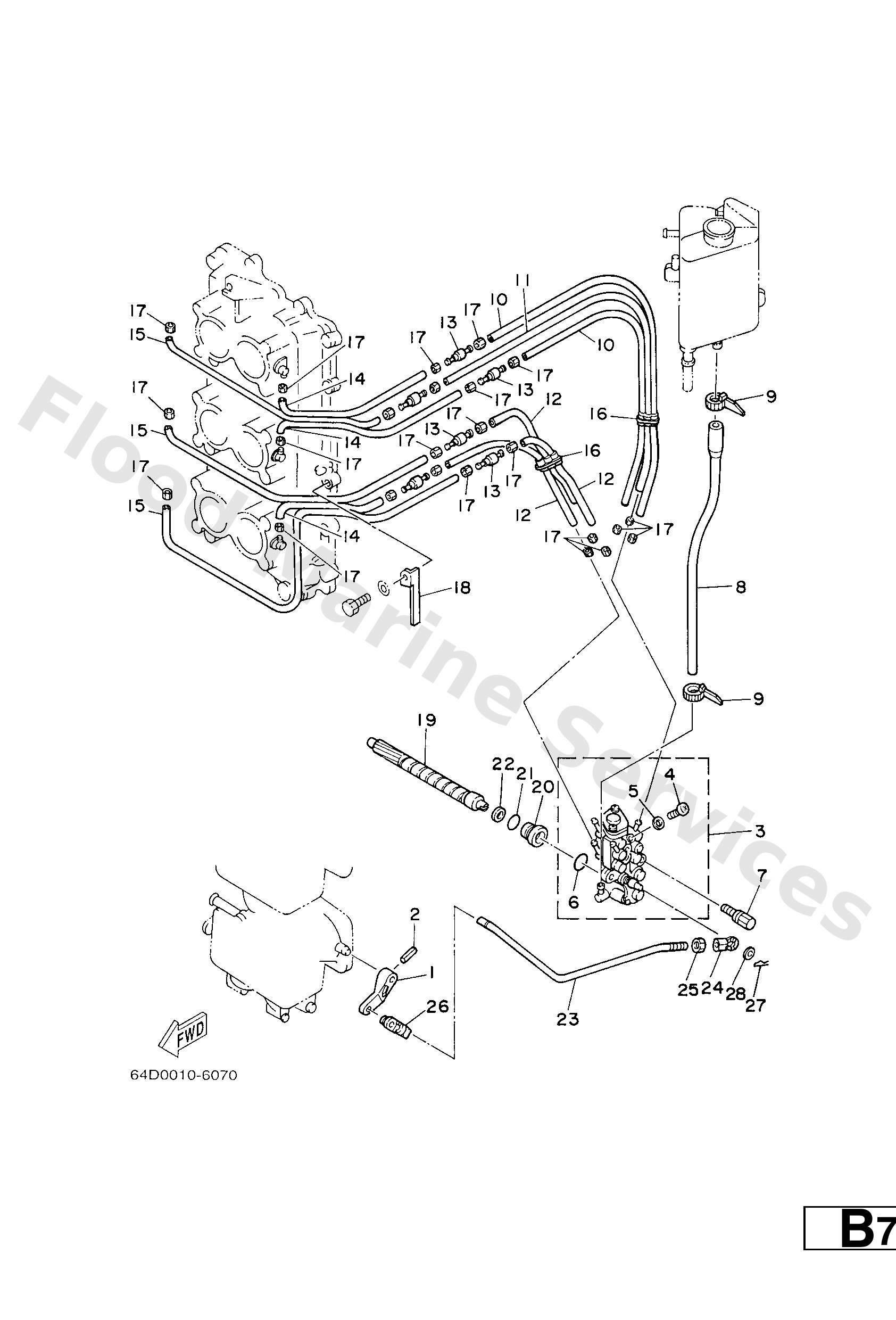

Diagram: OIL PUMP
Parts List
Reference
Description
Price
1
6E51427601
Lever
Loading…
↗
2
9169030016
Pin, spring
Loading…
↗
3
6R41320002
Oil injection pump assembly
Loading…
↗
3
6R51320012
Oil injection pump assembly
Loading…
↗
4
6R31347100
Screw
Loading…
↗
5
6L21347500
Gasket, breather bolt
Loading…
↗
6
9321019M82
O-ring(6j8)
Loading…
↗
7
9010906M40
Bolt(6h0)
Loading…
↗
8
6R31341600
Pipe, oil 1
Loading…
↗
9
9046511M10
Clamp
Loading…
↗
10
9044507M72
Hose (l390)
Loading…
↗
11
9044507M89
Hose (l390)
Loading…
↗
12
9044507M83
Hose (l200)
Loading…
↗
13
6R31318310
Valve, check
Loading…
↗
14
9044507M87
Hose(62t)
Loading…
↗
15
9044507M96
Hose(62t)
Loading…
↗
16
9046407M05
Clamp (6g5)
Loading…
↗
17
9046807M02
Clip (6e5)
Loading…
↗
18
9046510M91
Clamp
Loading…
↗
19
6R31153700
Gear, driven
Loading…
↗
20
6R31311700
Collar, distance
Loading…
↗
21
9321013M04
93210-13m04
Loading…
↗
22
9020208M44
Washer, plate(6r3)
Loading…
↗
23
6R34124100
Rod, link
Loading…
↗
24
6H14123700
Joint, link
Loading…
↗
25
9538005600
Nut, hexagon (663)
Loading…
↗
26
6R54123700
Joint, link
Loading…
↗
27
9046805M03
Clip(6j8)
Loading…
↗
28
9020205088
Washer, plate (666)
Loading…
↗
