200GETO (2002)
OIL PUMP

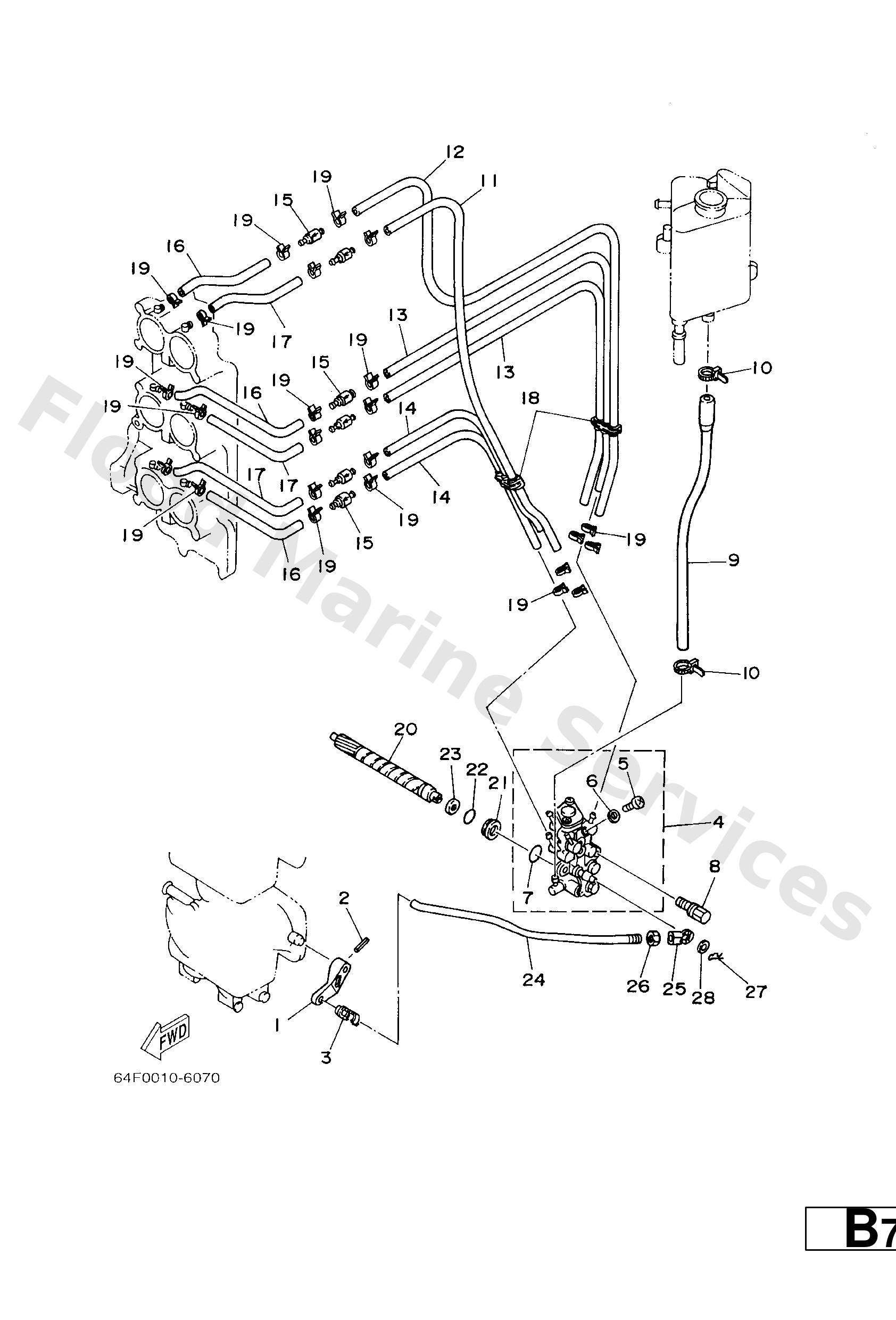

Diagram: OIL PUMP
Parts List
Reference
Description
Price
1
6E5--14276--01
Lever
Loading…
↗
2
91690--30016
Pin, spring
Loading…
↗
3
6R5--41237--00
Joint, link
Loading…
↗
4
6R5--13200--10
Oil injection pump assembly
Loading…
↗
5
6R3--13471--00
Screw
Loading…
↗
6
6L2--13475--00
Gasket, breather bolt
Loading…
↗
7
93210--19MA7
O-ring(6r0)
Loading…
↗
8
90109--06M40
Bolt(6h0)
Loading…
↗
9
6R3--13416--00
Pipe, oil 1
Loading…
↗
10
90465--11M10
Clamp
Loading…
↗
11
90445--07M77
Hose (l390)
Loading…
↗
12
90445--07M85
Hose (l390)
Loading…
↗
13
90445--07M72
Hose (l390)
Loading…
↗
14
90445--07196
Hose (l200)
Loading…
↗
15
6R3--13183--10
Valve, check
Loading…
↗
16
90445--07M87
Hose(62t)
Loading…
↗
17
90445--07M07
Hose(62t)
Loading…
↗
18
90464--07M05
Clamp (6g5)
Loading…
↗
19
90468--07M02
Clip (6e5)
Loading…
↗
20
6R3--11537--00
Gear, driven
Loading…
↗
21
6R3--13117--00
Collar, distance
Loading…
↗
22
93210--13M04
93210-13m04
Loading…
↗
23
90202--08M44
Washer, plate(6r3)
Loading…
↗
24
6R5--41241--00
Rod, link
Loading…
↗
25
6H1--41237--00
Joint, link
Loading…
↗
26
95380--05600
Nut, hexagon (663)
Loading…
↗
27
90468--05M03
Clip(6j8)
Loading…
↗
28
90202--05088
Washer, plate (666)
Loading…
↗
