20DMHO (2009)
OIL PUMP

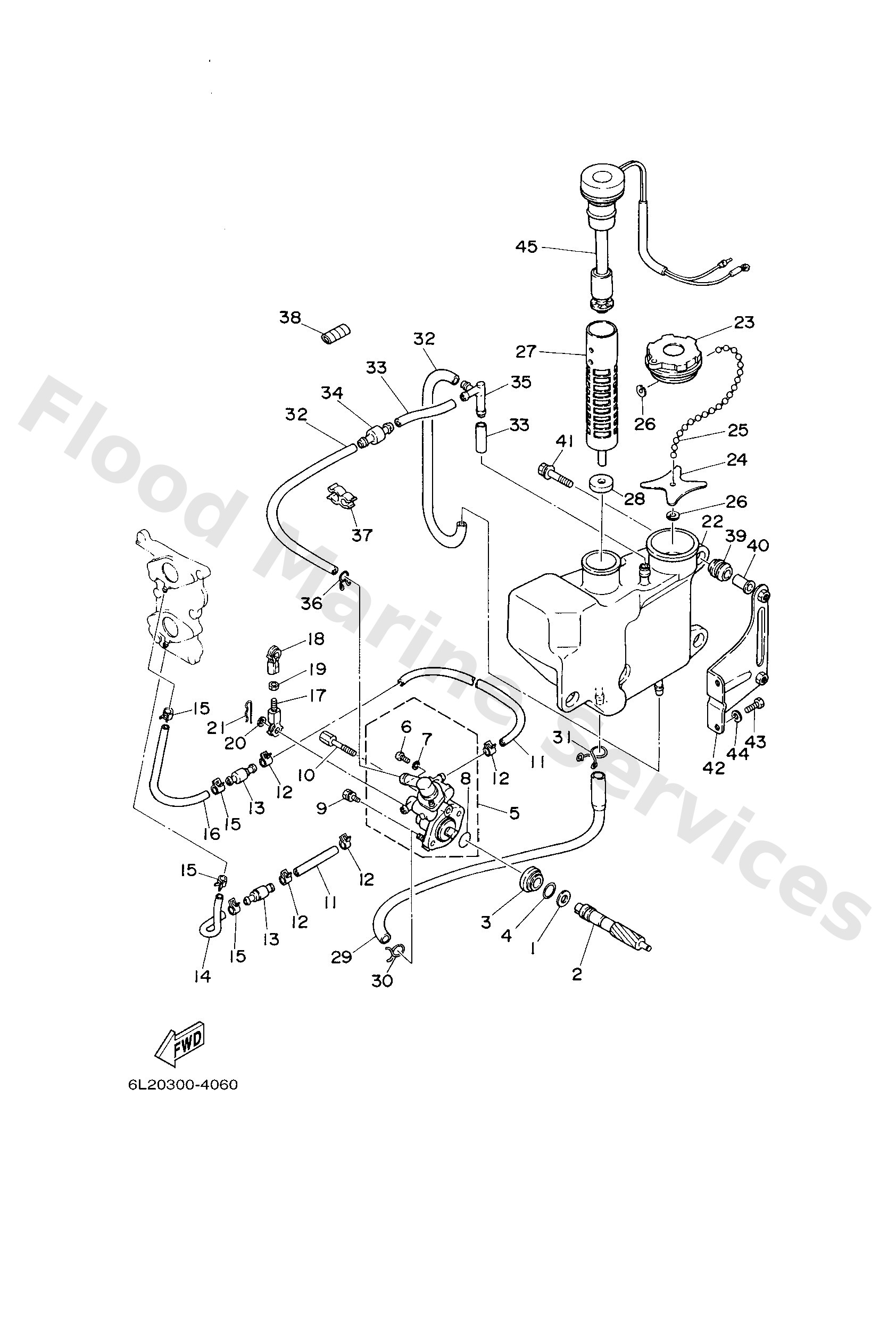

Diagram: OIL PUMP
Parts List
Reference
Description
Price
1
9020108M93
Washer, plate (6g5)
Loading…
↗
2
6L21153700
Gear, driven
Loading…
↗
3
6J81311700
Collar, distance
Loading…
↗
4
9321013M04
93210-13m04
Loading…
↗
5
6L21320000
Oil injection pump assembly
Loading…
↗
6
6L21347100
Plug, drain
Loading…
↗
7
6L21347500
Gasket, breather bolt
Loading…
↗
8
9321019M82
O-ring(6j8)
Loading…
↗
9
9751305518
Bolt, with washer
Loading…
↗
10
9010905M33
Bolt
Loading…
↗
11
9044507M32
Hose (l200)
Loading…
↗
12
9046807M02
Clip (6e5)
Loading…
↗
13
6E91318370
Valve check
Loading…
↗
14
9044507M04
Hose(62t)
Loading…
↗
16
9044507M16
Hose(62t)
Loading…
↗
17
6824123750
Joint, link 2
Loading…
↗
18
6H14123700
Joint, link
Loading…
↗
19
9538005700
Nut (656)
Loading…
↗
20
9020205088
Washer, plate (666)
Loading…
↗
21
9046805M03
Clip(6j8)
Loading…
↗
22
6L22170701
Oil tank comp.
Loading…
↗
23
6H42177000
Oil tank cap assembly
Loading…
↗
24
6L22175800
Washer, special 2
Loading…
↗
25
6H12463300
Chain, Ball
Loading…
↗
26
6H12175700
Washer, special 1
Loading…
↗
27
6J81341100
Strainer, oil
Loading…
↗
28
6J81341400
Gasket, strainer cover
Loading…
↗
29
6L21341600
Pipe, oil 1
Loading…
↗
30
9046708004
Clip, pipe 6162435600
Loading…
↗
31
9046711M08
Clip(72x)
Loading…
↗
32
9044511M03
Hose (l360)
Loading…
↗
33
9044511M07
Hose (l70)
Loading…
↗
34
63D2174400
Breather
Loading…
↗
35
6E52437610
Pipe, joint 1
Loading…
↗
36
9046710M04
Clip, pipe 1 (6e9)
Loading…
↗
37
9046411M24
Clamp(6h1)
Loading…
↗
38
9044610M02
Tube (6e5)
Loading…
↗
39
6A08231700
Damper, ignition coil
Loading…
↗
40
9038706119
Collar
Loading…
↗
41
9011906M65
Bolt, with washer
Loading…
↗
42
6L22179800
Bracket, damper
Loading…
↗
43
9709506016
Bolt, hexagon deep recess
Loading…
↗
44
9299506600
Washer, plain (646)
Loading…
↗
45
6L28572002
Oil level gauge assembly
Loading…
↗
