225GETO (1999)
OIL PUMP

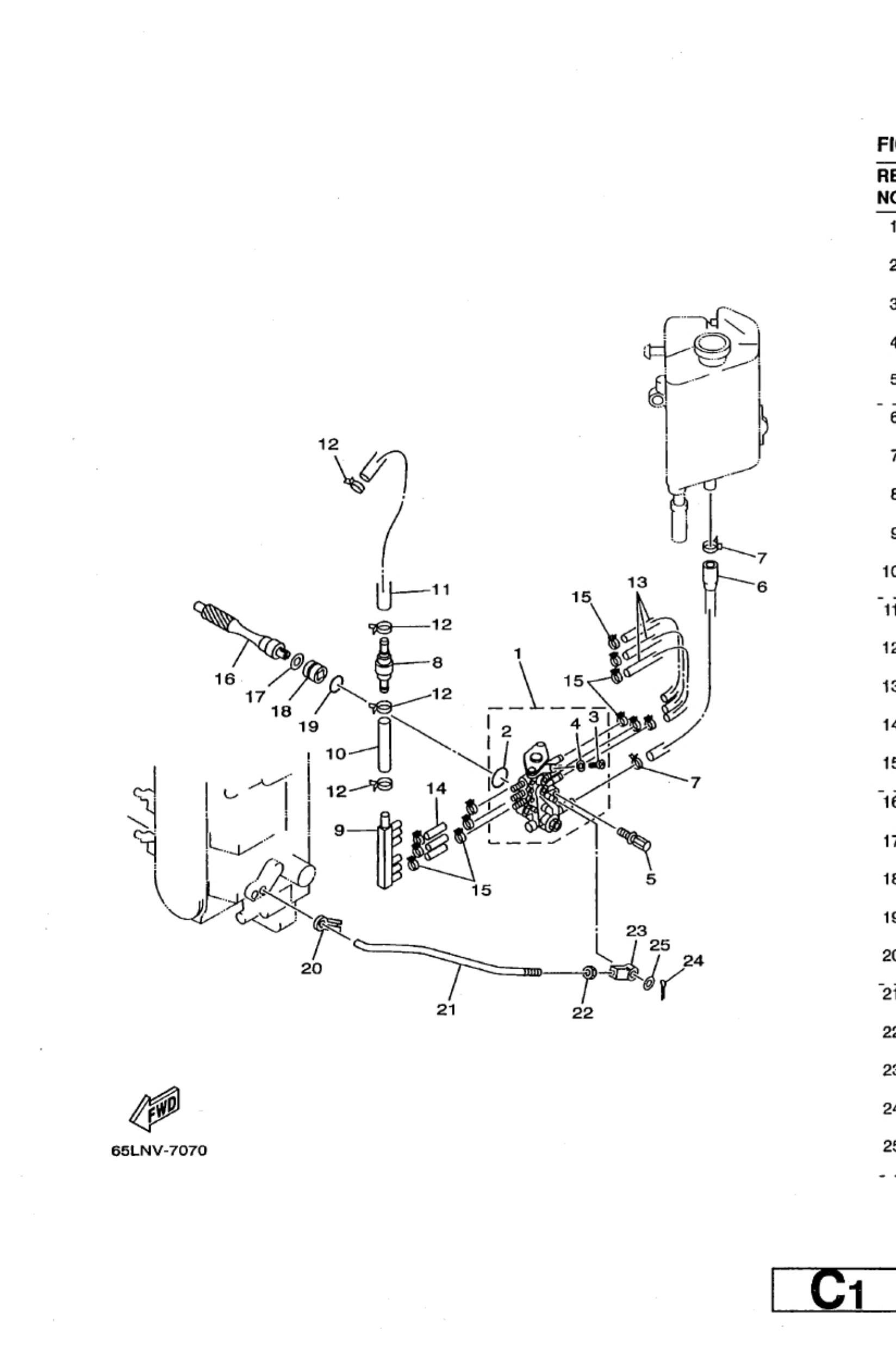

Diagram: OIL PUMP
Parts List
Reference
Description
Price
1
65L1320000
Oil injection pump assembly
Loading…
↗
2
9321019M82
O-ring(6j8)
Loading…
↗
3
6A31347100
Plug, Drain
Loading…
↗
4
6121347500
Gasket
Loading…
↗
5
9010906M40
Bolt(6h0)
Loading…
↗
6
61A1341600
Pipe, Oil 1
Loading…
↗
7
9048511M10
Clamp
Loading…
↗
8
65L1318300
Valve, check
Loading…
↗
9
65L2437800
Pipe, joint 4
Loading…
↗
10
9044509220
Hose (l1500)
Loading…
↗
11
9044609M69
Hose(65j)
Loading…
↗
12
9046511M10
Clamp
Loading…
↗
13
9044507M02
Hose (l200)
Loading…
↗
14
9044507M03
Hose (l200)
Loading…
↗
15
9046807M02
Clip (6e5)
Loading…
↗
17
9020109Mo1
‘Washer, Plate
Loading…
↗
18
61A1311700
Collar, distance
Loading…
↗
19
9321018MA9
O-ring(61a)
Loading…
↗
20
6R54123700
Joint, link
Loading…
↗
20
2410
Rod, Link
Loading…
↗
22
9538005600
Nut, hexagon (663)
Loading…
↗
23
6H14123700
Joint, link
Loading…
↗
24
9149012012
Pin, cotter (6g8)
Loading…
↗
24
65LNV7070
90202-05088 WASHER, PLATE
-
Loading…
↗
