250GETO (2010)
OIL PUMP

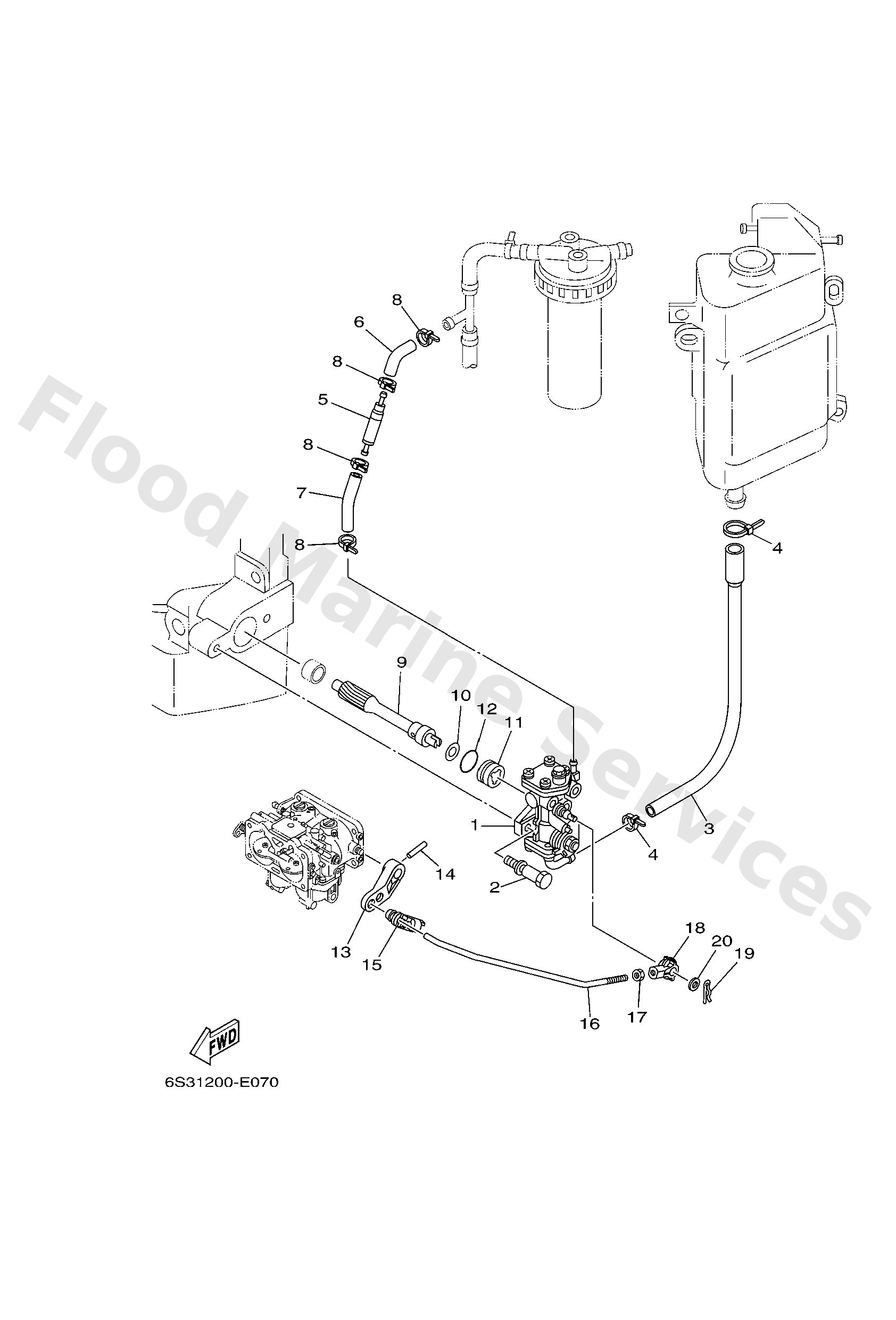

Diagram: OIL PUMP
Parts List
Reference
Description
Price
1
6S31320000
Oil injection pump assembly
Loading…
↗
2
9010906M40
Bolt(6h0)
Loading…
↗
3
6R31341600
Pipe, oil 1
Loading…
↗
4
9046511M10
Clamp
Loading…
↗
5
65L1318300
Valve, check
Loading…
↗
6
61A2431600
Pipe 6
Loading…
↗
7
9044609001
Hose
Loading…
↗
9
61A1153700
Gear, driven
Loading…
↗
10
9020109M01
Washer, plate(61b)
Loading…
↗
11
61A1311700
Collar, distance
Loading…
↗
12
9321018MA9
O-ring(61a)
Loading…
↗
13
6E51427601
Lever
Loading…
↗
14
9169030016
Pin, spring
Loading…
↗
15
6R54123700
Joint, link
Loading…
↗
16
6S34124100
Rod, link
Loading…
↗
17
9538005600
Nut, hexagon (663)
Loading…
↗
18
6H14123700
Joint, link
Loading…
↗
19
9046805M03
Clip(6j8)
Loading…
↗
20
9020205088
Washer, plate (666)
Loading…
↗
