30DMHO (2015)
OIL PUMP

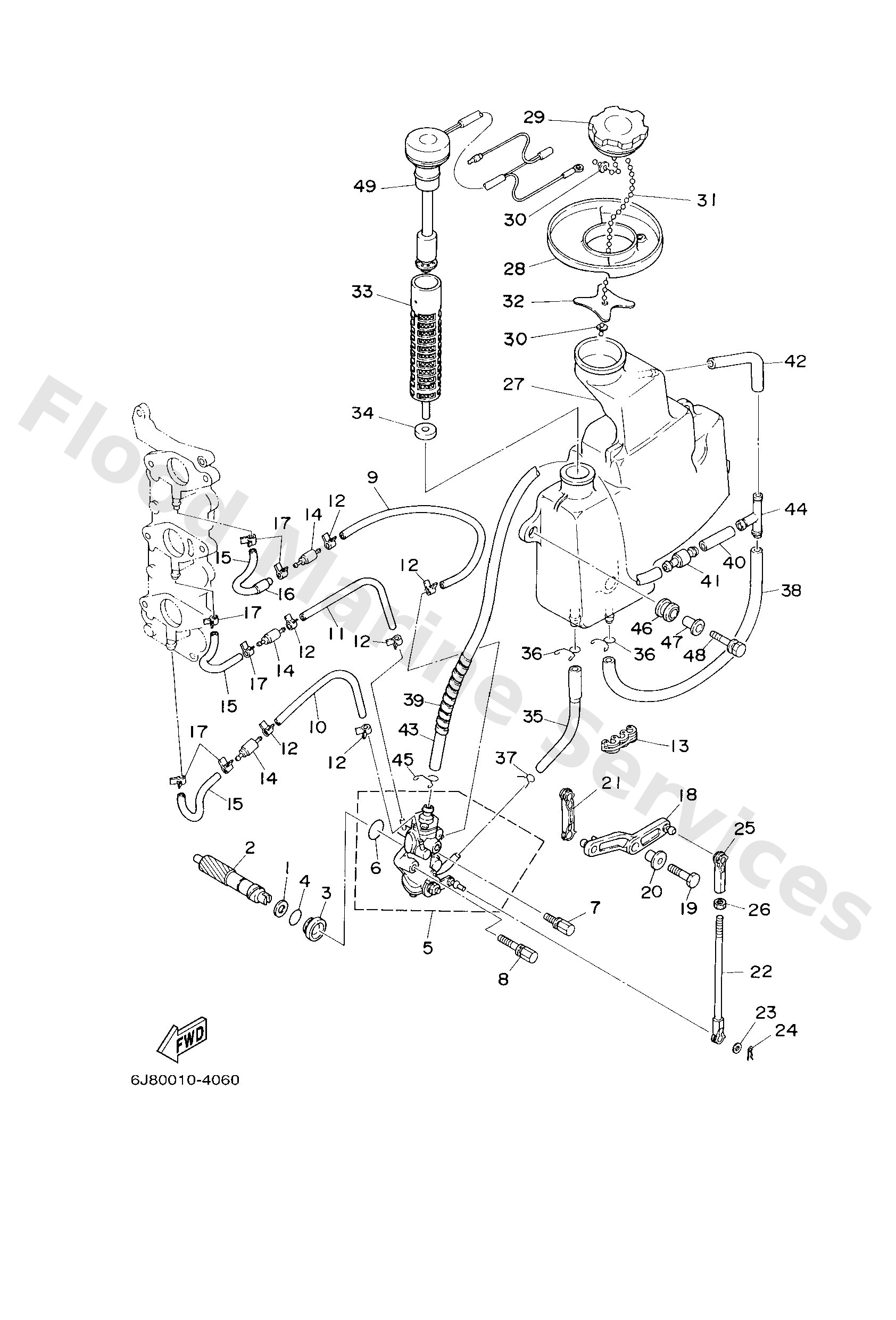

Diagram: OIL PUMP
Parts List
Reference
Description
Price
1
9020108M93
Washer, plate (6g5)
Loading…
↗
2
6J81153700
Gear, driven
Loading…
↗
3
6J81311700
Collar, distance
Loading…
↗
4
9321013M04
93210-13m04
Loading…
↗
5
6J81320001
Oil injection pump assembly
Loading…
↗
6
9321019MA7
O-ring(6r0)
Loading…
↗
7
9010905M32
Bolt
Loading…
↗
8
9010905M33
Bolt
Loading…
↗
9
9044507M08
Hose (l390)
Loading…
↗
10
9044507M32
Hose (l200)
Loading…
↗
12
9046807M02
Clip (6e5)
Loading…
↗
13
9046407M05
Clamp (6g5)
Loading…
↗
14
6E91318370
Valve check
Loading…
↗
15
9044507M04
Hose(62t)
Loading…
↗
16
9044511M08
Hose (l70)
Loading…
↗
18
6J81315500
Lever, control
Loading…
↗
19
9709506025
Bolt
Loading…
↗
20
9038706289
Collar
Loading…
↗
21
6J84123800
Joint, link
Loading…
↗
22
6J84123700
Joint, link
Loading…
↗
23
9020205088
Washer, plate (666)
Loading…
↗
24
9046805M03
Clip(6j8)
Loading…
↗
25
6824123700
Joint, link 2
Loading…
↗
26
9538005700
Nut (656)
Loading…
↗
27
6J82170711
Oil tank comp.
Loading…
↗
27
6J82170701
Oil tank comp.
Loading…
↗
28
6J82173M00
Seal 3
Loading…
↗
29
6H42177000
Oil tank cap assembly
Loading…
↗
30
6H12175700
Washer, special 1
Loading…
↗
31
6H12463300
Chain, Ball
Loading…
↗
32
6J82175800
Washer, special 2
Loading…
↗
33
6J81341100
Strainer, oil
Loading…
↗
34
6J81341400
Gasket, strainer cover
Loading…
↗
35
6J81341600
Pipe, oil 1
Loading…
↗
36
9046711M08
Clip(72x)
Loading…
↗
37
9046708004
Clip, pipe 6162435600
Loading…
↗
38
9044511M03
Hose (l360)
Loading…
↗
39
9044610M01
Tube (6e5)
Loading…
↗
40
9044511M07
Hose (l70)
Loading…
↗
41
63D2174400
Breather
Loading…
↗
42
9044511M02
Hose (l100)
Loading…
↗
43
9044511M04
Hose (l600)
Loading…
↗
44
6E52437800
Pipe, joint 3
Loading…
↗
45
9046710M04
Clip, pipe 1 (6e9)
Loading…
↗
46
6A08231700
Damper, ignition coil
Loading…
↗
47
9038706119
Collar
Loading…
↗
48
9011906M65
Bolt, with washer
Loading…
↗
49
6J88572002
Oil level gauge assembly
Loading…
↗
