70BETO (2016)
OIL PUMP

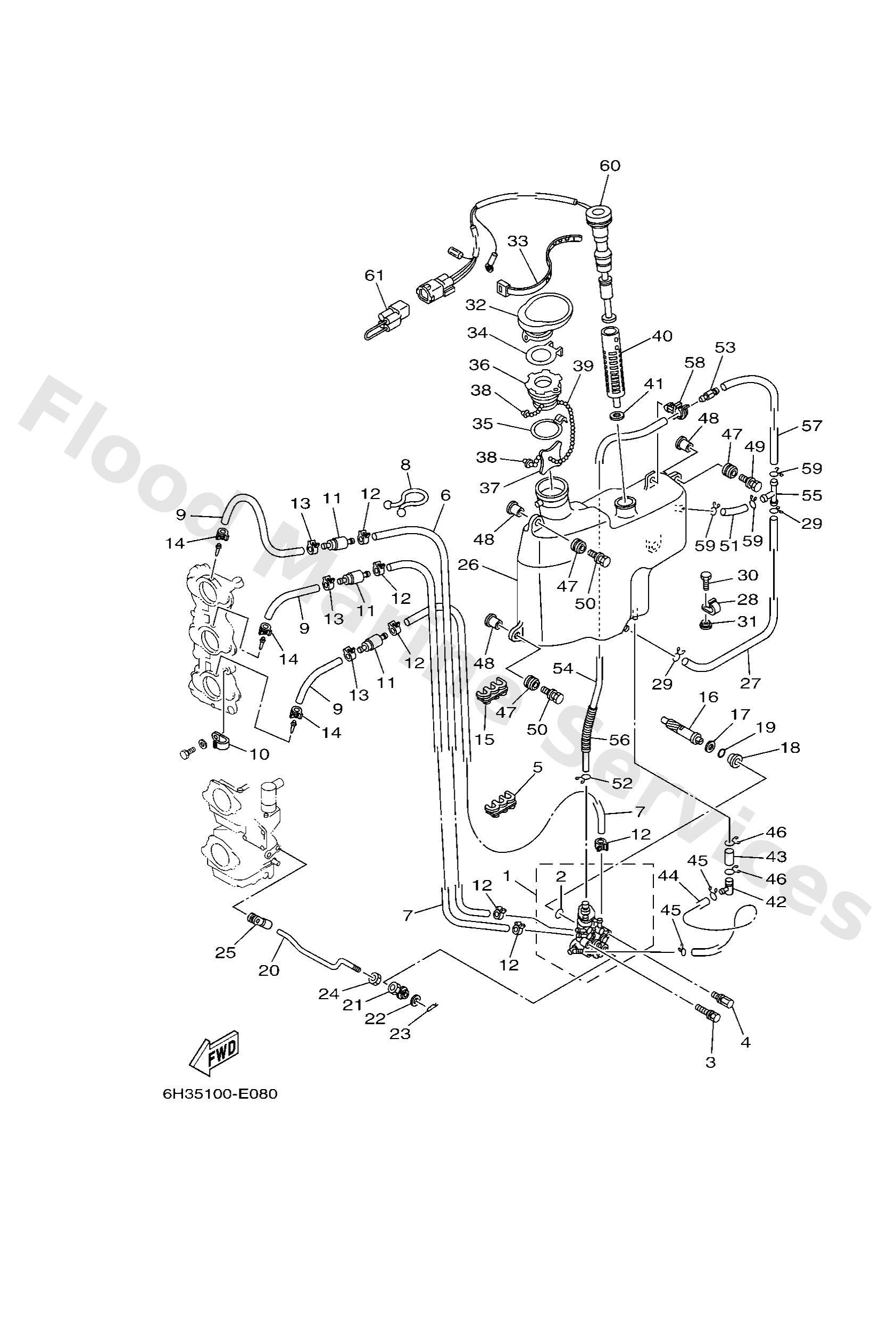

Diagram: OIL PUMP
Parts List
Reference
Description
Price
1
6H31320002
Oil injection pump assembly
Loading…
↗
2
9321019MA7
O-ring(6r0)
Loading…
↗
3
9010906M39
Bolt(6h0)
Loading…
↗
4
9010906M40
Bolt(6h0)
Loading…
↗
5
9046407M05
Clamp (6g5)
Loading…
↗
6
9044507M44
Hose (l390)
Loading…
↗
7
9044507M23
Hose (l570)
Loading…
↗
8
9046415M11
Clamp (3y2)
Loading…
↗
9
9044507M87
Hose(62t)
Loading…
↗
10
9046506M86
Clamp
Loading…
↗
11
6E91318370
Valve check
Loading…
↗
12
9046807M02
Clip (6e5)
Loading…
↗
16
6H31153701
Gear, driven
Loading…
↗
17
9020108M93
Washer, plate (6g5)
Loading…
↗
18
6H11311701
Collar, distance
Loading…
↗
19
9321013M04
93210-13m04
Loading…
↗
20
6H34124101
Rod, link
Loading…
↗
21
6H14123700
Joint, link
Loading…
↗
22
9020205088
Washer, plate (666)
Loading…
↗
23
9046805M03
Clip(6j8)
Loading…
↗
24
9538005600
Nut, hexagon (663)
Loading…
↗
25
6E94123700
Joint, link
Loading…
↗
26
6H32170706
Oil tank comp.
Loading…
↗
27
9044511M03
Hose (l360)
Loading…
↗
28
9046511M27
Clamp(6h1)
Loading…
↗
29
9046711M08
Clip(72x)
Loading…
↗
30
9709506016
Bolt, hexagon deep recess
Loading…
↗
31
9038706M31
Coller (6a0)
Loading…
↗
32
6H32175200
Tube, filler 1
Loading…
↗
33
9046513M30
Clamp
Loading…
↗
34
63D2176M00
Hook
Loading…
↗
35
63D2175R00
Hook, band
Loading…
↗
36
6H42177000
Oil tank cap assembly
Loading…
↗
37
6J82175800
Washer, special 2
Loading…
↗
38
6H12175700
Go to P/N ) PE0-OM-160022
Washer, special 1
Loading…
↗
39
6H12463300
Go to P/N ) PE0-OM-160022
Chain, Ball
Loading…
↗
40
6J81341100
Strainer, oil
Loading…
↗
41
6J81341400
Gasket, strainer cover
Loading…
↗
42
6H11343500
Nipple
Loading…
↗
43
9044508M01
Hose (l30)
Loading…
↗
44
6H12176601
Pipe, oil
Loading…
↗
45
9046708004
Clip, pipe 6162435600
Loading…
↗
46
9046712M11
Clip(6k8)
Loading…
↗
47
6A08231700
Damper, ignition coil
Loading…
↗
48
9038706119
Collar
Loading…
↗
49
9011906M65
Bolt, with washer
Loading…
↗
50
9011906M88
Bolt, with washer
Loading…
↗
51
9044511M21
Hose (l70)
Loading…
↗
52
9046710M04
Clip, pipe 1 (6e9)
Loading…
↗
53
63D2174400
Breather
Loading…
↗
54
9044511M15
Hose (l360)
Loading…
↗
55
6E52437800
Pipe, joint 3
Loading…
↗
56
9044610M01
Tube (6e5)
Loading…
↗
57
9044511M02
Hose (l100)
Loading…
↗
58
9046411M23
Clamp(6h4)
Loading…
↗
60
6H38572017
Oil level gauge assembly
Loading…
↗
61
6R582582B0
AP
Cover, wire harness
Loading…
↗
