75CETO (2002)
OIL PUMP

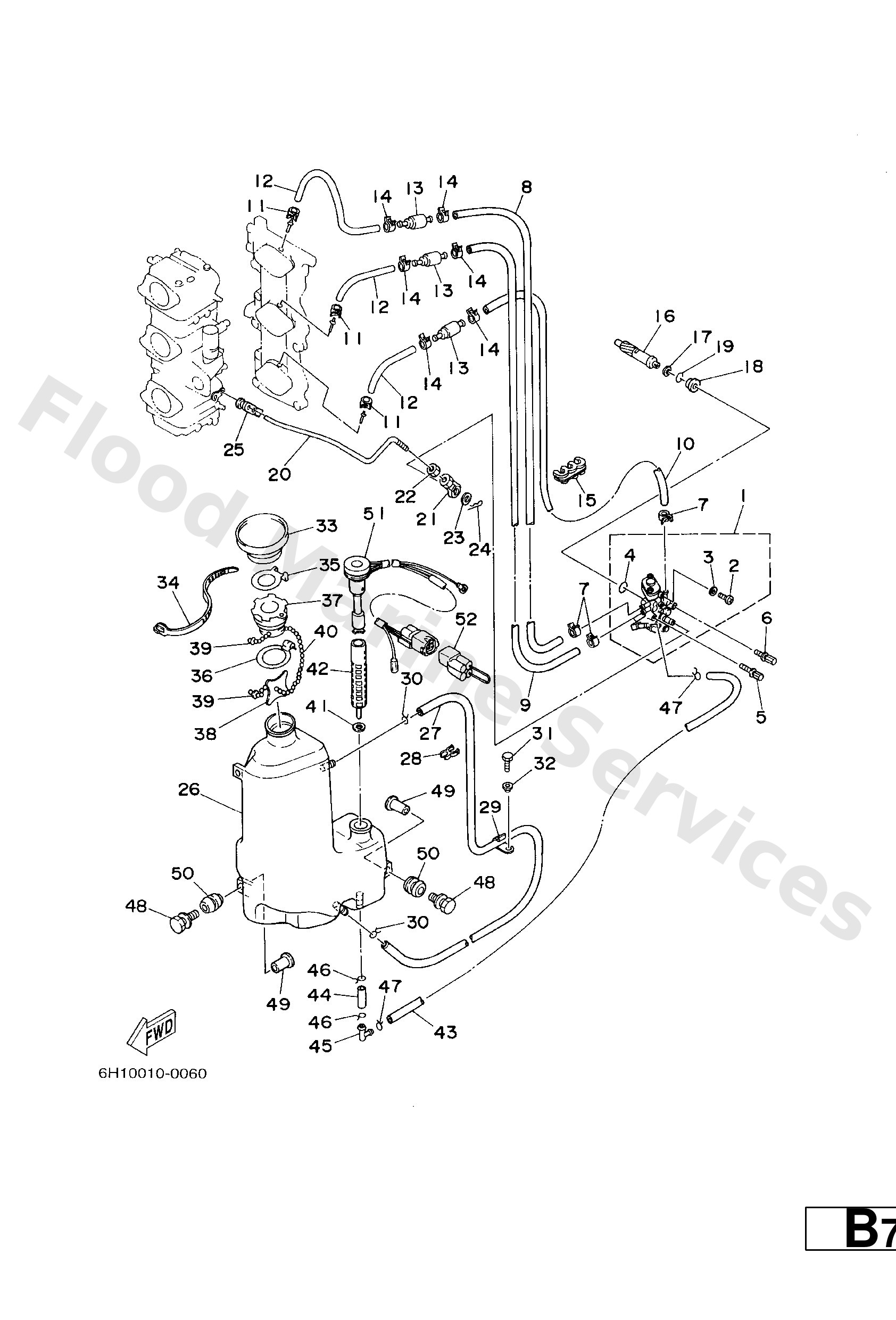

Diagram: OIL PUMP
Parts List
Reference
Description
Price
1
6H1−13200−02
Oil injection pump assembly
Loading…
↗
2
6R3−13471−00
Screw
Loading…
↗
3
6L2−13475−00
Gasket, breather bolt
Loading…
↗
4
93210−19MA7
O-ring(6r0)
Loading…
↗
5
90109−06M39
Bolt(6h0)
Loading…
↗
6
90109−06M40
Bolt(6h0)
Loading…
↗
7
90468−07M02
Clip (6e5)
Loading…
↗
8
90445−07M90
Hose (l390)
Loading…
↗
9
90445−07240
Hose (l390)
Loading…
↗
10
90445−07M44
Hose (l390)
Loading…
↗
12
90445−07M87
Hose(62t)
Loading…
↗
13
6E9−13183−70
Valve check
Loading…
↗
15
90464−07M05
Clamp (6g5)
Loading…
↗
16
6H1−11537−01
Gear, driven
Loading…
↗
17
90201−08M93
Washer, plate (6g5)
Loading…
↗
18
6H1−13117−01
Collar, distance
Loading…
↗
19
93210−13M04
93210-13m04
Loading…
↗
20
6H1−41241−02
Rod, link
Loading…
↗
21
6H1−41237−00
Joint, link
Loading…
↗
22
95380−05600
Nut, hexagon (663)
Loading…
↗
23
90202−05088
Washer, plate (666)
Loading…
↗
24
90468−05M03
Clip(6j8)
Loading…
↗
25
6E9−41237−00
Joint, link
Loading…
↗
26
6H1−21707−07
Oil tank comp.
Loading…
↗
27
90445−11M09
Hose (l600)
Loading…
↗
28
90464−11M24
Clamp(6h1)
Loading…
↗
29
90465−11M27
Clamp(6h1)
Loading…
↗
30
90467−11M08
Clip(72x)
Loading…
↗
31
97095−06016
Bolt, hexagon deep recess
Loading…
↗
32
90387−06M31
Coller (6a0)
Loading…
↗
33
6H1−21752−00
Tube, filler 1
Loading…
↗
34
90465−13M30
Clamp
Loading…
↗
35
63D−2176M−00
Hook
Loading…
↗
36
63D−2175R−00
Hook, band
Loading…
↗
37
6H4−21770−00
Oil tank cap assembly
Loading…
↗
38
6J8−21758−00
Washer, special 2
Loading…
↗
39
6H1−21757−00
Washer, special 1
Loading…
↗
40
6H1−24633−00
Chain, Ball
Loading…
↗
41
6J8−13414−00
Gasket, strainer cover
Loading…
↗
42
6H1−13411−00
Strainer, oil
Loading…
↗
43
6H1−21766−01
Pipe, oil
Loading…
↗
44
90445−08M01
Hose (l30)
Loading…
↗
45
6H1−13435−00
Nipple
Loading…
↗
46
90467−12M11
Clip(6k8)
Loading…
↗
47
90467−08004
Clip, pipe 6162435600
Loading…
↗
48
90119−06M88
Bolt, with washer
Loading…
↗
49
624−42542−00
Collar
Loading…
↗
50
6A0−82317−00
Damper, ignition coil
Loading…
↗
51
6H1−85720−15
Oil level gauge assembly
Loading…
↗
52
6R5−82582−B0
AP
Cover, wire harness
Loading…
↗
