75CETO (2003)
OIL PUMP

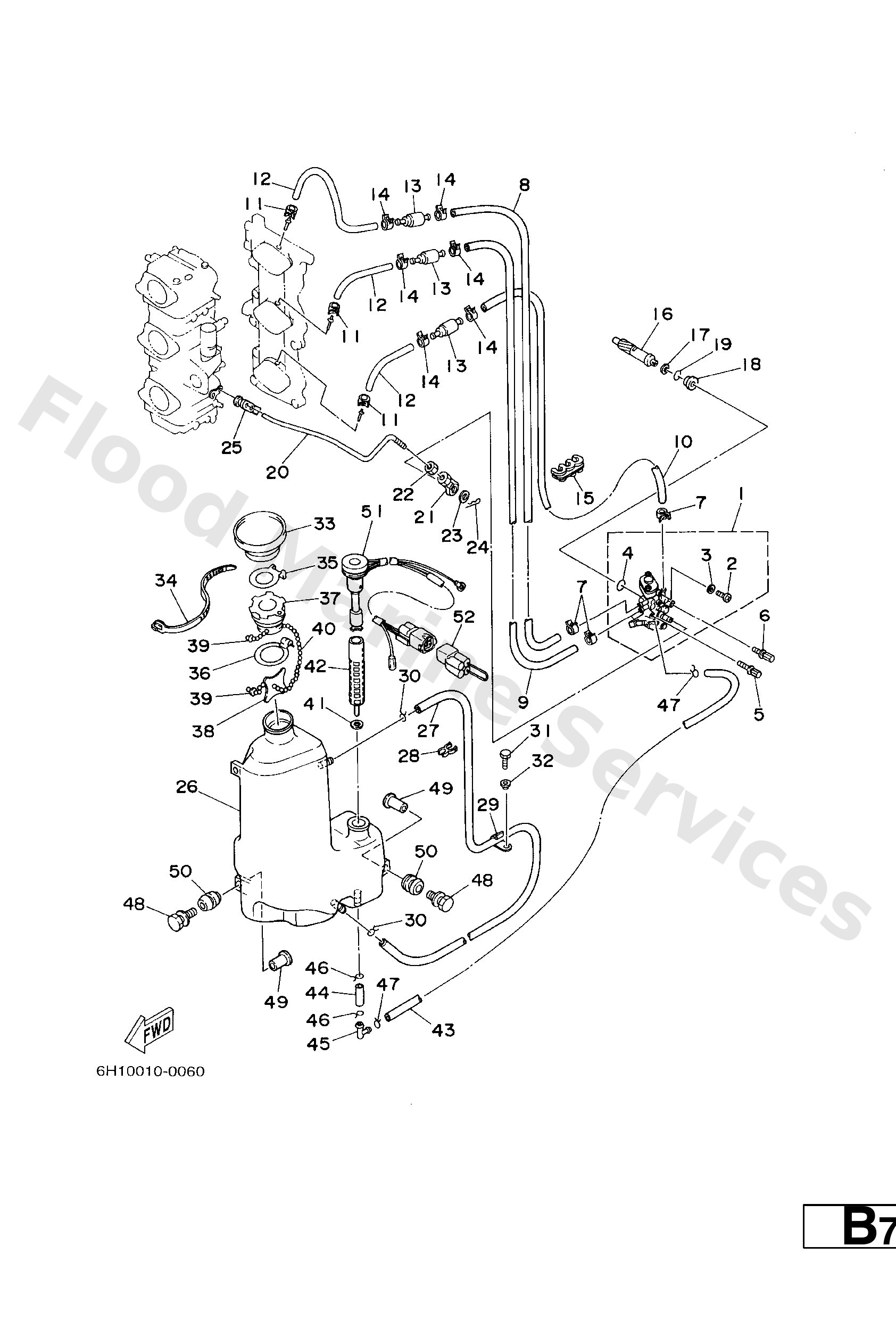

Diagram: OIL PUMP
Parts List
Reference
Description
Price
1
6H1--13200--02
Oil injection pump assembly
Loading…
↗
2
6R3--13471--00
Screw
Loading…
↗
3
6L2--13475--00
Gasket, breather bolt
Loading…
↗
4
93210--19MA7
O-ring(6r0)
Loading…
↗
5
90109--06M39
Bolt(6h0)
Loading…
↗
6
90109--06M40
Bolt(6h0)
Loading…
↗
7
90468--07M02
Clip (6e5)
Loading…
↗
8
90445--07M90
Hose (l390)
Loading…
↗
9
90445--07240
Hose (l390)
Loading…
↗
10
90445--07M44
Hose (l390)
Loading…
↗
12
90445--07M87
Hose(62t)
Loading…
↗
13
6E9--13183--70
Valve check
Loading…
↗
15
90464--07M05
Clamp (6g5)
Loading…
↗
16
6H1--11537--01
Gear, driven
Loading…
↗
17
90201--08M93
Washer, plate (6g5)
Loading…
↗
18
6H1--13117--01
Collar, distance
Loading…
↗
19
93210--13M04
93210-13m04
Loading…
↗
20
6H1--41241--02
Rod, link
Loading…
↗
21
6H1--41237--00
Joint, link
Loading…
↗
22
95380--05600
Nut, hexagon (663)
Loading…
↗
23
90202--05088
Washer, plate (666)
Loading…
↗
24
90468--05M03
Clip(6j8)
Loading…
↗
25
6E9--41237--00
Joint, link
Loading…
↗
26
6H1--21707--07
Oil tank comp.
Loading…
↗
27
90445--11M09
Hose (l600)
Loading…
↗
28
90464--11M24
Clamp(6h1)
Loading…
↗
29
90465--11M27
Clamp(6h1)
Loading…
↗
30
90467--11M08
Clip(72x)
Loading…
↗
31
97095--06016
Bolt, hexagon deep recess
Loading…
↗
32
90387--06M31
Coller (6a0)
Loading…
↗
33
6H1--21752--00
Tube, filler 1
Loading…
↗
34
90465--13M30
Clamp
Loading…
↗
35
63D--2176M--00
Hook
Loading…
↗
36
63D--2175R--00
Hook, band
Loading…
↗
37
6H4--21770--00
Oil tank cap assembly
Loading…
↗
38
6J8--21758--00
Washer, special 2
Loading…
↗
39
6H1--21757--00
Washer, special 1
Loading…
↗
40
6H1--24633--00
Chain, Ball
Loading…
↗
41
6J8--13414--00
Gasket, strainer cover
Loading…
↗
42
6H1--13411--00
Strainer, oil
Loading…
↗
43
6H1--21766--01
Pipe, oil
Loading…
↗
44
90445--08M01
Hose (l30)
Loading…
↗
45
6H1--13435--00
Nipple
Loading…
↗
46
90467--12M11
Clip(6k8)
Loading…
↗
47
90467--08004
Clip, pipe 6162435600
Loading…
↗
48
90119--06M88
Bolt, with washer
Loading…
↗
49
624--42542--00
Collar
Loading…
↗
50
6A0--82317--00
Damper, ignition coil
Loading…
↗
51
6H18572015
Oil level gauge assembly
Loading…
↗
52
6R5--82582--B0
AP
Cover, wire harness
Loading…
↗
