90AETO (2008)
OIL PUMP

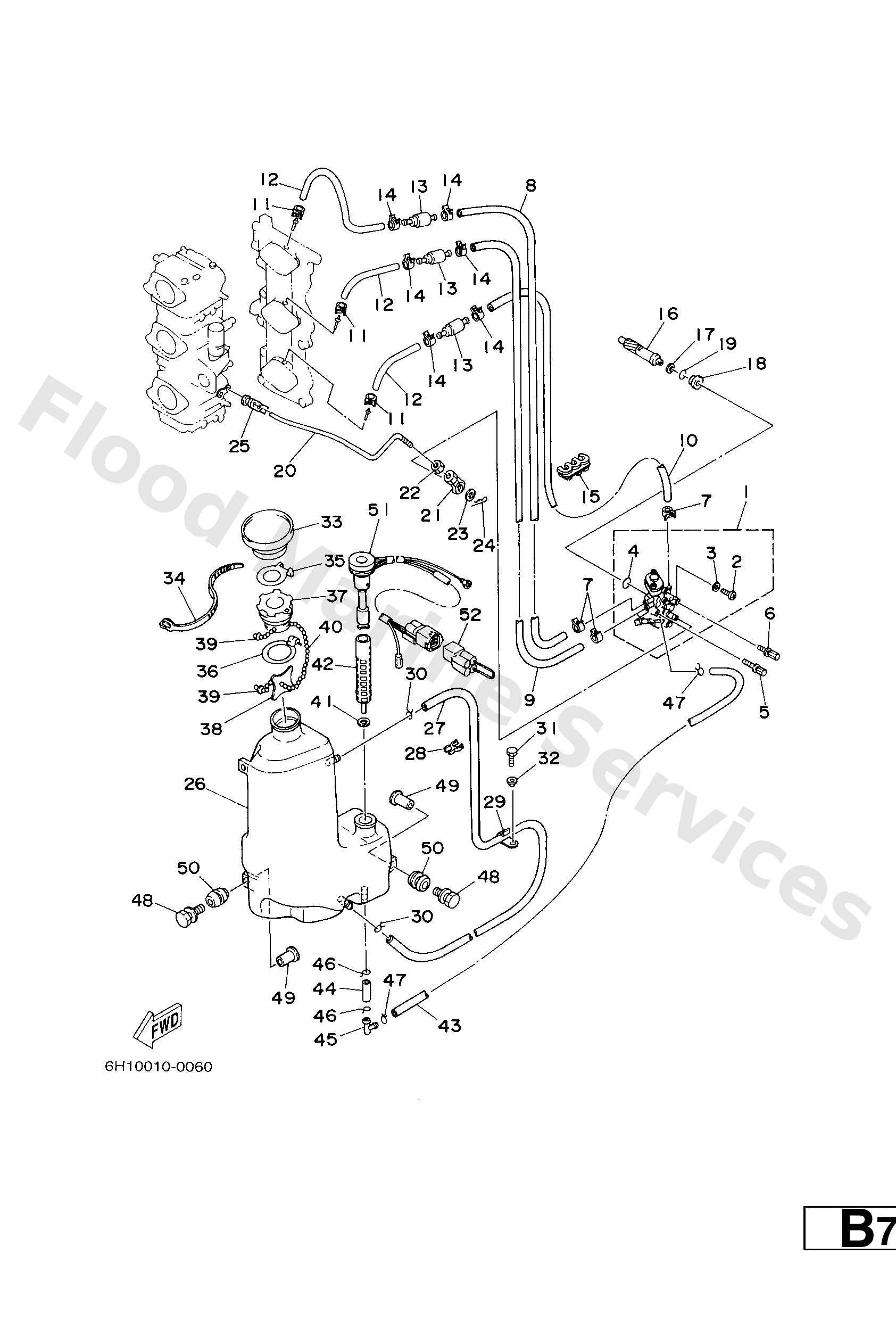

Diagram: OIL PUMP
Parts List
Reference
Description
Price
1
6H11320002
Oil injection pump assembly
Loading…
↗
2
6R31347100
Screw
Loading…
↗
3
6L21347500
Gasket, breather bolt
Loading…
↗
4
9321019MA7
O-ring(6r0)
Loading…
↗
5
9010906M39
Bolt(6h0)
Loading…
↗
6
9010906M40
Bolt(6h0)
Loading…
↗
7
9046807M02
Clip (6e5)
Loading…
↗
8
9044507M90
Hose (l390)
Loading…
↗
9
9044507240
Hose (l390)
Loading…
↗
10
9044507M44
Hose (l390)
Loading…
↗
12
9044507M87
Hose(62t)
Loading…
↗
13
6E91318370
Valve check
Loading…
↗
15
9046407M05
Clamp (6g5)
Loading…
↗
16
6H11153701
Gear, driven
Loading…
↗
17
9020108M93
Washer, plate (6g5)
Loading…
↗
18
6H11311701
Collar, distance
Loading…
↗
19
9321013M04
93210-13m04
Loading…
↗
20
6H14124102
Rod, link
Loading…
↗
21
6H14123700
Joint, link
Loading…
↗
22
9538005600
Nut, hexagon (663)
Loading…
↗
23
9020205088
Washer, plate (666)
Loading…
↗
24
9046805M03
Clip(6j8)
Loading…
↗
25
6E94123700
Joint, link
Loading…
↗
26
6H12170707
Oil tank comp.
Loading…
↗
27
9044511M09
Hose (l600)
Loading…
↗
28
9046411M24
Clamp(6h1)
Loading…
↗
29
9046511M27
Clamp(6h1)
Loading…
↗
30
9046711M08
Clip(72x)
Loading…
↗
31
9709506016
Bolt, hexagon deep recess
Loading…
↗
32
9038706M31
Coller (6a0)
Loading…
↗
33
6H12175200
Tube, filler 1
Loading…
↗
34
9046513M30
Clamp
Loading…
↗
35
63D2176M00
Hook
Loading…
↗
36
63D2175R00
Hook, band
Loading…
↗
37
6H42177000
Oil tank cap assembly
Loading…
↗
38
6J82175800
Washer, special 2
Loading…
↗
39
6H12175700
Washer, special 1
Loading…
↗
40
6H12463300
Chain, Ball
Loading…
↗
41
6J81341400
Gasket, strainer cover
Loading…
↗
42
6H11341100
Strainer, oil
Loading…
↗
43
6H12176601
Pipe, oil
Loading…
↗
44
9044508M01
Hose (l30)
Loading…
↗
45
6H11343500
Nipple
Loading…
↗
46
9046712M11
Clip(6k8)
Loading…
↗
47
9046708004
Clip, pipe 6162435600
Loading…
↗
48
9011906M88
Bolt, with washer
Loading…
↗
49
9038706119
Collar
Loading…
↗
50
6A08231700
Damper, ignition coil
Loading…
↗
51
6H18572015
Oil level gauge assembly
Loading…
↗
52
6R582582B0
AP
Cover, wire harness
