F40AET (2002)
OIL PUMP

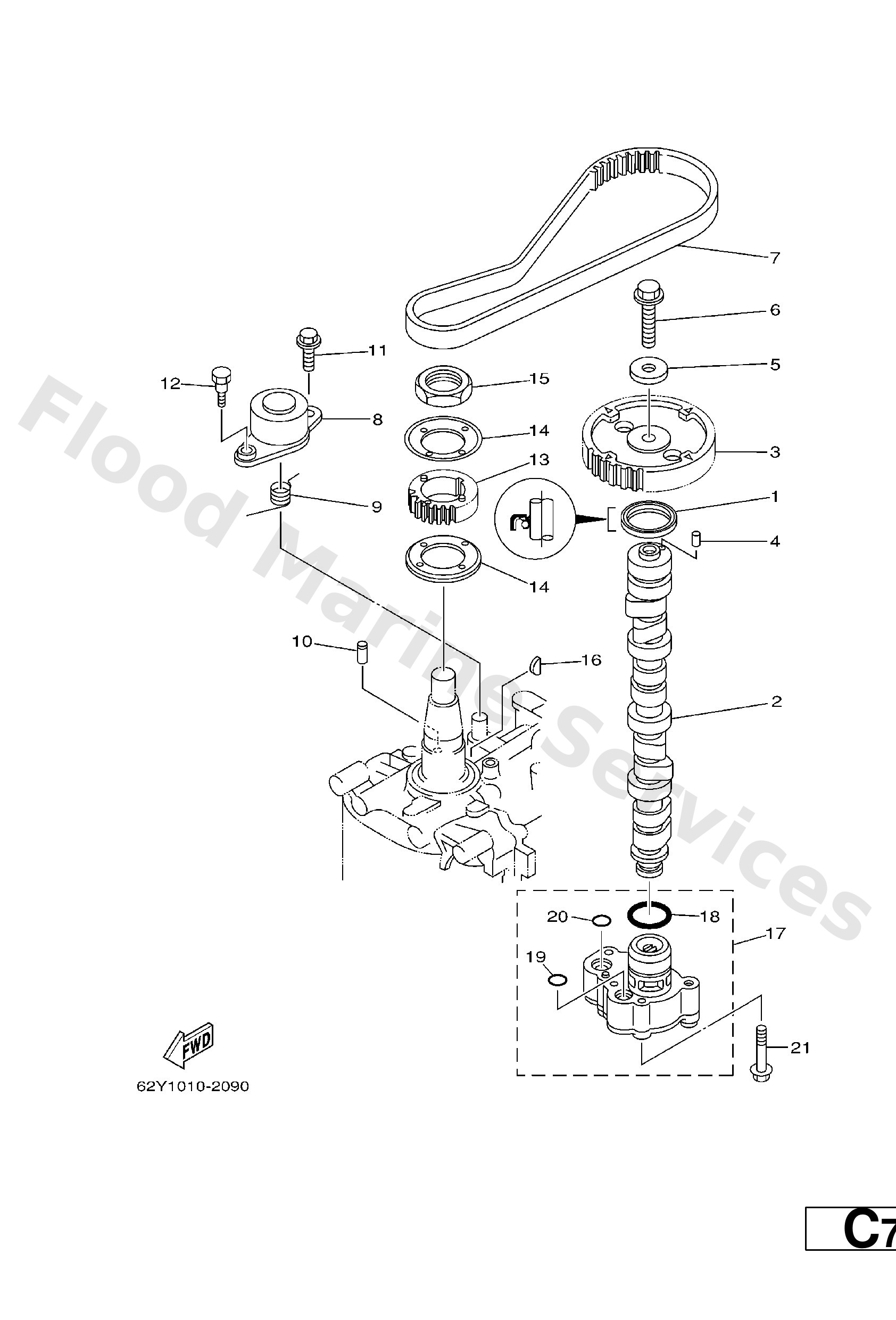

Diagram: OIL PUMP
Parts List
Reference
Description
Price
1
9310237M40
Oil seal(62y)
Loading…
↗
2
62Y1217100
Camshaft 1
Loading…
↗
3
62Y1153710
Gear, driven
Loading…
↗
4
9360514143
Pin (2h7)
Loading…
↗
5
9020110M06
Washer, plate(62y)
Loading…
↗
6
9589510040
Bolt, flange deep recess
Loading…
↗
7
62Y4624100
Belt
Loading…
↗
8
62Y1159010
Tensioner assembly
Loading…
↗
9
9050820018
Spring, torsion
Loading…
↗
10
9024907M29
Pin(62y)
Loading…
↗
11
9589508020
Bolt, flange deep recess
Loading…
↗
12
9010906M64
Bolt(62y)
Loading…
↗
13
62Y1153610
Gear, drive
Loading…
↗
14
62Y1155700
Washer 1
Loading…
↗
15
9017035M32
Nut
Loading…
↗
16
9028004M06
Key, woodruff(6a1)
Loading…
↗
17
62Y1330000
Oil Pump assembly
Loading…
↗
18
9321033MH2
O-ring(62y)
Loading…
↗
19
9321012MG9
O-ring(62y)
Loading…
↗
20
9321014515
O-ring (11h)
Loading…
↗
21
9011906MA6
Bolt, with washer
Loading…
↗
