F40BED (2009)
OIL PUMP

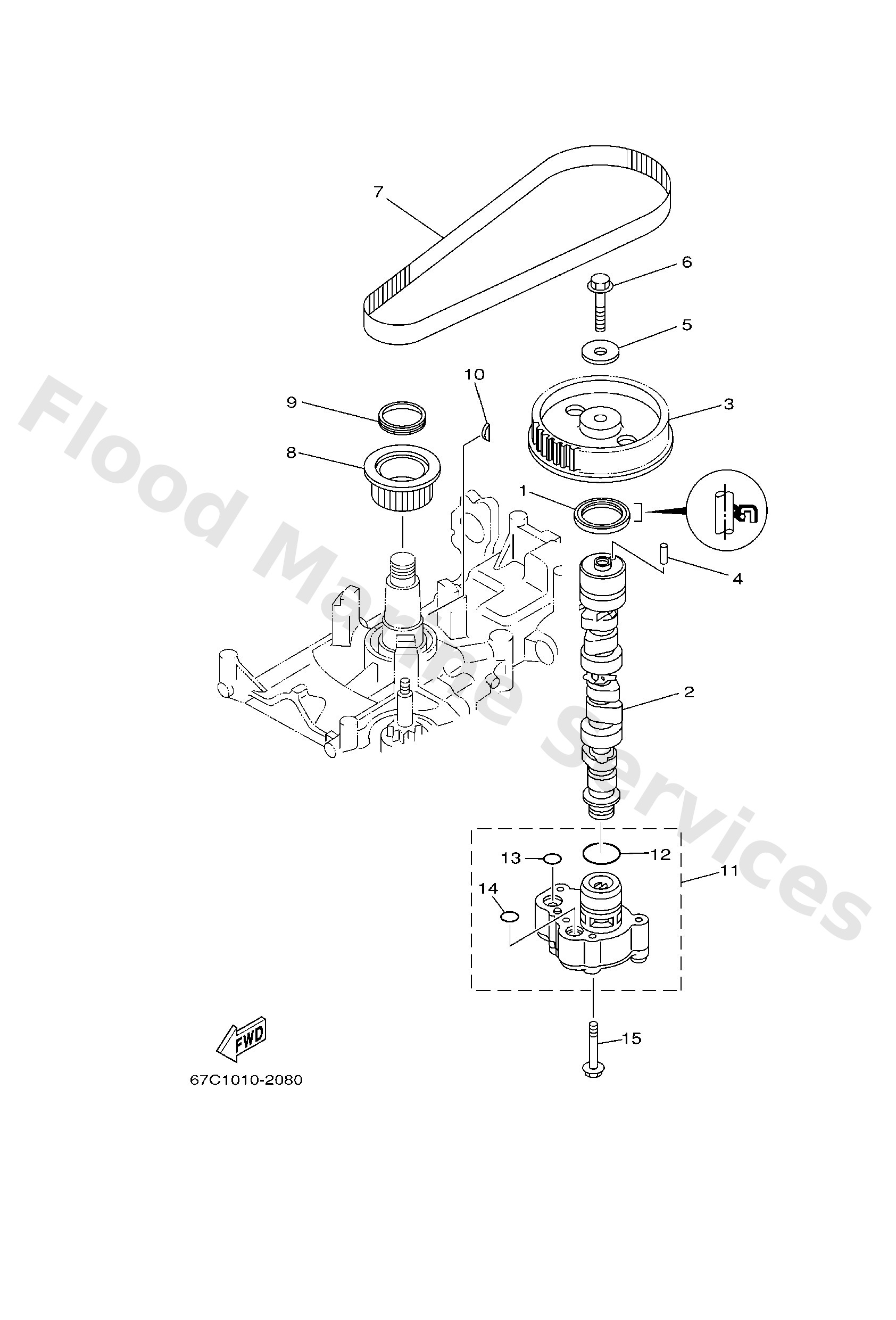

Diagram: OIL PUMP
Parts List
Reference
Description
Price
1
9310237M40
Oil seal(62y)
Loading…
↗
2
67C1217100
Camshaft 1
Loading…
↗
2
67C1217012
Camshaft assembly 1
Loading…
↗
3
67C1153701
8 – 3
Loading…
↗
4
9360514143
Pin (2h7)
Loading…
↗
5
9020110M06
Washer, plate(62y)
Loading…
↗
6
9589510040
Bolt, flange deep recess
Loading…
↗
7
65W4624100
Belt
Loading…
↗
8
65W1153610
Gear, drive
Loading…
↗
9
65W1147600
Spring
Loading…
↗
10
9028004M06
Key, woodruff(6a1)
Loading…
↗
11
69W1330000
Oil pump assembly
Loading…
↗
12
9321033MH2
O-ring(62y)
Loading…
↗
13
9321012MG9
O-ring(62y)
Loading…
↗
14
9321014515
O-ring (11h)
Loading…
↗
15
9011906025
Bolt, with washer
Loading…
↗
