F60CET (2011)
OIL PUMP

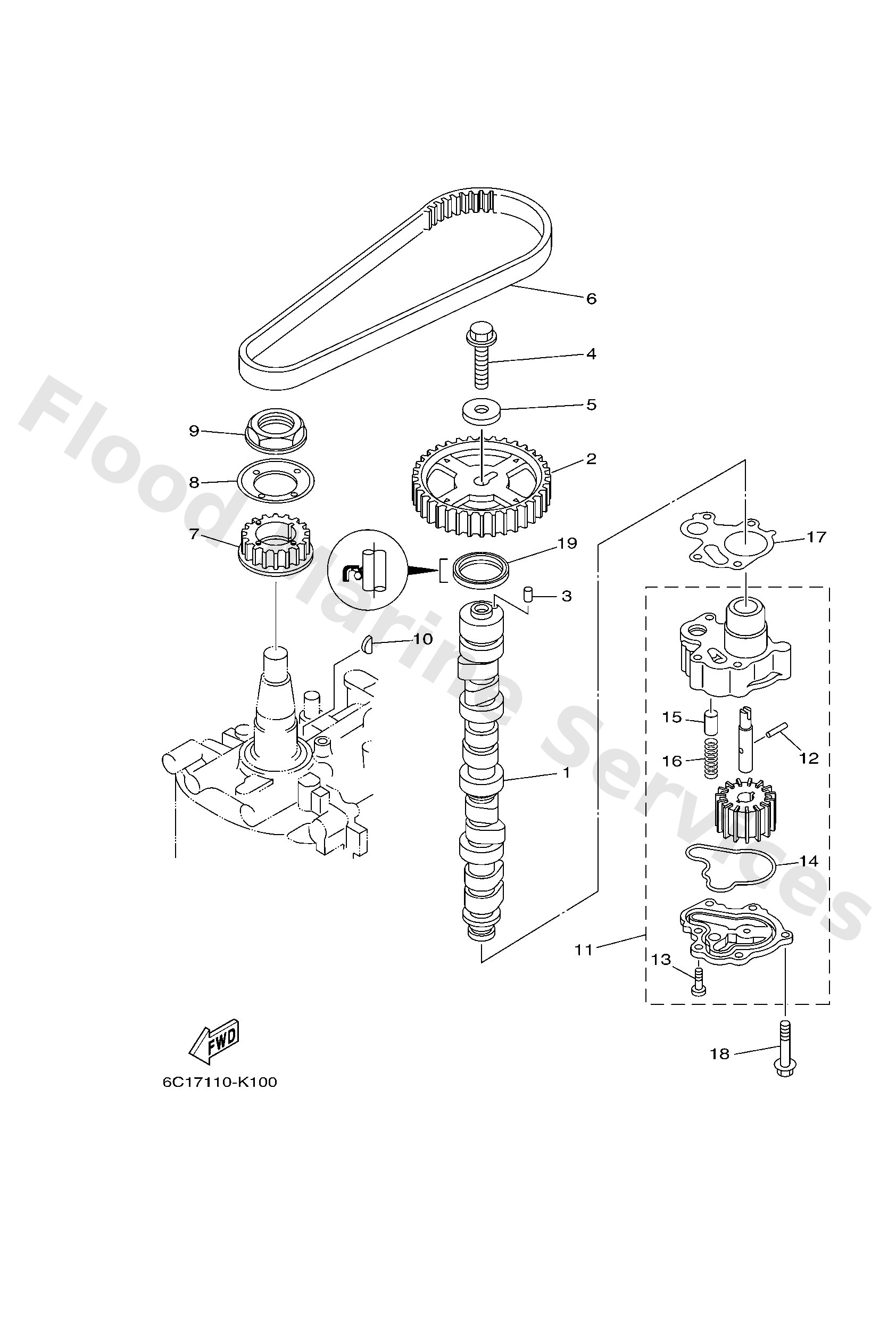

Diagram: OIL PUMP
Parts List
Reference
Description
Price
1
6C51217100
Camshaft 1
Loading…
↗
2
6C51153700
Gear, driven
Loading…
↗
3
9360517002
Pin, dowel
Loading…
↗
4
9581710035
Bolt, washer based (2h9)
Loading…
↗
5
9020110144
Washer plate 810176580000
Loading…
↗
6
6C54624100
Belt
Loading…
↗
7
6C51153600
Gear, drive
Loading…
↗
8
62Y1155700
Washer 1
Loading…
↗
9
9017935001
Nut
Loading…
↗
10
9028003M01
Key woodruff 146115450000
Loading…
↗
11
6C51330000
Oil pump assembly
Loading…
↗
12
9360317070
Pin,dowel
Loading…
↗
13
9858006016
Screw pan head
Loading…
↗
14
6C51314200
Gasket
Loading…
↗
15
6G81157700
-
Loading…
↗
16
905016C500
Spring, Compression
Loading…
↗
17
6C51332900
Gasket, pump cover
Loading…
↗
18
9011906025
Bolt, with washer
Loading…
↗
19
9310237M40
Oil seal(62y)
Loading…
↗
