F6AMH (2009)
OIL PUMP

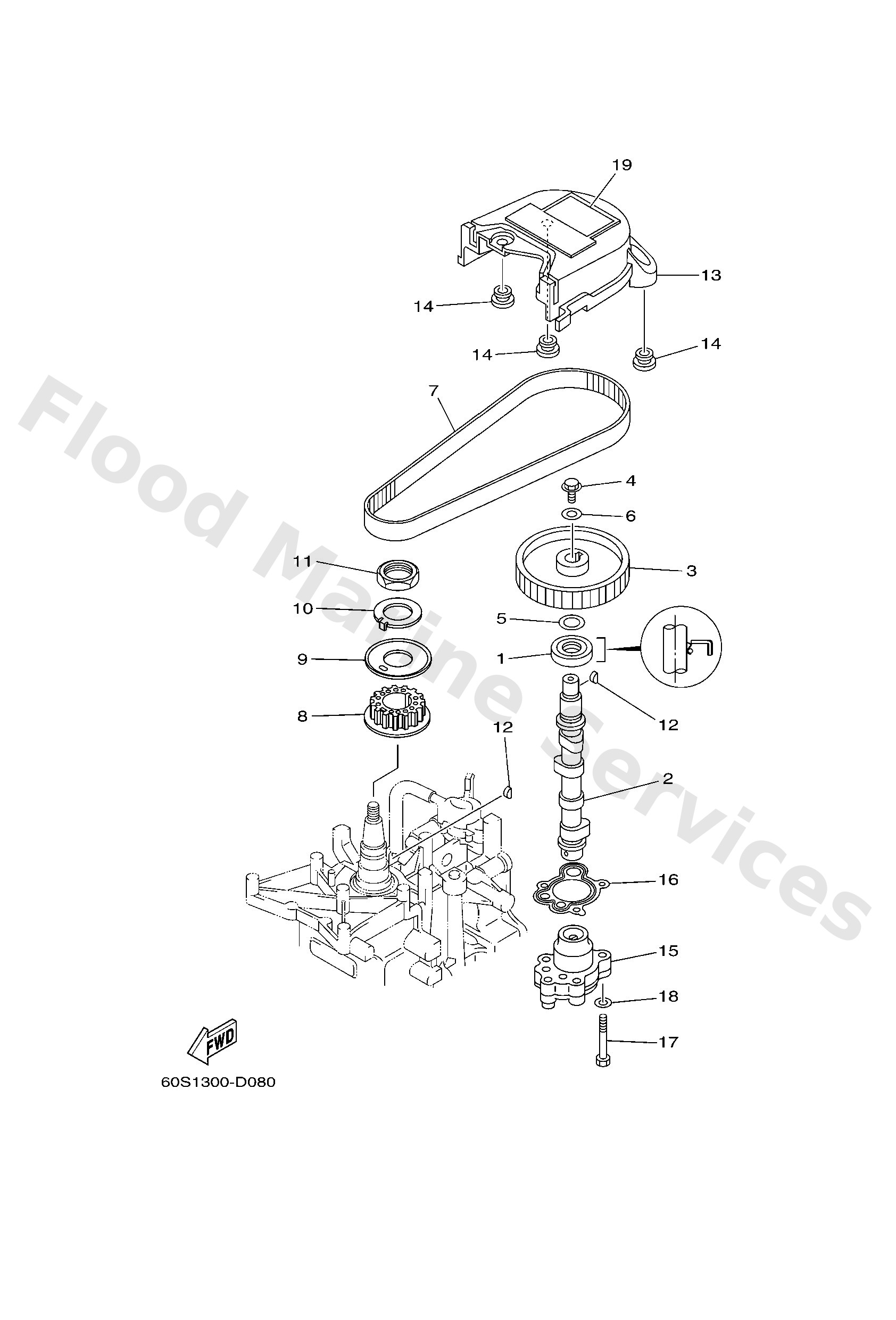

Diagram: OIL PUMP
Parts List
Reference
Description
Price
1
9310218M21
Oil seal (6g8)
Loading…
↗
2
60RE217100
Camshaft
Loading…
↗
3
60RE15370094
Gear, driven
Loading…
↗
4
9010506M14
Bolt (6e0)
Loading…
↗
5
9020113201
Washer 6474283300
Loading…
↗
6
9020106M94
Washer (6g8)
Loading…
↗
7
60RG624100
Belt
Loading…
↗
8
60RE153600
Gear, drive
Loading…
↗
9
68T1155700
Washer 1
Loading…
↗
10
6G81158701
Washer, lock
Loading…
↗
11
9017024M09
Nut (6g8)
Loading…
↗
12
9028003M01
Key woodruff 146115450000
Loading…
↗
13
60RG629700
Cover, dust
Loading…
↗
14
9048010627
Grommet
Loading…
↗
15
68T1330000
Oil pump assembly
Loading…
↗
16
68T1332900
Gasket, pump cover
Loading…
↗
17
9709506030
Bolt(jf7)
Loading…
↗
18
9299506600
Washer, plain (646)
Loading…
↗
19
60RE213860
Mark, Caution
Loading…
↗
