F8FMH (2022)
OIL PUMP

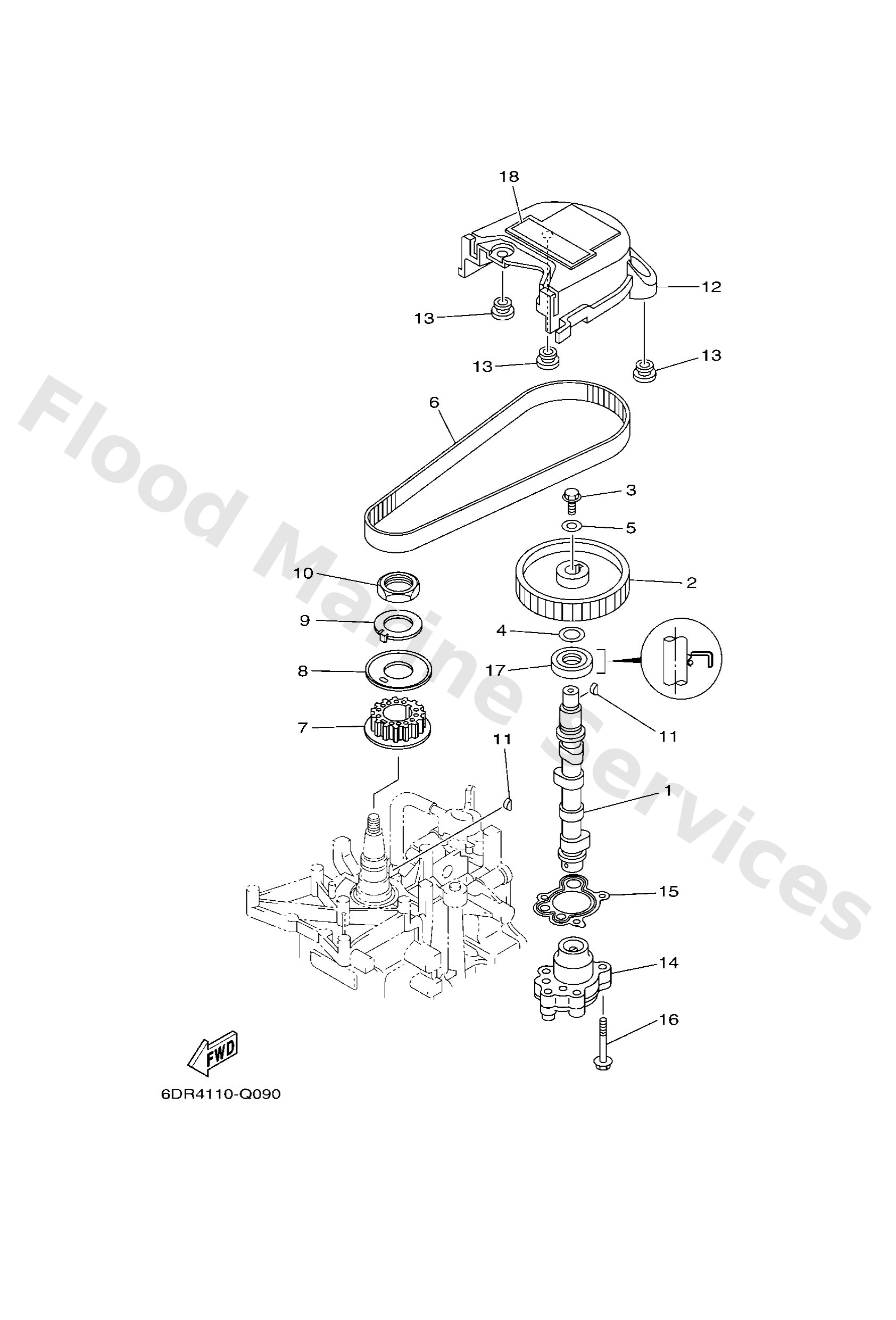

Diagram: OIL PUMP
Parts List
Reference
Description
Price
1
68T1217101
Camshaft 1
Loading…
↗
2
66M1153701
Gear, driven
Loading…
↗
3
9010506M14
Bolt (6e0)
Loading…
↗
4
9020113201
Washer 6474283300
Loading…
↗
5
9020106M94
Washer (6g8)
Loading…
↗
6
68T4624100
Belt
Loading…
↗
7
68T1153600
Gear, drive
Loading…
↗
8
68T1155700
Washer 1
Loading…
↗
9
6G81158701
Washer, lock
Loading…
↗
10
9017024M09
Nut (6g8)
Loading…
↗
11
9028003M01
Key woodruff 146115450000
Loading…
↗
12
6AU4629700
Cover, dust
Loading…
↗
13
9048010627
Grommet
Loading…
↗
14
68T1330000
Oil pump assembly
Loading…
↗
15
68T1332900
Gasket, pump cover
Loading…
↗
16
97E9506530
Bolt, hexagon w/w deep recess
Loading…
↗
17
9310218M21
Oil seal (6g8)
Loading…
↗
18
6AU1343761
Mark, caution
Loading…
↗
