FT25BET (2003)
OIL PUMP

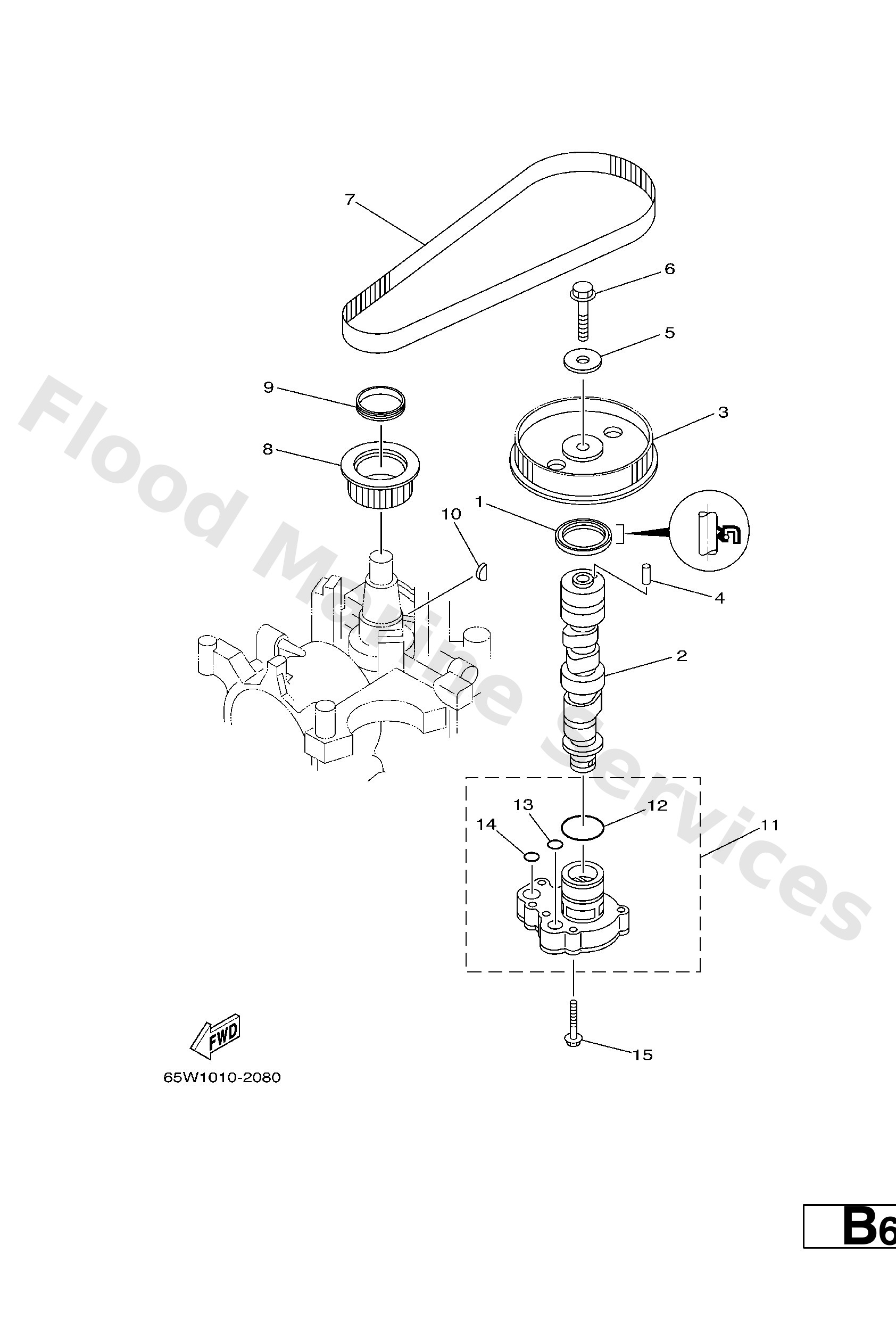

Diagram: OIL PUMP
Parts List
Reference
Description
Price
1
93102−37M40
Oil seal(62y)
Loading…
↗
2
65W−12171−00
Camshaft 1
Loading…
↗
3
65W−11537−01
Gear, driven
Loading…
↗
4
93605−14143
Pin (2h7)
Loading…
↗
5
90201−10M06
Washer, plate(62y)
Loading…
↗
6
95895−10040
Bolt, flange deep recess
Loading…
↗
7
65W−46241−00
Belt
Loading…
↗
8
65W−11536−10
Gear, drive
Loading…
↗
9
65W−11476−00
Spring
Loading…
↗
10
90280−04M06
Key, woodruff(6a1)
Loading…
↗
11
65W−13300−00
Oil pump assembly
Loading…
↗
12
93210−33MH2
O-ring(62y)
Loading…
↗
13
93210−12MG9
O-ring(62y)
Loading…
↗
14
93210−14515
O-ring (11h)
Loading…
↗
15
90119−06MA6
Bolt, with washer
Loading…
↗
