FT60BET (2003)
OIL PUMP

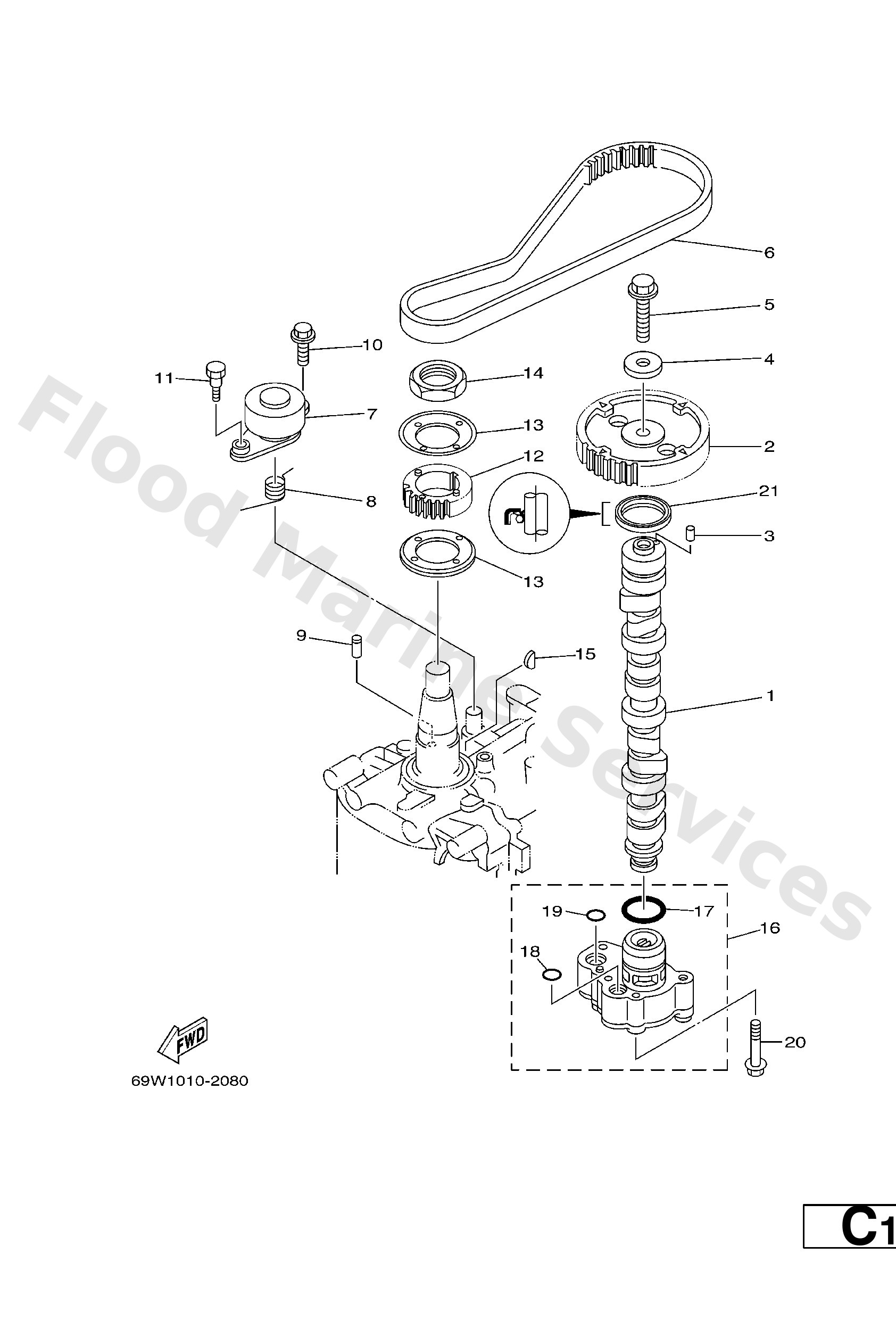

Diagram: OIL PUMP
Parts List
Reference
Description
Price
1
62Y−12171−00
Camshaft 1
Loading…
↗
2
62Y−11537−10
Gear, driven
Loading…
↗
3
93605−14143
Pin (2h7)
Loading…
↗
4
90201−10M06
Washer, plate(62y)
Loading…
↗
5
95895−10040
Bolt, flange deep recess
Loading…
↗
6
62Y−46241−00
Belt
Loading…
↗
7
62Y−11590−10
Tensioner assembly
Loading…
↗
8
90508−20018
Spring, torsion
Loading…
↗
9
90249−07M29
Pin(62y)
Loading…
↗
10
95895−08020
Bolt, flange deep recess
Loading…
↗
11
90109−06M64
Bolt(62y)
Loading…
↗
12
62Y−11536−10
Gear, drive
Loading…
↗
13
62Y−11557−00
Washer 1
Loading…
↗
14
90170−35M32
Nut
Loading…
↗
15
90280−04M06
Key, woodruff(6a1)
Loading…
↗
16
69W−13300−00
Oil pump assembly
Loading…
↗
17
93210−33MH2
O-ring(62y)
Loading…
↗
18
93210−12MG9
O-ring(62y)
Loading…
↗
19
93210−14515
O-ring (11h)
Loading…
↗
20
90119−06025
Bolt, with washer
Loading…
↗
21
93102−37M40
Oil seal(62y)
Loading…
↗
