FT60BET (2006)
OIL PUMP

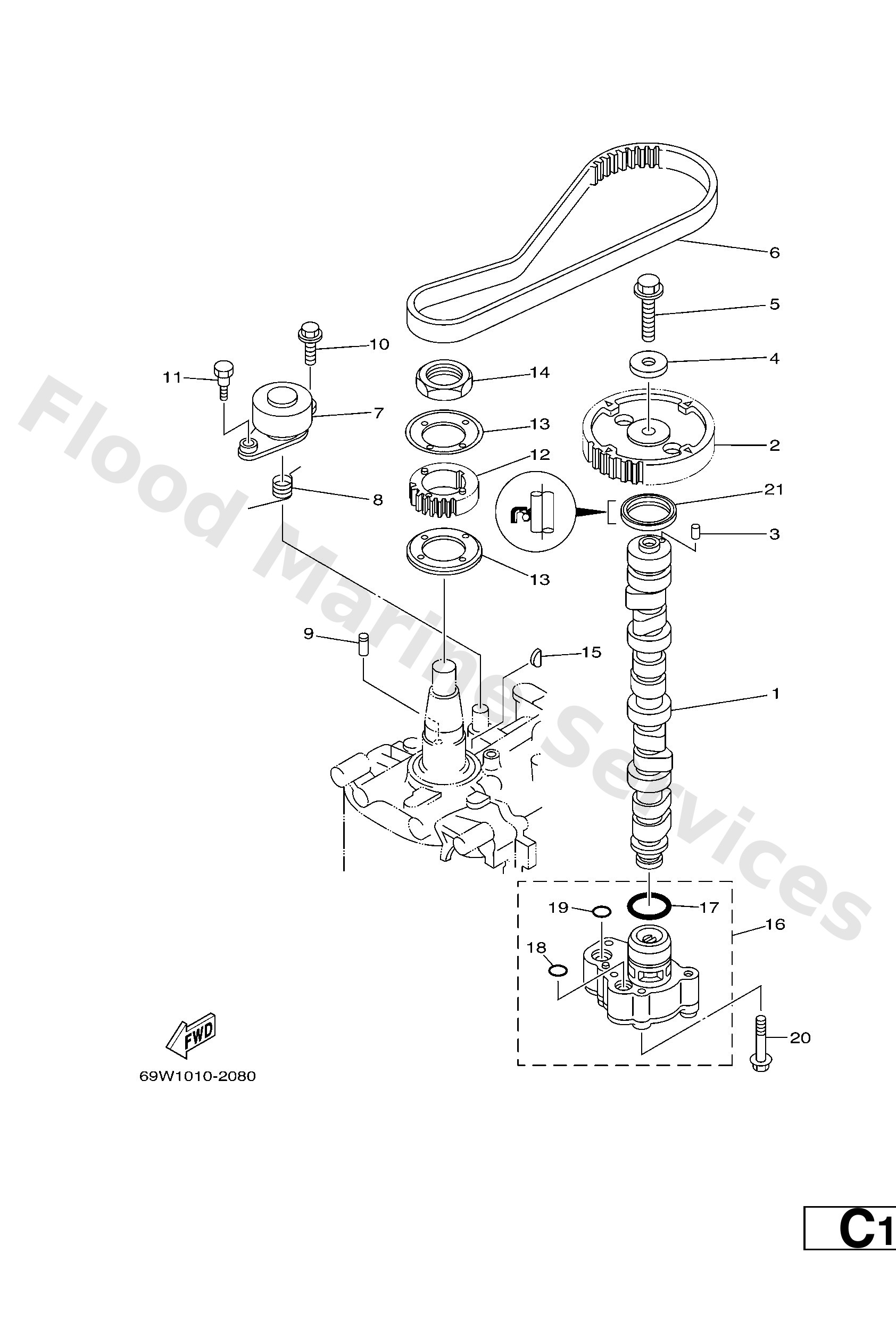

Diagram: OIL PUMP
Parts List
Reference
Description
Price
1
62Y1217100
Camshaft 1
Loading…
↗
2
62Y1153710
Gear, driven
Loading…
↗
3
9360514143
Pin (2h7)
Loading…
↗
4
9020110M06
Washer, plate(62y)
Loading…
↗
5
9589510040
Bolt, flange deep recess
Loading…
↗
6
62Y4624100
Belt
Loading…
↗
7
62Y1159010
Tensioner assembly
Loading…
↗
8
9050820018
Spring, torsion
Loading…
↗
9
9024907M29
Pin(62y)
Loading…
↗
10
9589508020
Bolt, flange deep recess
Loading…
↗
11
9010906M64
Bolt(62y)
Loading…
↗
12
62Y1153610
Gear, drive
Loading…
↗
13
62Y1155700
Washer 1
Loading…
↗
14
9017035008
Nut
Loading…
↗
15
9028004M06
Key, woodruff(6a1)
Loading…
↗
16
69W1330000
Oil pump assembly
Loading…
↗
17
9321033MH2
O-ring(62y)
Loading…
↗
18
9321012MG9
O-ring(62y)
Loading…
↗
19
9321014515
O-ring (11h)
Loading…
↗
20
9011906025
Bolt, with washer
Loading…
↗
21
9310237M40
Oil seal(62y)
Loading…
↗
