FT8DMH (2003)
OIL PUMP

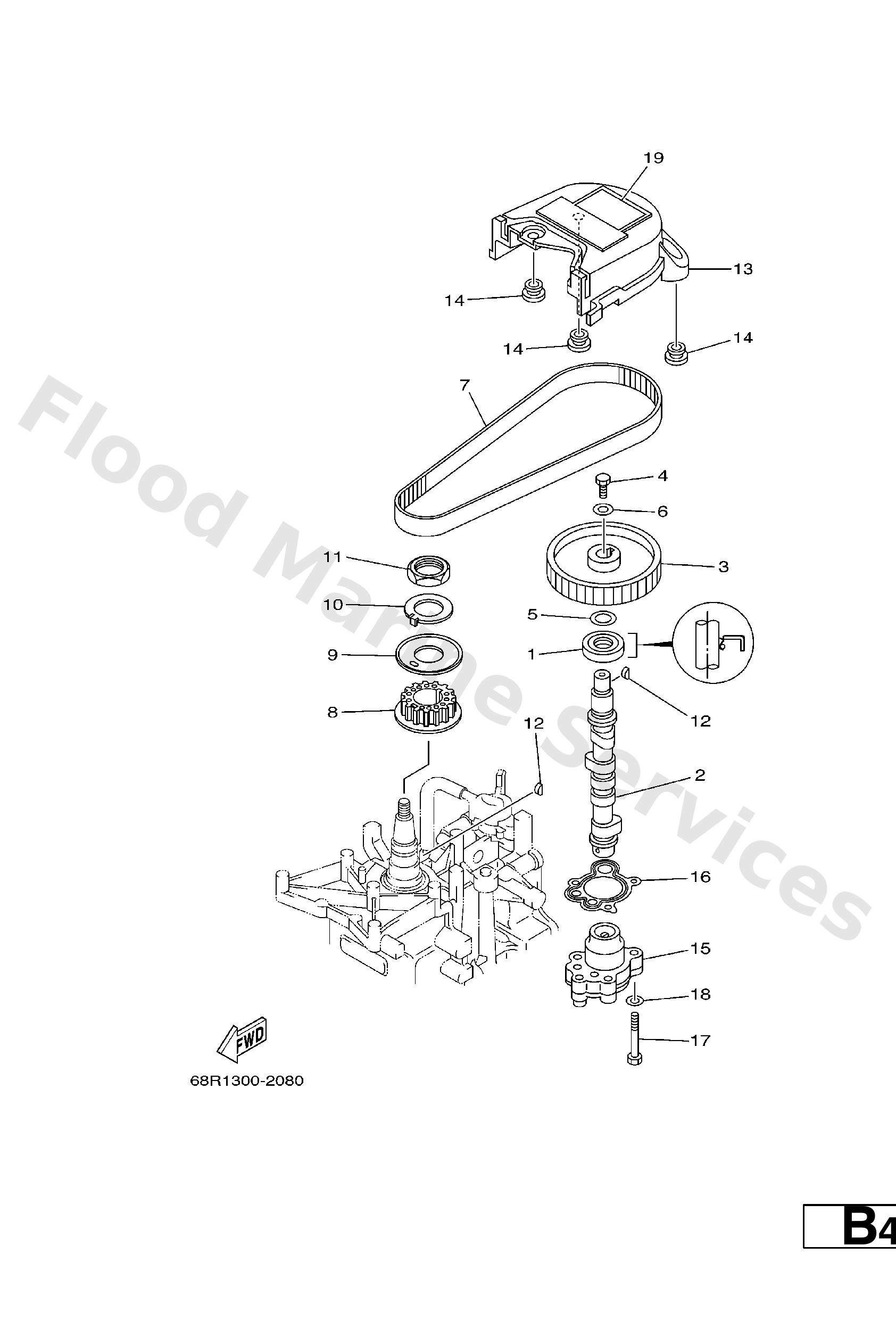

Diagram: OIL PUMP
Parts List
Reference
Description
Price
1
93102−18M21
Oil seal (6g8)
Loading…
↗
2
68T−12171−00
Camshaft 1
Loading…
↗
3
66M−11537−00−94
Gear, driven
Loading…
↗
4
97013−06016
Bolt, hexagon deep recess
Loading…
↗
5
90201−13201
Washer 6474283300
Loading…
↗
6
90201−06M94
Washer (6g8)
Loading…
↗
7
68T−46241−00
Belt
Loading…
↗
8
68T−11536−00
Gear, drive
Loading…
↗
9
68T−11557−00
Washer 1
Loading…
↗
10
6G8−11587−01
Washer, lock
Loading…
↗
11
90170−24M09
Nut (6g8)
Loading…
↗
12
90280−03M01
Key woodruff 146115450000
Loading…
↗
13
68T−46297−00
Cover, dust
Loading…
↗
14
90480−10627
Grommet
Loading…
↗
15
68T−13300−00
Oil pump assembly
Loading…
↗
16
68T−13329−00
Gasket, pump cover
Loading…
↗
17
97095−06030
Bolt(jf7)
Loading…
↗
18
92995−06600
Washer, plain (646)
Loading…
↗
19
6G9−12138−60
Mark, Caution
Loading…
↗
