L200FETO (2003)
OIL PUMP

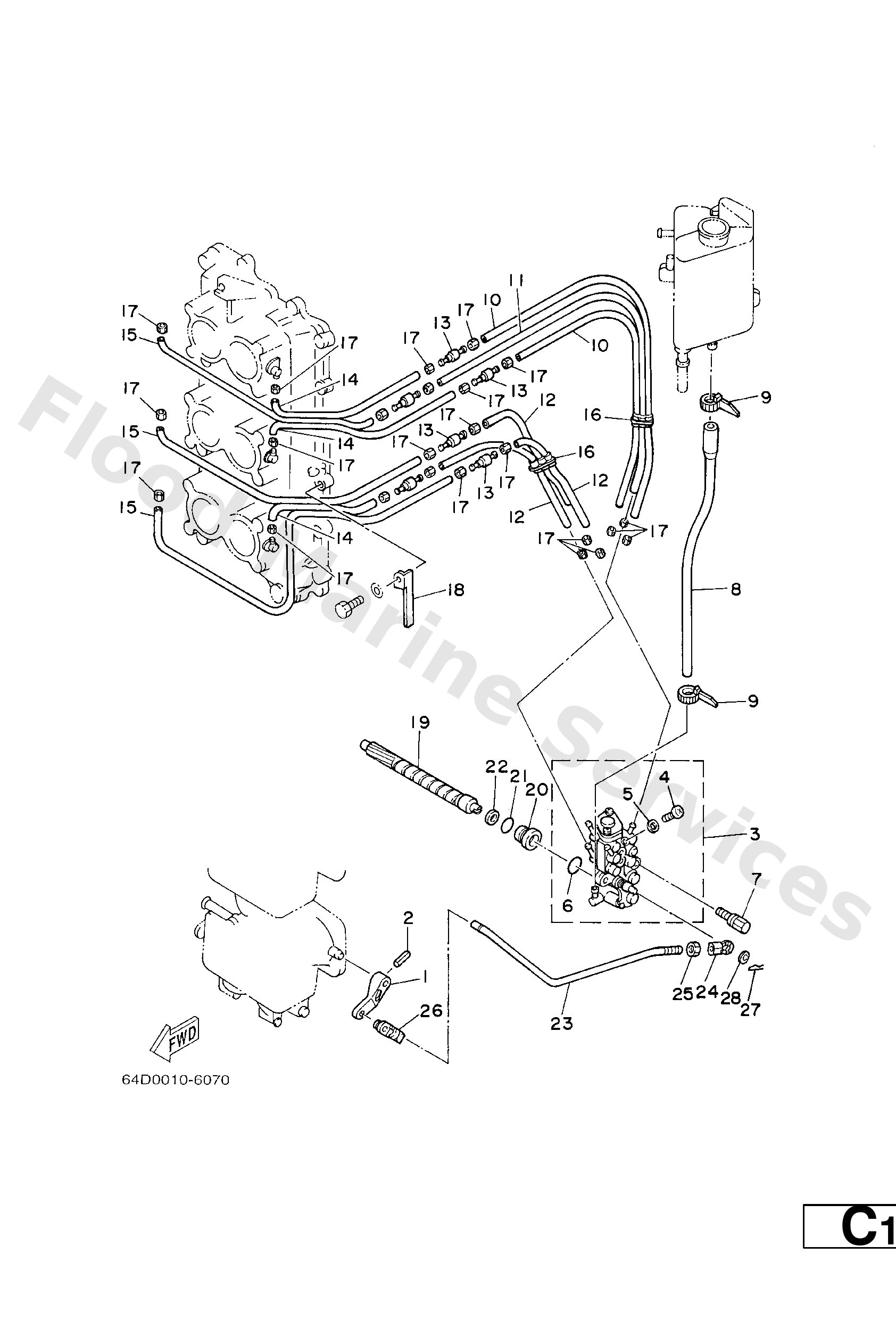

Diagram: OIL PUMP
Parts List
Reference
Description
Price
1
6E5−14276−01
Lever
Loading…
↗
2
91690−30016
Pin, spring
Loading…
↗
3
6R4−13200−00
Oil injection pump assembly
Loading…
↗
3
6R5−13200−10
Oil injection pump assembly
Loading…
↗
4
6R3−13471−00
Screw
Loading…
↗
5
6L2−13475−00
Gasket, breather bolt
Loading…
↗
6
93210−19MA7
O-ring(6r0)
Loading…
↗
7
90109−06M40
Bolt(6h0)
Loading…
↗
8
6R3−13416−00
Pipe, oil 1
Loading…
↗
9
90465−11M10
Clamp
Loading…
↗
10
90445−07M72
Hose (l390)
Loading…
↗
11
90445−07M89
Hose (l390)
Loading…
↗
12
90445−07M83
Hose (l200)
Loading…
↗
13
6R3−13183−10
Valve, check
Loading…
↗
14
90445−07M87
Hose(62t)
Loading…
↗
15
90445−07M96
Hose(62t)
Loading…
↗
16
90464−07M05
Clamp (6g5)
Loading…
↗
17
90468−07M02
Clip (6e5)
Loading…
↗
18
90465−10M91
Clamp
Loading…
↗
19
6R3−11537−00
Gear, driven
Loading…
↗
20
6R3−13117−00
Collar, distance
Loading…
↗
21
93210−13M04
93210-13m04
Loading…
↗
22
90202−08M44
Washer, plate(6r3)
Loading…
↗
23
6R3−41241−00
Rod, link
Loading…
↗
24
6H1−41237−00
Joint, link
Loading…
↗
25
95380−05600
Nut, hexagon (663)
Loading…
↗
26
6R5−41237−00
Joint, link
Loading…
↗
27
90468−05M03
Clip(6j8)
Loading…
↗
28
90202−05088
Washer, plate (666)
Loading…
↗
