L250AETO (2002)
OIL PUMP

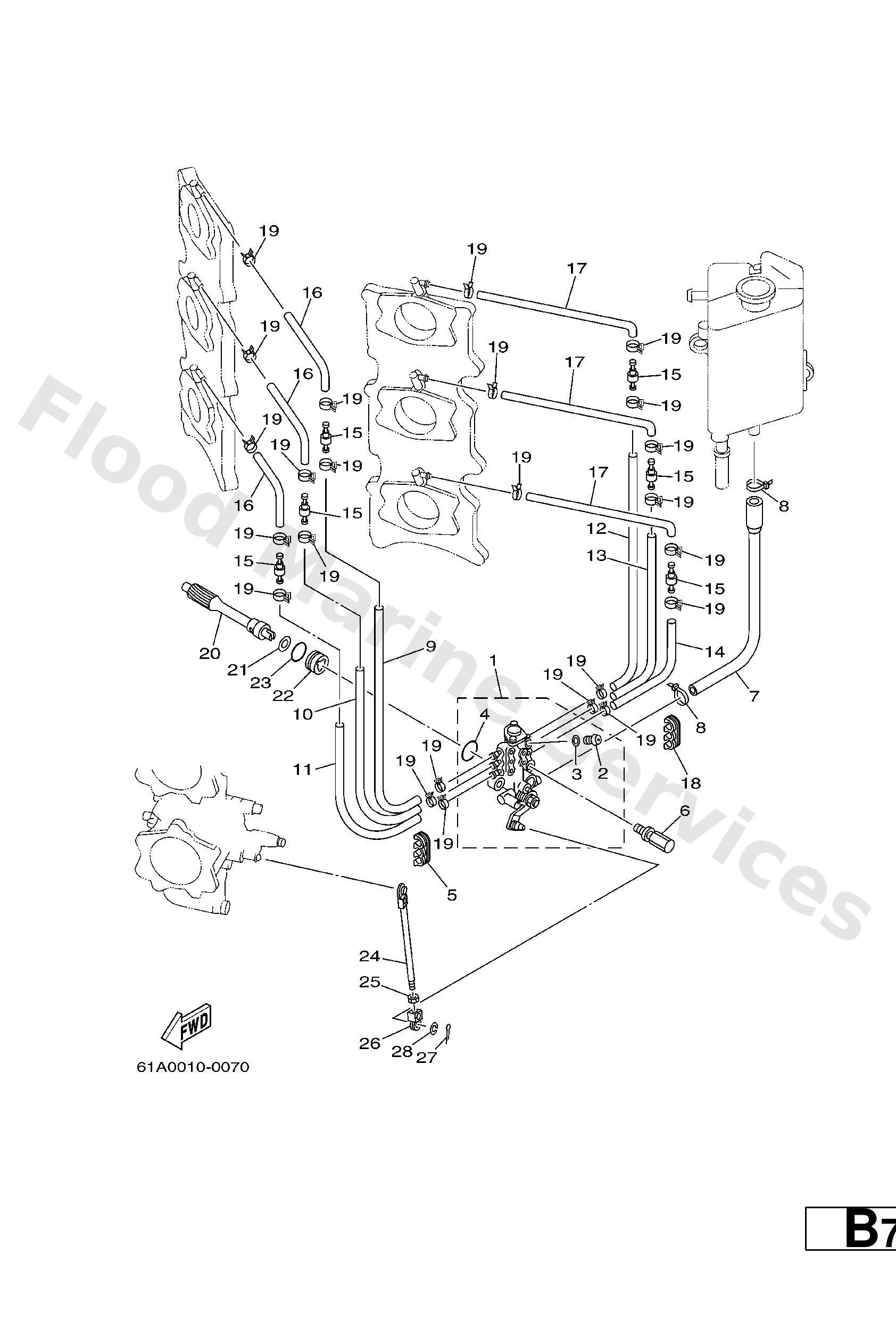

Diagram: OIL PUMP
Parts List
Reference
Description
Price
1
62J−13200−00
Oil Injection Pump assembly
Loading…
↗
2
6R3−13471−00
Screw
Loading…
↗
3
6L2−13475−00
Gasket, breather bolt
Loading…
↗
4
93210−19M82
O-ring(6j8)
Loading…
↗
5
90464−07M05
Clamp (6g5)
Loading…
↗
6
90109−06M40
Bolt(6h0)
Loading…
↗
7
61A−13416−00
Pipe, Oil 1
Loading…
↗
8
90465−11M10
Clamp
Loading…
↗
9
90445−07M77
Hose (l390)
Loading…
↗
10
90445−07M72
Hose (l390)
Loading…
↗
11
90445−07196
Hose (l200)
Loading…
↗
15
6R3−13183−10
Valve, check
Loading…
↗
16
90445−07M87
Hose(62t)
Loading…
↗
17
90445−07M07
Hose(62t)
Loading…
↗
19
90468−07M02
Clip (6e5)
Loading…
↗
20
61A−11537−00
Gear, driven
Loading…
↗
21
90201−09M01
Washer, plate(61b)
Loading…
↗
22
61A−13117−00
Collar, distance
Loading…
↗
23
93210−18MA9
O-ring(61a)
Loading…
↗
24
61A−41237−00
Joint, link
Loading…
↗
25
95380−05600
Nut, hexagon (663)
Loading…
↗
26
6H1−41237−00
Joint, link
Loading…
↗
27
91490−12012
Pin, cotter (6g8)
Loading…
↗
28
90202−05088
Washer, plate (666)
Loading…
↗
