L250BETO (2003)
OIL PUMP

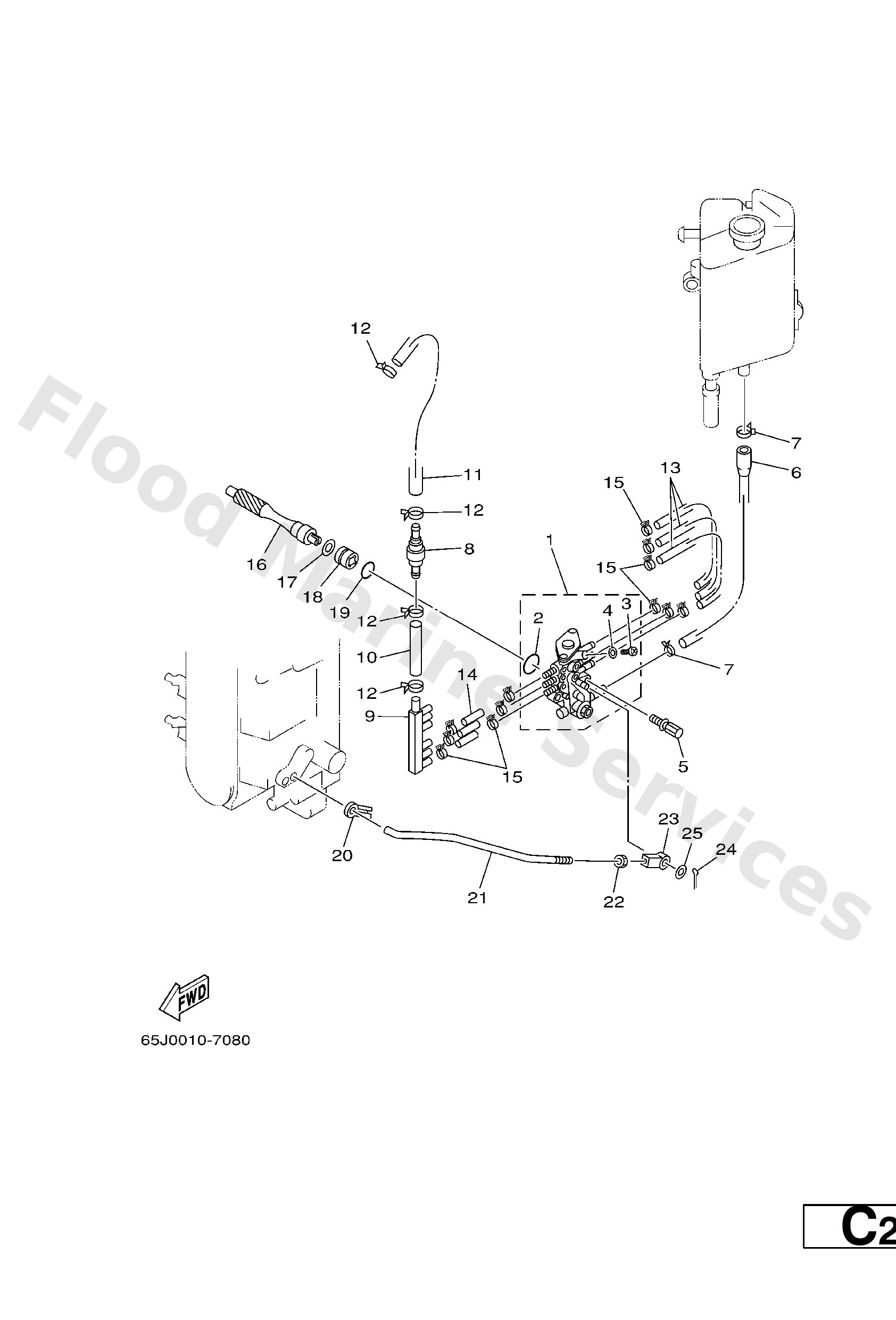

Diagram: OIL PUMP
Parts List
Reference
Description
Price
1
65L−13200−00
Oil injection pump assembly
Loading…
↗
2
93210−19M82
O-ring(6j8)
Loading…
↗
3
6R3−13471−00
Screw
Loading…
↗
4
6L2−13475−00
Gasket, breather bolt
Loading…
↗
5
90109−06M40
Bolt(6h0)
Loading…
↗
6
61A−13416−00
Pipe, Oil 1
Loading…
↗
7
90465−11M10
Clamp
Loading…
↗
8
65L−13183−00
Valve, check
Loading…
↗
9
65L−24378−00
Pipe, joint 4
Loading…
↗
10
90445−09220
Hose (l1500)
Loading…
↗
11
90446−09M69
Hose(65j)
Loading…
↗
13
90445−07M02
Hose (l200)
Loading…
↗
14
90445−07M03
Hose (l200)
Loading…
↗
15
90468−07M02
Clip (6e5)
Loading…
↗
16
61A−11537−00
Gear, driven
Loading…
↗
17
90201−09M01
Washer, plate(61b)
Loading…
↗
18
61A−13117−00
Collar, distance
Loading…
↗
19
93210−18MA9
O-ring(61a)
Loading…
↗
20
6R5−41237−00
Joint, link
Loading…
↗
21
65L−41241−00
Rod, Link
Loading…
↗
22
95380−05600
Nut, hexagon (663)
Loading…
↗
23
6H1−41237−00
Joint, link
Loading…
↗
24
91490−12012
Pin, cotter (6g8)
Loading…
↗
25
90202−05088
Washer, plate (666)
Loading…
↗
