ME730TIL (2006)
OIL PUMP

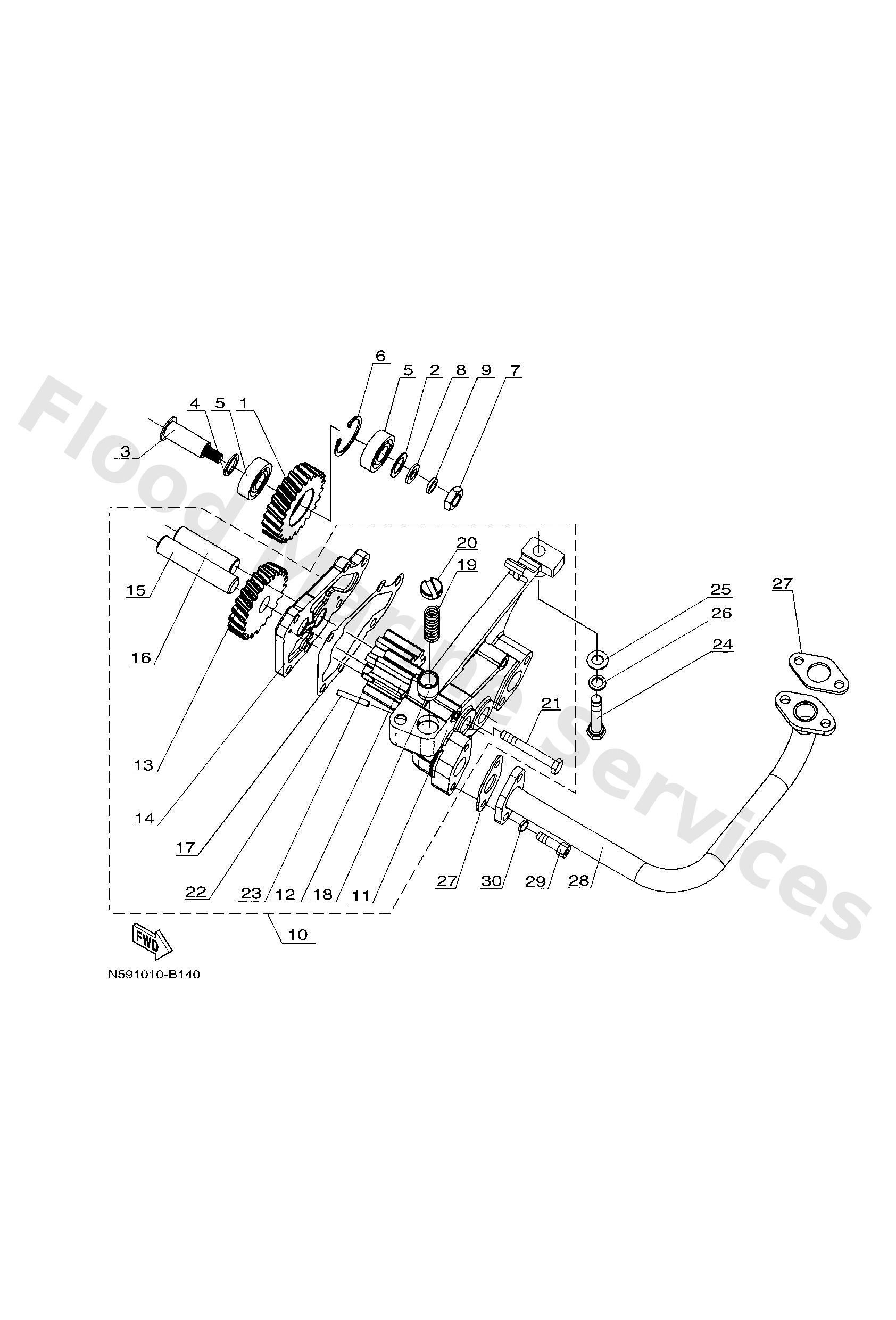

Diagram: OIL PUMP
Parts List
Reference
Description
Price
1
N5913179Y0
14- 1
Loading…
↗
2
N5911588Y0
Spacer
Loading…
↗
3
N5913314Y0
14- 3
Loading…
↗
4
N5912265Y0
Washer, Idle Gear
Loading…
↗
5
N5915693Y0
14- 5
Loading…
↗
6
N5915744Y0
5- 4
Loading…
↗
7
N5914439Y0
Nut M10Xp1.0
Loading…
↗
8
N5913177Y0
19- 4
Loading…
↗
9
N5914559Y0
Washer, Spring
Loading…
↗
10
N5913100Y0
Oil Pump assembly
Loading…
↗
11
N5913193Y0
14- 11
Loading…
↗
12
N5913324Y0
14- 12
Loading…
↗
13
N5913154Y0
Oil Pump Gear
Loading…
↗
14
N5913141Y0
Oil Pump Cover
Loading…
↗
15
N591357EY0
Oil Pump Drive Gear Shaft
Loading…
↗
16
N5913922Y0
Oil Pump Driven Gear Shaft
Loading…
↗
17
N5913116Y0
Gasket, Pump Case
Loading…
↗
18
N5925916Y0
Plug
Loading…
↗
19
N5913469Y0
Sprg.
Loading…
↗
20
N5915645Y0
Plate
Loading…
↗
21
N5915482Y0
Bolt M8X60
Loading…
↗
22
N5915727Y0
14- 22
Loading…
↗
23
N5915728Y0
14- 23
Loading…
↗
24
N5921532Y0
Bolt M10X50 T=10.9
Loading…
↗
27
N591356700
Gasket
Loading…
↗
28
N5915112Y0
Oil Pipe Comp. 1
Loading…
↗
29
N595236NY0
Bolt, Special 3 M8X25
Loading…
↗
30
N5914558Y0
Washer, Spring
Loading…
↗
