XF375NSA (2018)
OIL PUMP

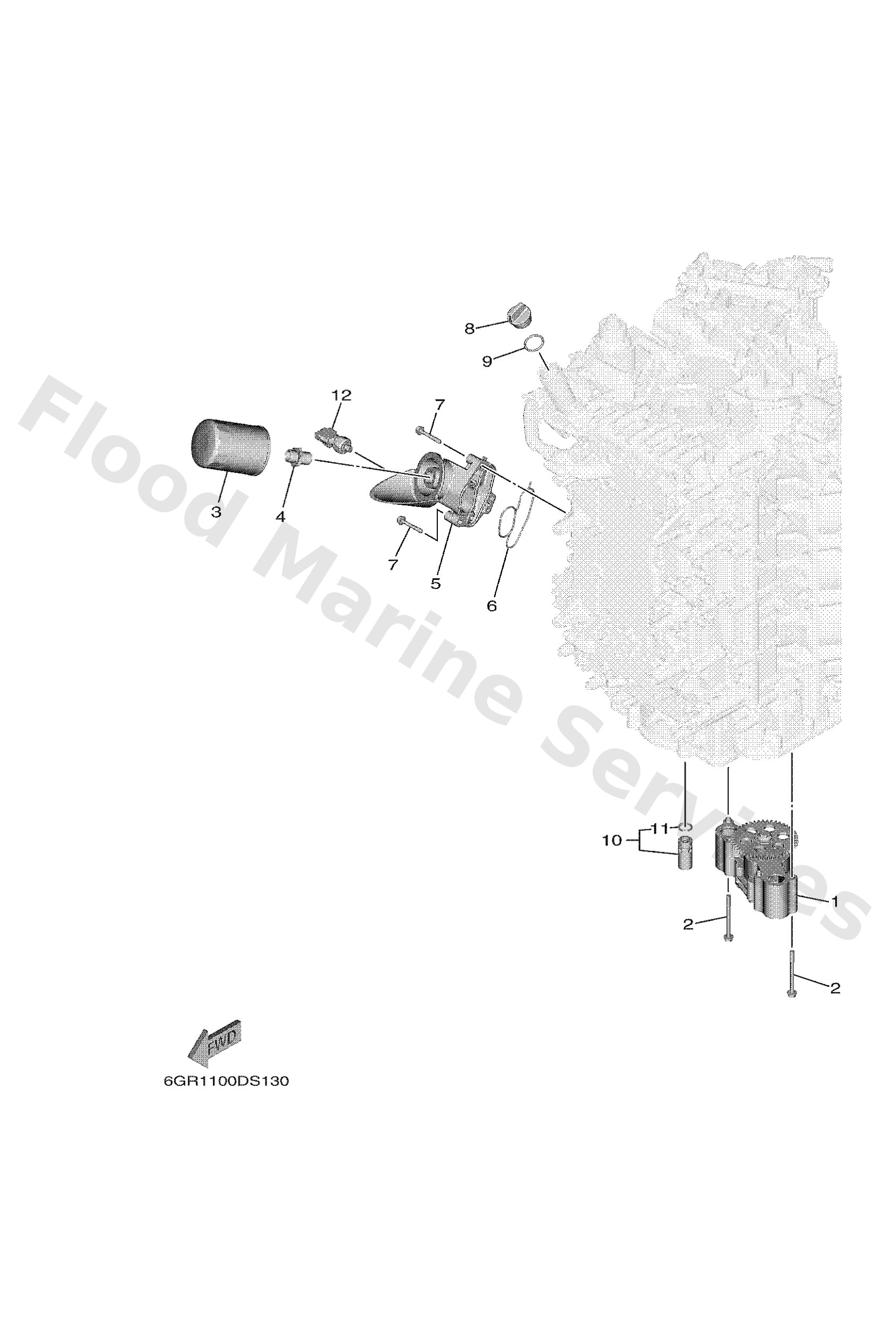

Diagram: OIL PUMP
Parts List
Reference
Description
Price
1
6GR1330000
Oil pump assembly
Loading…
↗
2
9581706075
Bolt, flange
Loading…
↗
3
N261344002
Element assembly, oil cleaner
Loading…
↗
4
9040119001
Bolt, union
Loading…
↗
5
6GR1344600
Connector
Loading…
↗
6
6GR1347700
Gasket
Loading…
↗
7
9010506151
Bolt, flange
Loading…
↗
8
6G81536300
Plug, oil
Loading…
↗
9
9321024M79
O-ring
Loading…
↗
10
6GR1349000
Relief valve assembly
Loading…
↗
11
6GR1347300
O-ring
Loading…
↗
12
6AW8365100
Sender, oil pressure
Loading…
↗
