Z200NETO (2002)
OIL PUMP

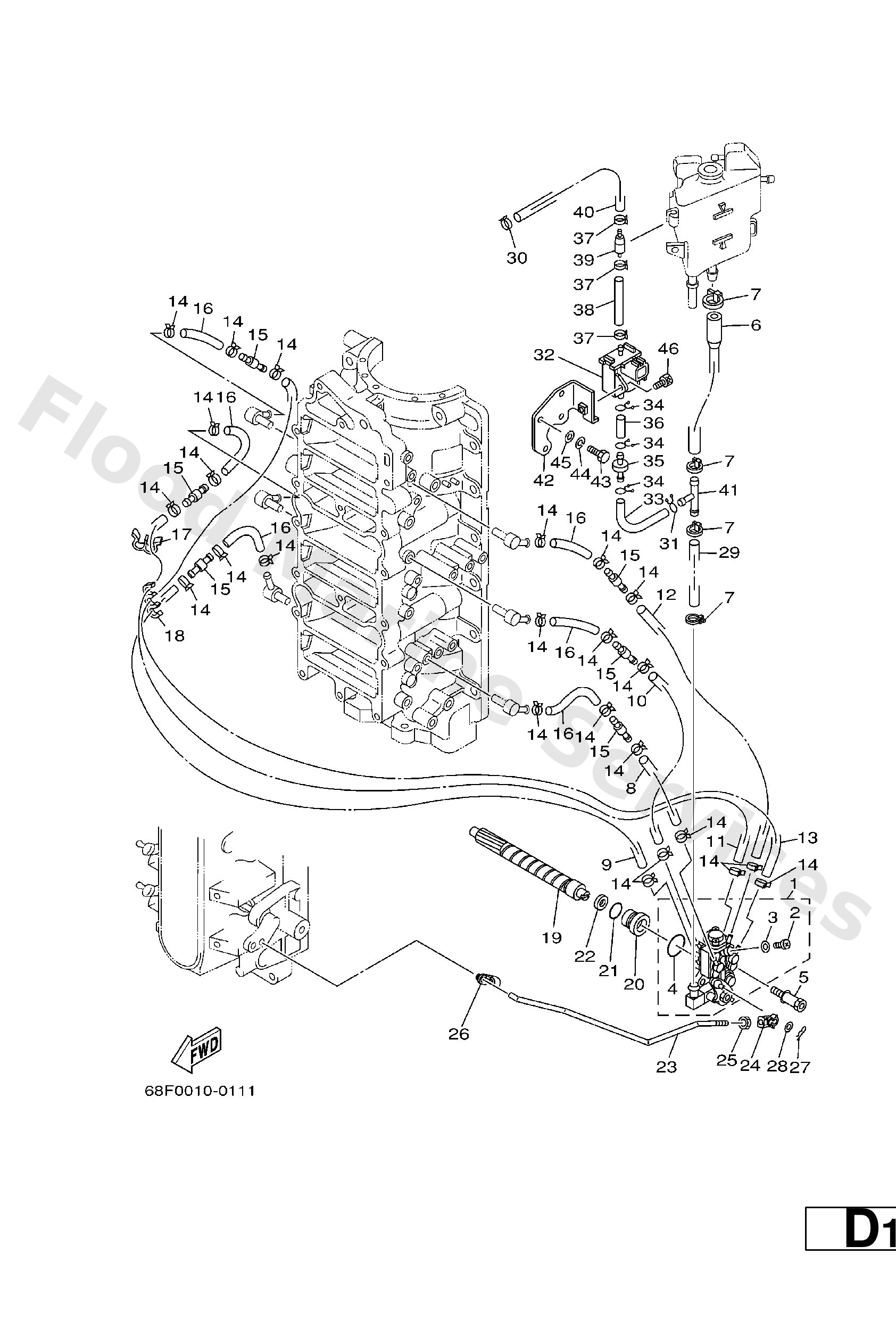

Diagram: OIL PUMP
Parts List
Reference
Description
Price
1
68L1320000
Oil injection pump assembly
Loading…
↗
1
68F1320000
Oil injection pump assembly
Loading…
↗
1
68H1320000
Oil injection pump assembly
Loading…
↗
2
6R3--13471--00
Screw
Loading…
↗
3
6L2--13475--00
Gasket, breather bolt
Loading…
↗
4
93210--19M82
O-ring(6j8)
Loading…
↗
5
90109--06M40
Bolt(6h0)
Loading…
↗
6
6G51341600
Pipe, oil 1
Loading…
↗
7
90465--11M10
Clamp
Loading…
↗
8
90445--07M00
Hose (l200)
Loading…
↗
9
90445--07M09
Hose (l390)
Loading…
↗
10
90445--07MA5
Hose (l200)
Loading…
↗
11
90445--07M10
Hose (L510)
Loading…
↗
12
90445--07MA4
Hose (l390)
Loading…
↗
13
9044507M80
Hose (l770)
Loading…
↗
14
90468--07M02
Clip (6e5)
Loading…
↗
15
6R31318300
Valve, check
Loading…
↗
16
90445--07M04
Hose(62t)
Loading…
↗
17
90464--07M20
Clamp(6h0)
Loading…
↗
18
90464--07M05
Clamp (6g5)
Loading…
↗
19
6R3--11537--00
Gear, driven
Loading…
↗
20
6R3--13117--00
Collar, distance
Loading…
↗
21
93210--13M04
93210-13m04
Loading…
↗
22
90202--08M44
Washer, plate(6r3)
Loading…
↗
23
67H4124100
Rod, link
Loading…
↗
24
6H1--41237--00
Joint, link
Loading…
↗
25
95380--05600
Nut, hexagon (663)
Loading…
↗
26
6R5--41237--00
Joint, link
Loading…
↗
27
90468--05M03
Clip(6j8)
Loading…
↗
28
90202--05088
Washer, plate (666)
Loading…
↗
29
9044512M14
Hose (l50)
Loading…
↗
31
90467--08M18
Clip
Loading…
↗
32
68F1310000
Solenoid pump assembly
Loading…
↗
33
68F1341800
Hose 4
Loading…
↗
34
68F1318400
Spring, oil pipe
Loading…
↗
35
68F1344000
Filter assembly
Loading…
↗
36
68F1316F00
Hose 1
Loading…
↗
37
68F1313300
Clip
Loading…
↗
38
68F1316G00
Hose 2
Loading…
↗
39
68F1316A00
Check Valve assembly
Loading…
↗
40
68F1341600
Hose 3
Loading…
↗
41
68F--14485--00
Pipe, joint
Loading…
↗
42
68F1319K00
Plate
Loading…
↗
43
97095--06020
Bolt(7u8)
Loading…
↗
44
92995--06100
Washer(6a1)
Loading…
↗
45
92995--06600
Washer, plain (646)
Loading…
↗
46
9011006M06
Bolt, hexagon socket head
Loading…
↗
