Z200PETO (2003)
OIL PUMP

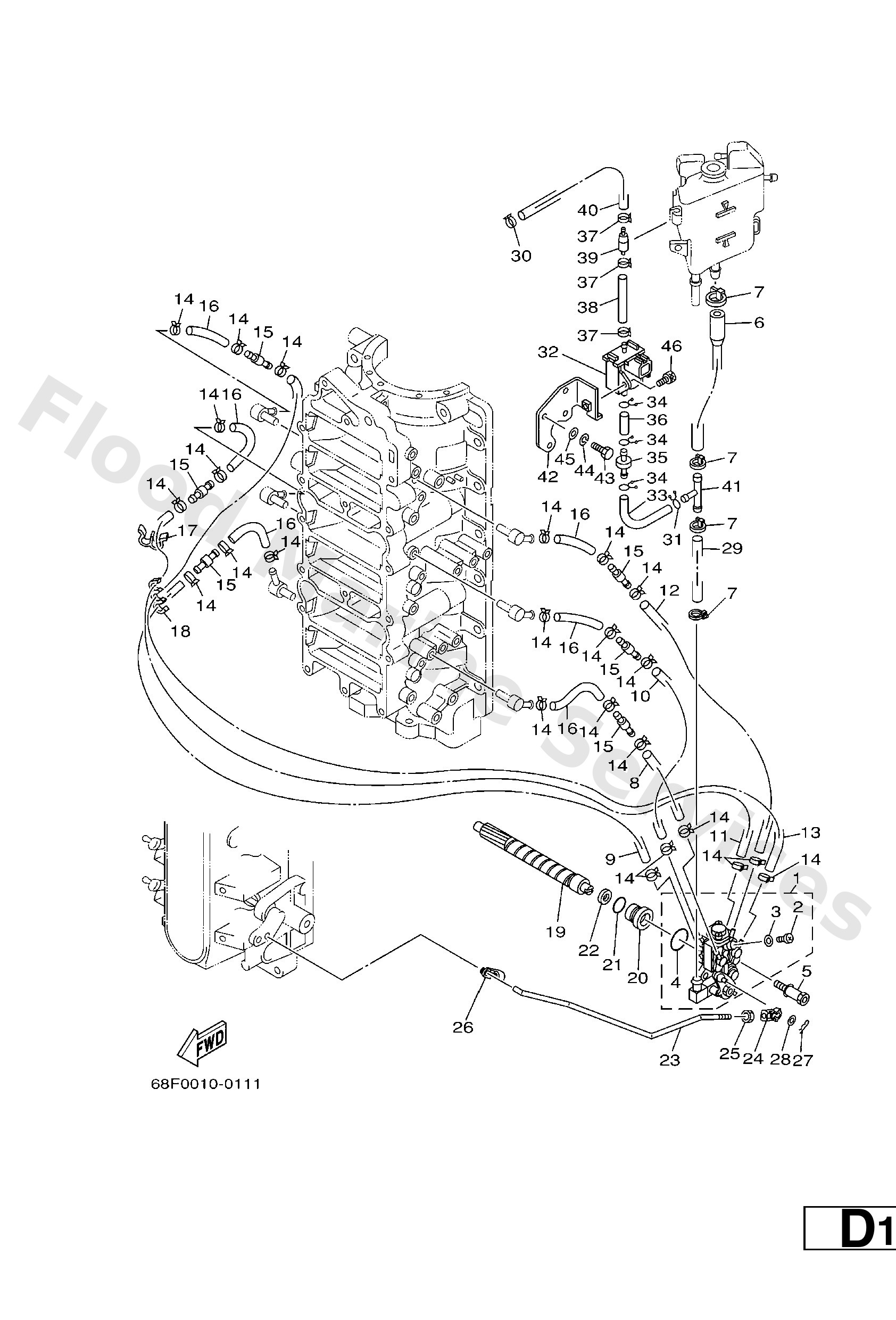

Diagram: OIL PUMP
Parts List
Reference
Description
Price
1
68F1320000
Oil injection pump assembly
Loading…
↗
1
68H1320000
Oil injection pump assembly
Loading…
↗
2
6R31347100
Screw
Loading…
↗
3
6L21347500
Gasket, breather bolt
Loading…
↗
4
9321019M82
O-ring(6j8)
Loading…
↗
5
9010906M40
Bolt(6h0)
Loading…
↗
6
6G51341600
Pipe, oil 1
Loading…
↗
7
9046511M10
Clamp
Loading…
↗
8
9044507M00
Hose (l200)
Loading…
↗
9
9044507M09
Hose (l390)
Loading…
↗
10
9044507MA5
Hose (l200)
Loading…
↗
11
9044507M10
-
Loading…
↗
12
9044507MA4
Hose (l390)
Loading…
↗
13
9044507M80
Hose (l770)
Loading…
↗
14
9046807M02
Clip (6e5)
Loading…
↗
15
6R31318300
Valve, check
Loading…
↗
16
9044507M04
Hose(62t)
Loading…
↗
17
9046407M20
Clamp(6h0)
Loading…
↗
18
9046407M05
Clamp (6g5)
Loading…
↗
19
6R31153700
Gear, driven
Loading…
↗
20
6R31311700
Collar, distance
Loading…
↗
21
9321013M04
93210-13m04
Loading…
↗
22
9020208M44
Washer, plate(6r3)
Loading…
↗
23
67H4124100
Rod, link
Loading…
↗
24
6H14123700
Joint, link
Loading…
↗
25
9538005600
Nut, hexagon (663)
Loading…
↗
26
6R54123700
Joint, link
Loading…
↗
27
9046805M03
Clip(6j8)
Loading…
↗
28
9020205088
Washer, plate (666)
Loading…
↗
29
9044512M14
Hose (l50)
Loading…
↗
31
9046708M18
Clip
Loading…
↗
32
68F1310000
Solenoid pump assembly
Loading…
↗
33
68F1341800
Hose 4
Loading…
↗
34
68F1318400
Spring, oil pipe
Loading…
↗
35
68F1344000
Filter assembly
Loading…
↗
36
68F1316F00
Hose 1
Loading…
↗
37
68F1313300
Clip
Loading…
↗
38
68F1316G00
Hose 2
Loading…
↗
39
68F1316A00
Check Valve assembly
Loading…
↗
40
68F1341600
Hose 3
Loading…
↗
41
68F1448500
Pipe, joint
Loading…
↗
42
68F1319K00
Plate
Loading…
↗
43
9709506020
Bolt(7u8)
Loading…
↗
44
9299506100
Washer(6a1)
Loading…
↗
45
9299506600
Washer, plain (646)
Loading…
↗
46
9011006M06
Bolt, hexagon socket head
Loading…
↗
