115CETO (2009)
OIL TANK

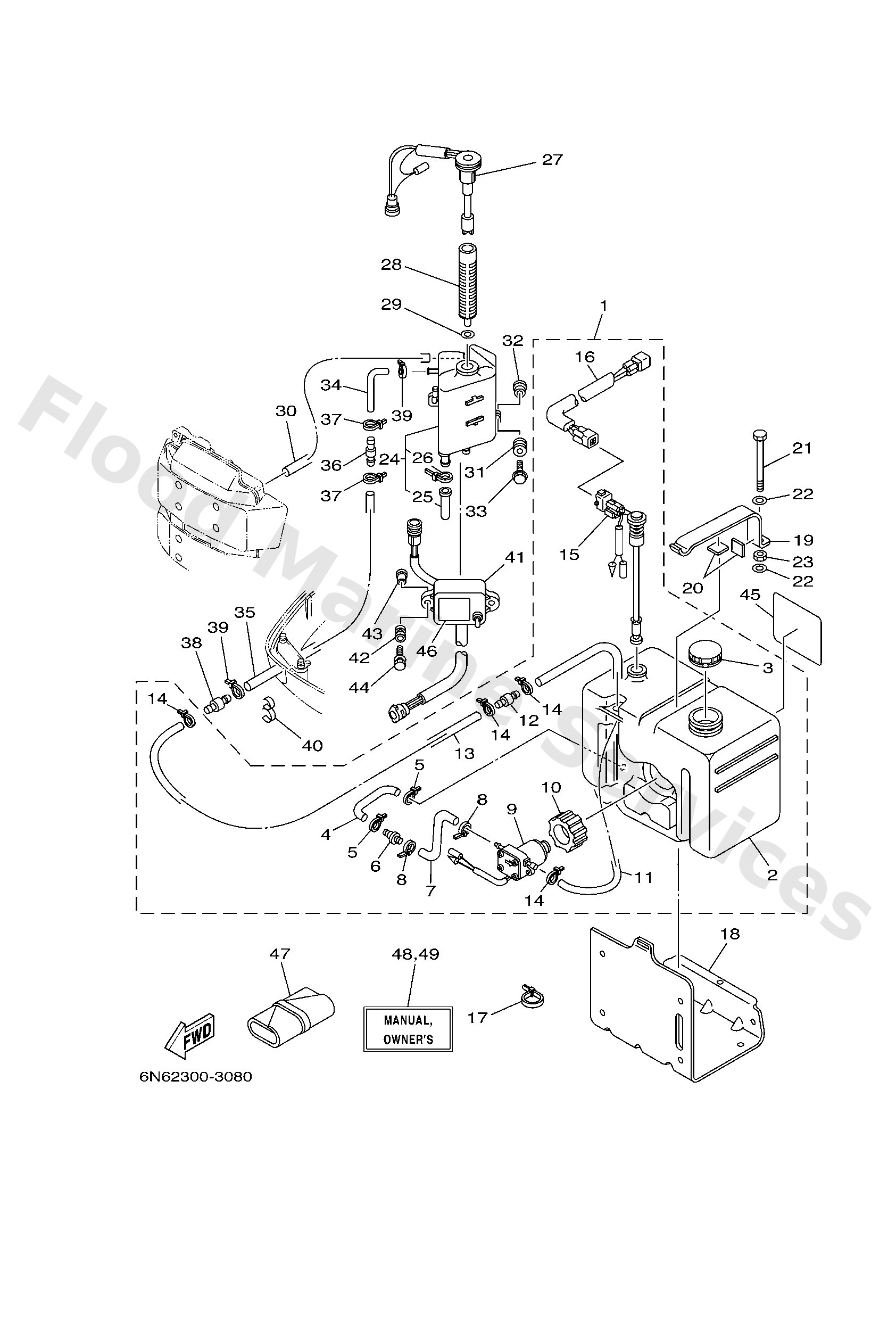

Diagram: OIL TANK
Parts List
Reference
Description
Price
1
61A2170820
Sub oil tank assembly.
Loading…
↗
2
6E52173320
Sub tank, oil (10.5l)
Loading…
↗
3
6E52177003
Oil tank cap assembly
Loading…
↗
4
6E52432200
Pipe 11
Loading…
↗
5
9046511M10
Clamp
Loading…
↗
6
6462425102
Strainer 1
Loading…
↗
7
6E52431901
Pipe, oil
Loading…
↗
9
6E58190001
Oil feed pump assembly
Loading…
↗
10
6E58192200
Grommet
Loading…
↗
11
6E52432101
Pipe 10
Loading…
↗
12
6E52437900
Pipe, joint 4
Loading…
↗
13
9044511M26
Hose (l8000)
Loading…
↗
15
6E58572006
Oil level gauge assembly
Loading…
↗
16
6R38572180
(4P)
Wire, lead
Loading…
↗
17
9046513M11
Clamp (6e5)
Loading…
↗
18
6E5217340133
Holder, oil sub tank
Loading…
↗
19
6E5217980133
Bracket, damper
Loading…
↗
20
6E52174600
Damper
Loading…
↗
21
9708006100
Bolt, hexagon
Loading…
↗
22
9299006600
Washer, plain (646)
Loading…
↗
23
9538006600
Nut(661)
Loading…
↗
24
6E52175005
Oil tank assembly
Loading…
↗
25
6E51344800
Cap, oil tank
Loading…
↗
27
6G78573005
Oil level gauge assembly
Loading…
↗
28
6E51341100
Strainer, oil
Loading…
↗
29
6E51341400
Gasket, strainer cover
Loading…
↗
30
9044505M02
Hose (l700)
Loading…
↗
31
6A08231700
Damper, ignition coil
Loading…
↗
32
9038706119
Collar
Loading…
↗
33
9011906M65
Bolt, with washer
Loading…
↗
34
64E2432300
Pipe 12
Loading…
↗
35
9044512207
Hose (l3000)
Loading…
↗
40
9046413M34
Clamp(6r3)
Loading…
↗
41
6N78574000
Control unit assembly
Loading…
↗
45
60H13437A0
Mark, caution
Loading…
↗
46
60H85711A0
Mark, caution
Loading…
↗
47
656W281002
Tool kit
Loading…
↗
48
6N62819974E0
UR (E)
O/m 115c/130b '09
Loading…
↗
48
6N62819974F0
UR (F)
O/m 115c/130b '09
Loading…
↗
48
6N62819974S0
UR (ES)
O/m 115c/130b '09
Loading…
↗
48
6N62819974G0
UR (D)
O/m 115c/130b '09
Loading…
↗
48
6N62819974D0
UR (NL)
O/m 115c/130b '09
Loading…
↗
48
6N62819974H0
UR (I)
O/m 115c/130b '09
Loading…
↗
49
6N6281998BK0
UR (DK)
O/m 115c/130b '09
Loading…
↗
49
6N6281998BR0
UR (GR)
O/m 115c/130b '09
Loading…
↗
49
6N6281998BP0
UR (P)
O/m 115c/130b '09
Loading…
↗
49
6N6281998BN0
UR (N)
O/m 115c/130b '09
Loading…
↗
49
6N6281998BM0
UR (S)
O/m 115c/130b '09
Loading…
↗
49
6N6281998BL0
UR (SF)
O/m 115c/130b '09
Loading…
↗
