115TRC (2004)
OIL TANK

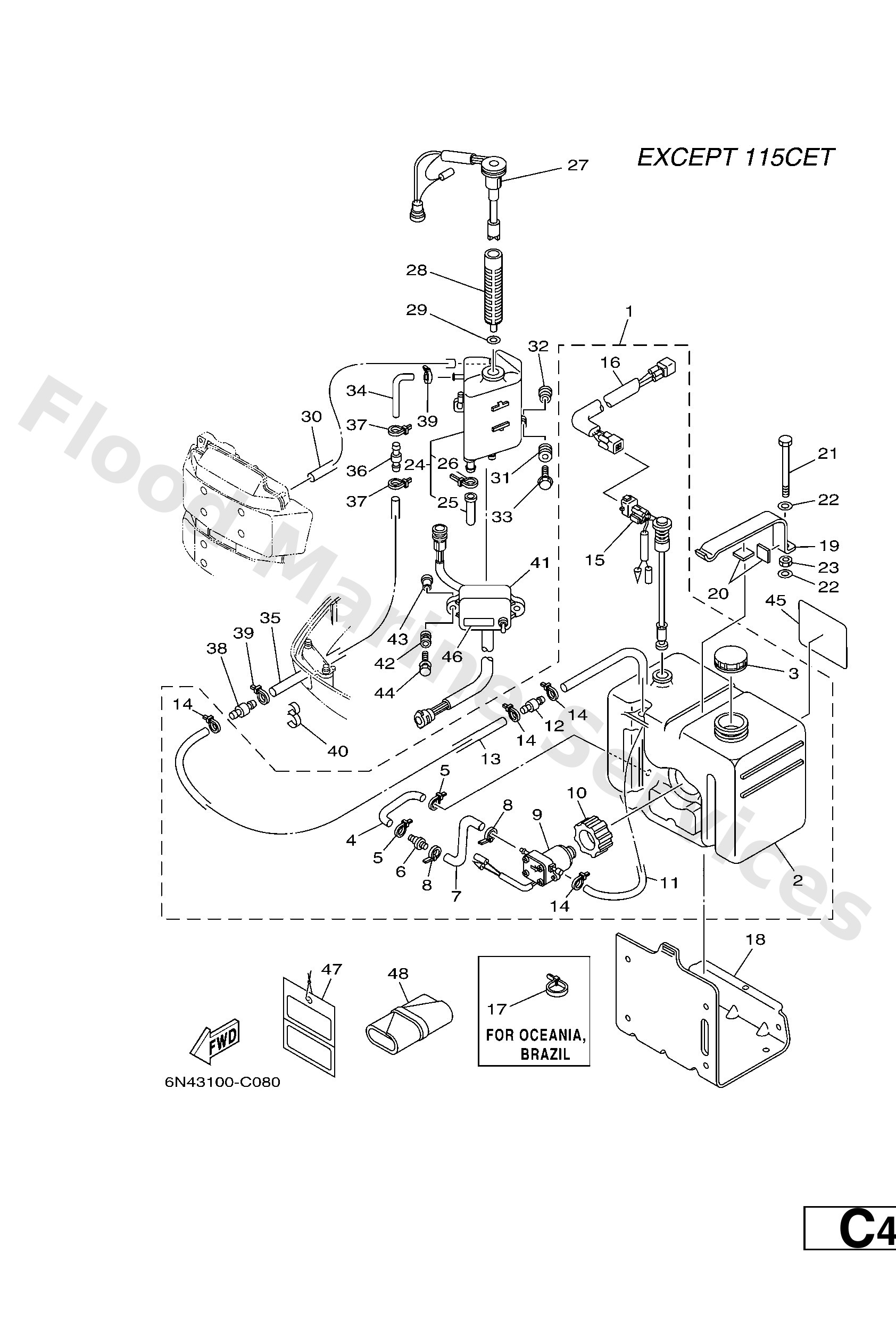

Diagram: OIL TANK
Parts List
Reference
Description
Price
1
6K12170810
FOR CAR
Sub oil tank assembly.
Loading…
↗
1
6E52170810
FOR CAR
Sub oil tank assembly
Loading…
↗
1
61A2170820
FOR OCE,BRA
Sub oil tank assembly.
Loading…
↗
2
6E52173320
Sub tank, oil (10.5l)
Loading…
↗
3
6E52177003
Oil tank cap assembly
Loading…
↗
4
6E52432200
Pipe 11
Loading…
↗
5
9046511M10
Clamp
Loading…
↗
6
6462425102
Strainer 1
Loading…
↗
7
6E52431901
Pipe, oil
Loading…
↗
9
6E58190001
Oil feed pump assembly
Loading…
↗
10
6E58192200
Grommet
Loading…
↗
11
6E52432101
Pipe 10
Loading…
↗
12
6E52437900
Pipe, joint 4
Loading…
↗
13
9044511M00
FOR 6K1-21708-10
Hose (l8000)
Loading…
↗
13
9044511M26
FOR 61A-21708-20
Hose (l8000)
Loading…
↗
13
9044511M81
FOR 6E5-21708-10
Hose (l3000)
Loading…
↗
15
6E58572004
Oil level gauge assembly
Loading…
↗
16
6R38572130
FOR 6E5-21708-10
Wire, lead
Loading…
↗
16
6R38572180
Wire, lead
Loading…
↗
17
9046513M11
FOR OCE,BRA
Clamp (6e5)
Loading…
↗
18
6E5217340133
Holder, oil sub tank
Loading…
↗
19
6E5217980133
Bracket, damper
Loading…
↗
20
6E52174600
Damper
Loading…
↗
21
9708006100
Bolt, hexagon
Loading…
↗
22
9299006600
Washer, plain (646)
Loading…
↗
23
9538006600
Nut(661)
Loading…
↗
24
6E52175005
Oil tank assembly
Loading…
↗
25
6E51344800
Cap, oil tank
Loading…
↗
27
6G78573004
Oil level gauge assembly
Loading…
↗
28
6E51341100
Strainer, oil
Loading…
↗
29
6E51341400
Gasket, strainer cover
Loading…
↗
30
9044505M02
Hose (l700)
Loading…
↗
31
6A08231700
Damper, ignition coil
Loading…
↗
32
6244254200
Collar
Loading…
↗
33
9011906M65
Bolt, with washer
Loading…
↗
34
64E2432300
Pipe 12
Loading…
↗
35
9044512207
FOR USA,OCE,BRA
Hose (l3000)
Loading…
↗
35
9044512M12
FOR CAR
Hose (L940)
Loading…
↗
40
9046413M34
Clamp(6r3)
Loading…
↗
41
6N78574000
Control unit assembly
Loading…
↗
45
6E51343743
FOR USA,OCE,BRA
Mark, Caution
Loading…
↗
45
6E51343762
FOR CAR
Mark, Caution
Loading…
↗
46
6E58571140
Mark, Caution
Loading…
↗
47
61H2819R31
EXCEPT BRA
-
Loading…
↗
48
656W281002
AP
Tool kit
Loading…
↗
