200GETO (2002)
OIL TANK

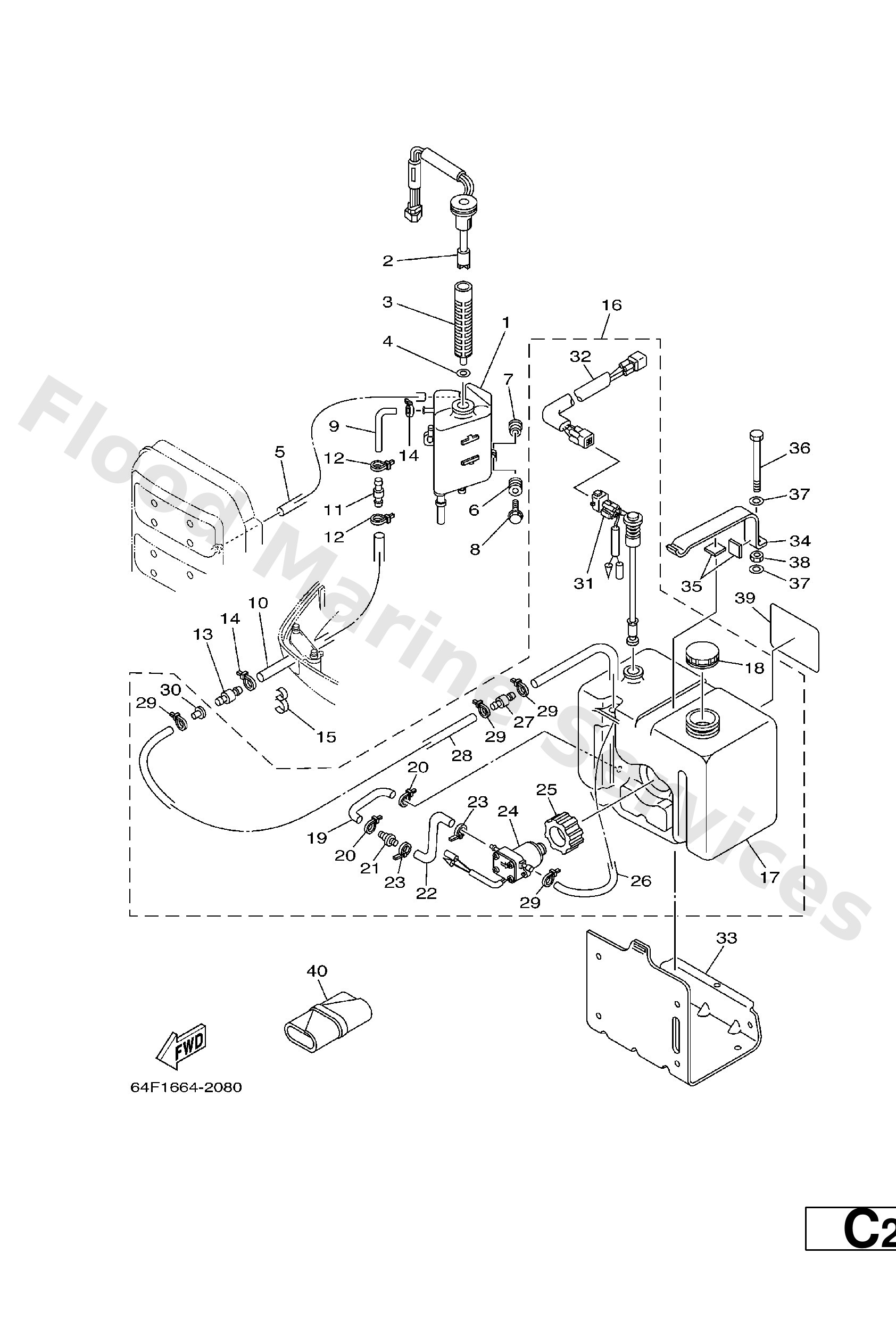

Diagram: OIL TANK
Parts List
Reference
Description
Price
1
6E5--21750--05
Oil tank assembly
Loading…
↗
2
6R3--85730--03
Oil level gauge assembly
Loading…
↗
3
6E5--13411--00
Strainer, oil
Loading…
↗
4
6E5--13414--00
Gasket, strainer cover
Loading…
↗
5
90445--05M02
Hose (l700)
Loading…
↗
6
6A0--82317--00
Damper, ignition coil
Loading…
↗
7
624--42542--00
Collar
Loading…
↗
8
90119--06M65
Bolt, with washer
Loading…
↗
9
64E--24323--00
Pipe 12
Loading…
↗
10
90445--12M13
Hose (L880)
Loading…
↗
11
6E5--24379--00
Pipe, joint 4
Loading…
↗
12
90465--11M10
Clamp
Loading…
↗
15
90464--13M34
Clamp(6r3)
Loading…
↗
16
6E5--21708--08
Sub oil tank assembly
Loading…
↗
17
6E5--21733--02
Sub tank, oil (10.5l)
Loading…
↗
18
6E5--21770--03
Oil tank cap assembly
Loading…
↗
19
6E5--24322--00
Pipe 11
Loading…
↗
21
646--24251--02
Strainer 1
Loading…
↗
22
6E5--24319--01
Pipe, oil
Loading…
↗
24
6E5--81900--01
Oil feed pump assembly
Loading…
↗
25
6E5--81922--00
Grommet
Loading…
↗
26
6E5--24321--01
Pipe 10
Loading…
↗
28
90445--11M81
Hose (l3000)
Loading…
↗
30
90480--06M19
Grommet (6e3)
Loading…
↗
31
6E5--85720--04
Oil level gauge assembly
Loading…
↗
32
6R3--85721--30
Wire, lead
Loading…
↗
33
6E5--21734--01--33
Holder, oil sub tank
Loading…
↗
34
6E5--21798--01--33
Bracket, damper
Loading…
↗
35
6E5--21746--00
Damper
Loading…
↗
36
97080--06100
Bolt, hexagon
Loading…
↗
37
92990--06600
Washer, plain (646)
Loading…
↗
38
95380--06600
Nut(661)
Loading…
↗
39
6E5--13437--62
Mark, Caution
Loading…
↗
40
656--W2810--02
Tool kit
Loading…
↗
