L250AETO (2003)
OIL TANK

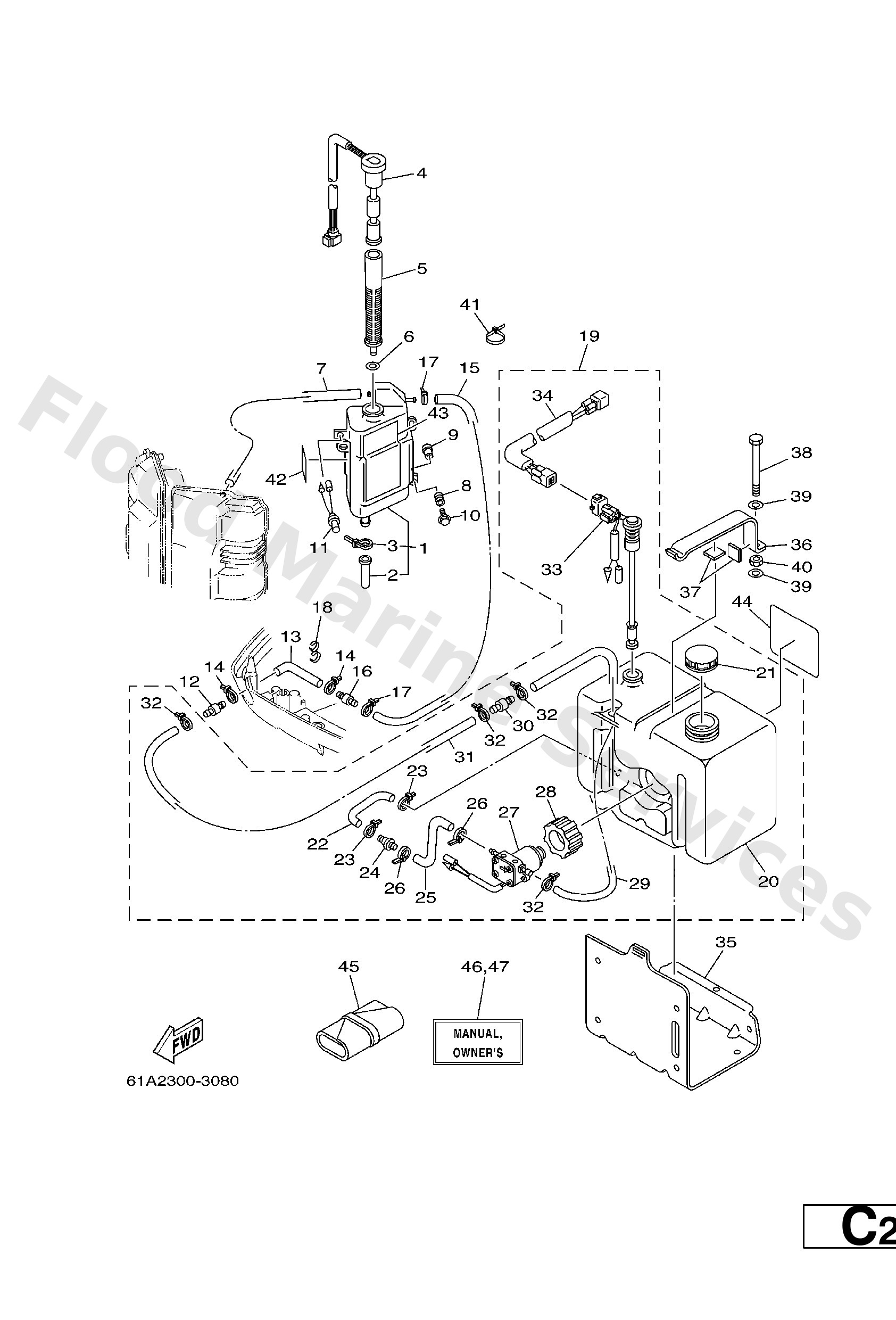

Diagram: OIL TANK
Parts List
Reference
Description
Price
1
61A−21750−00
Oil tank assembly
Loading…
↗
2
6E5−13448−00
Cap, oil tank
Loading…
↗
3
90465−13M11
Clamp (6e5)
Loading…
↗
4
61A−85730−01
Oil level gauge assembly
Loading…
↗
5
61A−13411−00
Strainer, oil
Loading…
↗
6
6E5−13414−00
Gasket, strainer cover
Loading…
↗
7
90445−05M02
Hose (l700)
Loading…
↗
8
6A0−82317−00
Damper, ignition coil
Loading…
↗
9
624−42542−00
Collar
Loading…
↗
10
90119−06M65
Bolt, with washer
Loading…
↗
11
6R3−8259E−00
Switch assembly
Loading…
↗
12
6E5−24379−00
Pipe, joint 4
Loading…
↗
13
90445−12M04
Hose (l3000)
Loading…
↗
14
90465−11M10
Clamp
Loading…
↗
15
6E5−24323−00
Pipe 12
Loading…
↗
18
90464−13M34
Clamp(6r3)
Loading…
↗
19
61A−21708−20
Sub oil tank assembly.
Loading…
↗
20
6E5−21733−20
Sub tank, oil (10.5l)
Loading…
↗
21
6E5−21770−03
Oil tank cap assembly
Loading…
↗
22
6E5−24322−00
Pipe 11
Loading…
↗
24
646−24251−02
Strainer 1
Loading…
↗
25
6E5−24319−01
Pipe, oil
Loading…
↗
27
6E5−81900−01
Oil feed pump assembly
Loading…
↗
28
6E5−81922−00
Grommet
Loading…
↗
29
6E5−24321−01
Pipe 10
Loading…
↗
31
90445−11M26
Hose (l8000)
Loading…
↗
33
6E5−85720−04
Oil level gauge assembly
Loading…
↗
34
6R3−85721−80
Wire, lead
Loading…
↗
35
6E5−21734−01−33
Holder, oil sub tank
Loading…
↗
36
6E5−21798−01−33
Bracket, damper
Loading…
↗
37
6E5−21746−00
Damper
Loading…
↗
38
97080−06100
Bolt, hexagon
Loading…
↗
39
92990−06600
Washer, plain (646)
Loading…
↗
40
95380−06600
Nut(661)
Loading…
↗
42
6E5−85711−60
Mark, Caution
Loading…
↗
43
61A−85711−61
Mark, Caution
Loading…
↗
44
6E5−13437−62
Mark, Caution
Loading…
↗
45
656−W2810−02
Tool kit
Loading…
↗
46
61A−28199−7B−A0
UR (E,F,S)
O/m 250aeto/l(61a2/62b2) '03
Loading…
↗
46
61A−28199−7B−B0
UR (D,NL,I)
O/m 250aeto/l(61a2/62b2) '03
Loading…
↗
47
61A−28199−8B−A0
UR (DK,P,GR)
O/m 250aeto/l(61a2/61b2) '03
Loading…
↗
47
61A−28199−8B−B0
UR (N,S,SS)
O/m 250aeto/l(61a2/61b2) '03
Loading…
↗
