L250AETO (2004)
OIL TANK

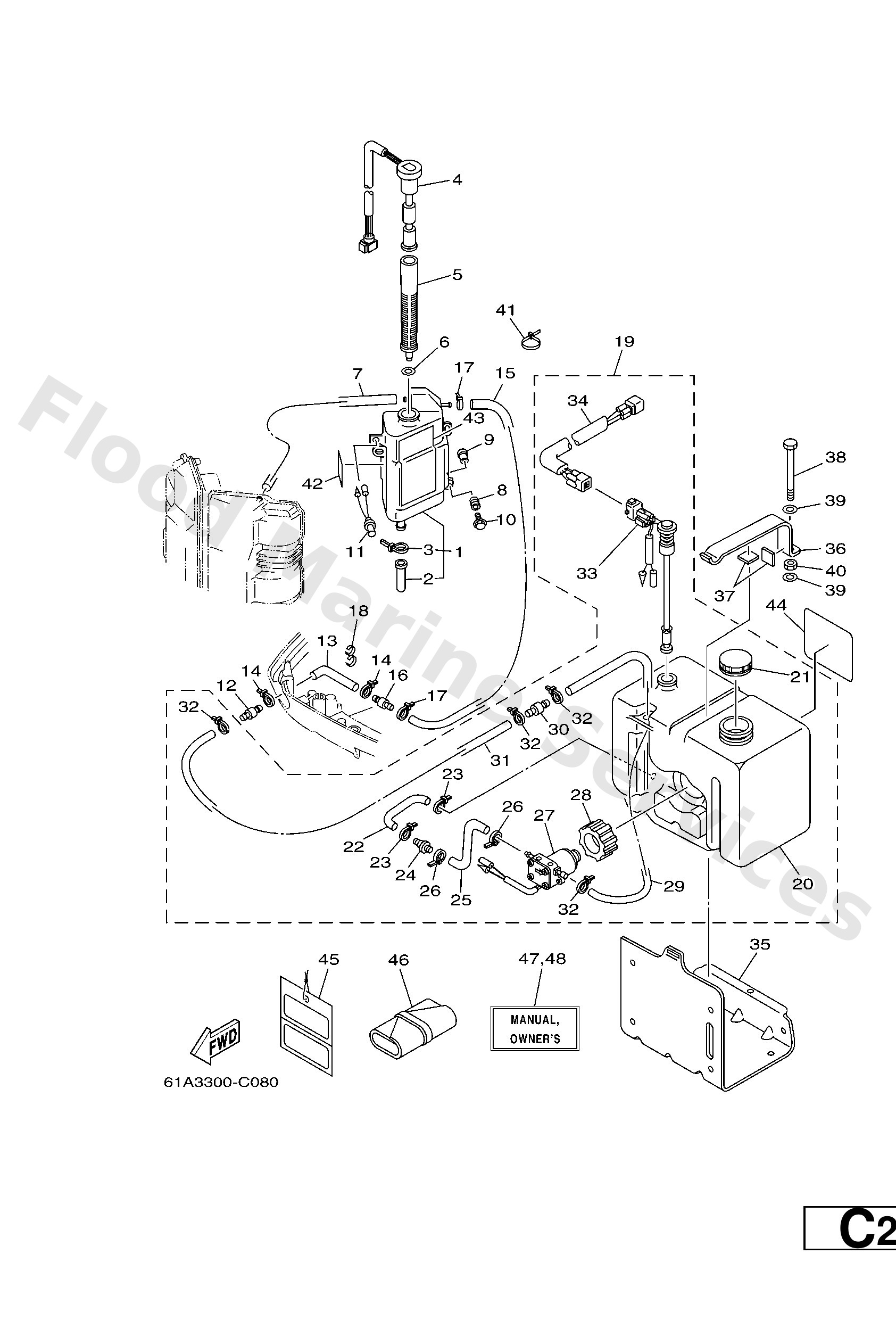

Diagram: OIL TANK
Parts List
Reference
Description
Price
1
61A2175000
Oil tank assembly
Loading…
↗
2
6E51344800
Cap, oil tank
Loading…
↗
3
9046513M11
Clamp (6e5)
Loading…
↗
4
61A8573001
Oil level gauge assembly
Loading…
↗
5
61A1341100
Strainer, oil
Loading…
↗
6
6E51341400
Gasket, strainer cover
Loading…
↗
7
9044505M02
Hose (l700)
Loading…
↗
8
6A08231700
Damper, ignition coil
Loading…
↗
9
6244254200
Collar
Loading…
↗
10
9011906M65
Bolt, with washer
Loading…
↗
11
6R38259E00
Switch assembly
Loading…
↗
12
6E52437900
Pipe, joint 4
Loading…
↗
13
9044512M04
Hose (l3000)
Loading…
↗
14
9046511M10
Clamp
Loading…
↗
15
6E52432300
Pipe 12
Loading…
↗
18
9046413M34
Clamp(6r3)
Loading…
↗
19
61A2170820
Sub oil tank assembly.
Loading…
↗
20
6E52173320
Sub tank, oil (10.5l)
Loading…
↗
21
6E52177003
Oil tank cap assembly
Loading…
↗
22
6E52432200
Pipe 11
Loading…
↗
24
6462425102
Strainer 1
Loading…
↗
25
6E52431901
Pipe, oil
Loading…
↗
27
6E58190001
Oil feed pump assembly
Loading…
↗
28
6E58192200
Grommet
Loading…
↗
29
6E52432101
Pipe 10
Loading…
↗
31
9044511M26
Hose (l8000)
Loading…
↗
33
6E58572005
Oil level gauge assembly
Loading…
↗
34
6R38572180
Wire, lead
Loading…
↗
35
6E5217340133
Holder, oil sub tank
Loading…
↗
36
6E5217980133
Bracket, damper
Loading…
↗
37
6E52174600
Damper
Loading…
↗
38
9708006100
Bolt, hexagon
Loading…
↗
39
9299006600
Washer, plain (646)
Loading…
↗
40
9538006600
Nut(661)
Loading…
↗
42
6E58571160
Mark, Caution
Loading…
↗
43
61A8571161
Mark, Caution
Loading…
↗
44
6E51343762
Mark, Caution
Loading…
↗
45
61H2819R31
-
Loading…
↗
46
656W281002
Tool kit
Loading…
↗
47
61A281997CA0
UR (E,F,S)
Om 250aet/et '04
Loading…
↗
47
61A281997CB0
UR (D,NL,I)
Om 250a
Loading…
↗
48
61A281998CA0
UR (DK,P,GR)
Om 250aet/et '04
Loading…
↗
48
61A281998CB0
UR (N,S,SS)
Om 250aet/et '04
Loading…
↗
