Z150QETO (2002)
OIL TANK

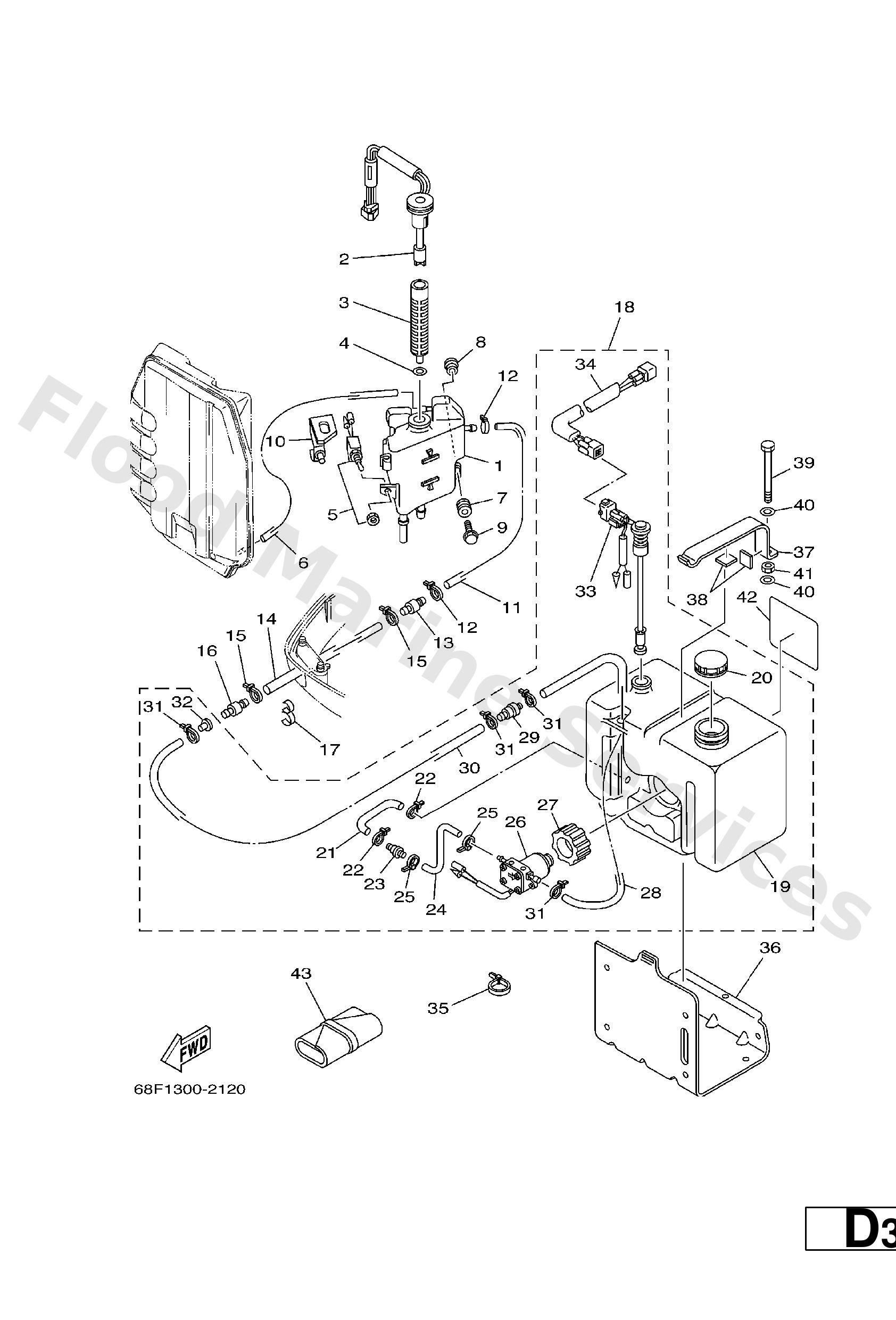

Diagram: OIL TANK
Parts List
Reference
Description
Price
1
68F2175000
Oil tank assembly
Loading…
↗
2
67H8573001
Oil level gauge assembly
Loading…
↗
3
6E5--13411--00
Strainer, oil
Loading…
↗
4
6E5--13414--00
Gasket, strainer cover
Loading…
↗
5
6R3--8259E--00
Switch assembly
Loading…
↗
6
9044507M43
Hose (l600)
Loading…
↗
7
6A0--82317--00
Damper, ignition coil
Loading…
↗
8
624--42542--00
Collar
Loading…
↗
9
90119--06M65
Bolt, with washer
Loading…
↗
10
9046512M92
Clamp
Loading…
↗
11
6E5--24323--00
Pipe 12
Loading…
↗
12
90465--11M10
Clamp
Loading…
↗
13
6E5--24379--00
Pipe, joint 4
Loading…
↗
14
90445--12207
Hose (l3000)
Loading…
↗
17
90464--13M34
Clamp(6r3)
Loading…
↗
18
61A--21708--03
Sub oil tank assembly.
Loading…
↗
19
6E5--21733--02
Sub tank, oil (10.5l)
Loading…
↗
20
6E5--21770--03
Oil tank cap assembly
Loading…
↗
21
6E5--24322--00
Pipe 11
Loading…
↗
23
646--24251--02
Strainer 1
Loading…
↗
24
6E5--24319--01
Pipe, oil
Loading…
↗
26
6E5--81900--01
Oil feed pump assembly
Loading…
↗
27
6E5--81922--00
Grommet
Loading…
↗
28
6E5--24321--01
Pipe 10
Loading…
↗
30
90445--11M26
Hose (l8000)
Loading…
↗
32
90480--06M19
Grommet (6e3)
Loading…
↗
33
6E5--85720--04
Oil level gauge assembly
Loading…
↗
34
6R3--85721--80
Wire, lead
Loading…
↗
35
90465--13M11
Clamp (6e5)
Loading…
↗
36
6E5--21734--01--33
Holder, oil sub tank
Loading…
↗
37
6E5--21798--01--33
Bracket, damper
Loading…
↗
38
6E5--21746--00
Damper
Loading…
↗
39
97080--06100
Bolt, hexagon
Loading…
↗
40
92990--06600
Washer, plain (646)
Loading…
↗
41
95380--06600
Nut(661)
Loading…
↗
42
6E5--13437--62
Mark, Caution
Loading…
↗
43
68F2810000
Tool kit
