25BMH (2006)
OPTIONAL PARTS

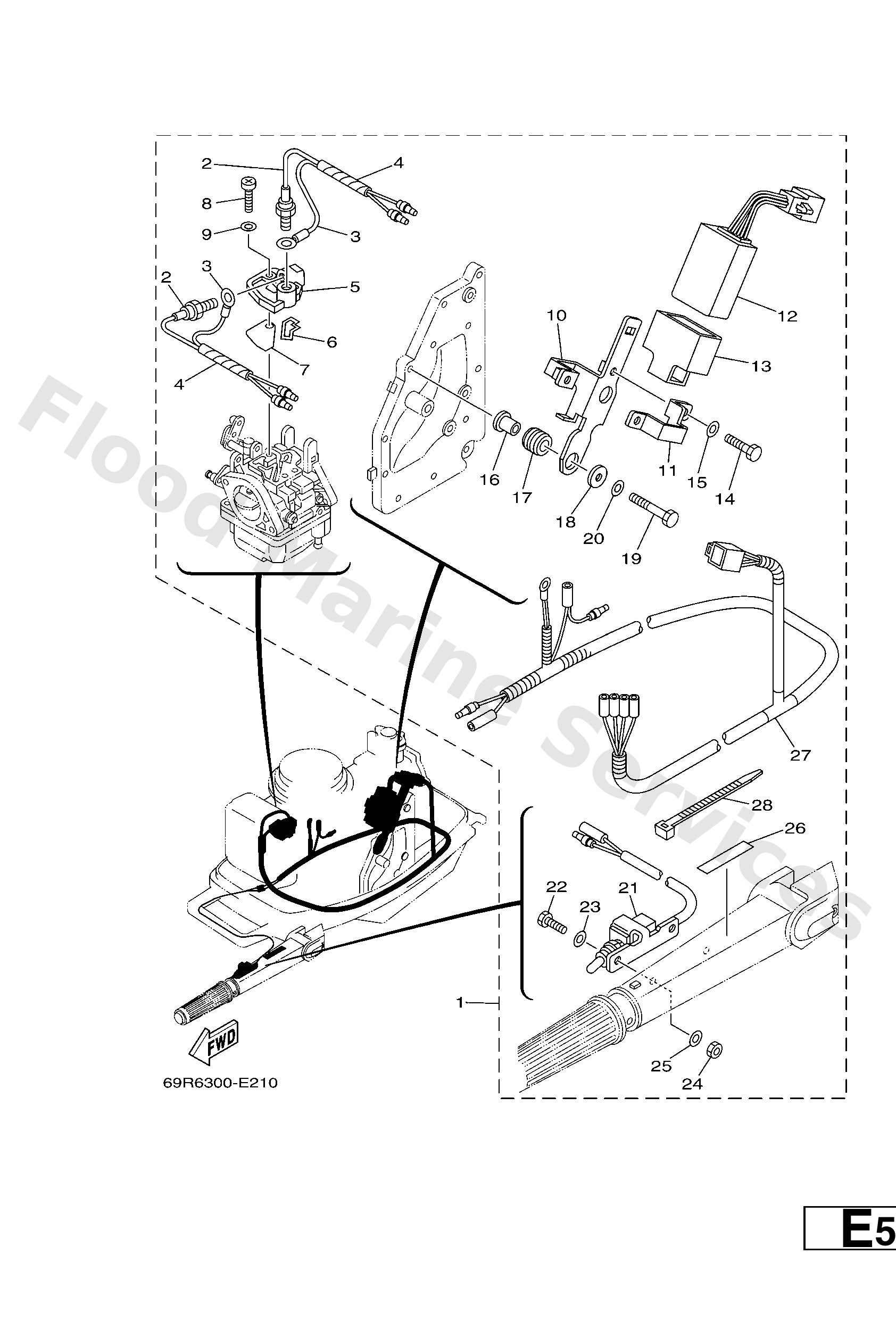

Diagram: OPTIONAL PARTS
Parts List
Reference
Description
Price
1
69S8379001
AP
Heater assembly
Loading…
↗
2
69S8379300
Heater Comp.
Loading…
↗
3
69W8335400
Wire, earth lead 1
Loading…
↗
4
9044606M90
Hose
Loading…
↗
5
69S124660094
Exchanger, heat
Loading…
↗
6
69S1422700
-
Loading…
↗
7
69S1423700
-
Loading…
↗
8
9788004012
Screw, Pan Head
Loading…
↗
9
9299004600
Washer, plain (646)
Loading…
↗
10
69S1429100
-
Loading…
↗
11
69S1429200
-
Loading…
↗
12
67F8193000
Control unit assembly
Loading…
↗
13
69W8554600
Band
Loading…
↗
14
9709506016
Bolt, hexagon deep recess
Loading…
↗
15
9299506600
Washer, plain (646)
Loading…
↗
16
9038706M64
Collar
Loading…
↗
17
9048010M23
Grommet(6k7)
Loading…
↗
18
9020106M62
Washer, plate (6e5)
Loading…
↗
19
9709506045
Bolt, hexagon
Loading…
↗
21
69S8251S00
Switch comp.
Loading…
↗
24
9538006600
Nut(661)
Loading…
↗
25
9299006600
Washer, plain (646)
Loading…
↗
26
6E08362701
Label, caution 7
Loading…
↗
27
69S8197100
Wire, Lead
Loading…
↗
28
9046513M97
Clamp
Loading…
↗
