Yamaha Outboard Parts - OPTIONAL PARTS - 40XMH (2012) | Flood Marine

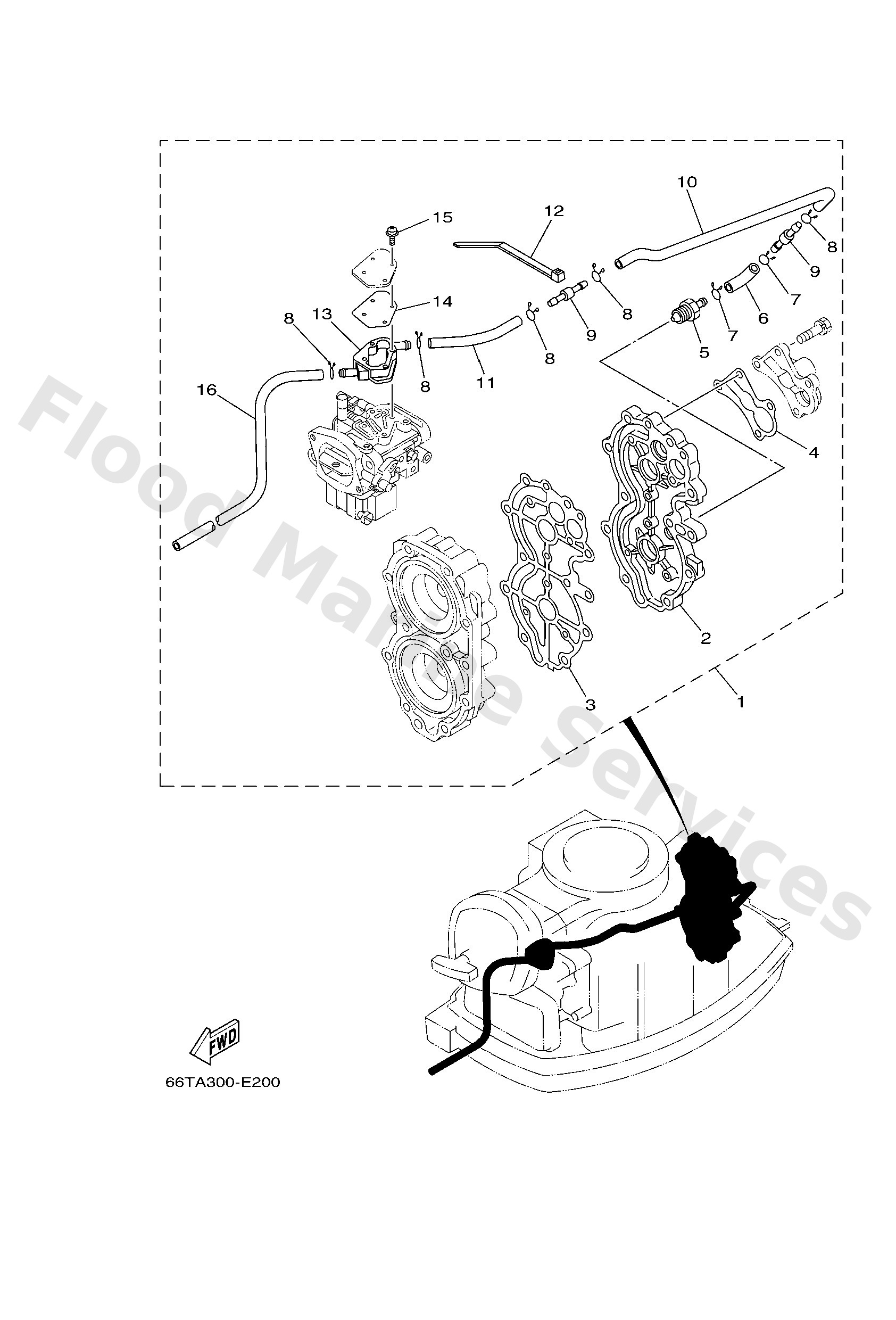

Diagram: OPTIONAL PARTS

Diagram

Parts List

Reference
Description
Price


1
66T1244051 AP
-
Loading…

↗
2
66T1119150
Cover, cylinder head 1
Loading…

↗
3
66T11193A3
Gasket, head cover 1
Loading…

↗
4
67612414A1
Gasket, cover
Loading…

↗
5
66T1246900
Joint 1
Loading…

↗
6
6E52431500
Pipe 5
Loading…

↗
7
9046711M08
Clip(72x)
Loading…

↗
8
9046710M04
Clip, pipe 1 (6e9)
Loading…

↗
9
6E52437900
Pipe, joint 4
Loading…

↗
10
66T1248150
Pipe 1
Loading…

↗
11
66T1248250
Pipe 2
Loading…

↗
12
9046513M36
Clamp(6h4)
Loading…

↗
13
66T1246600
Exchanger, heat
Loading…

↗
14
66T1453600
Gasket
Loading…

↗
15
9798004125
Screw, with washer
Loading…

↗
16
9044511M78
Hose (l1000)
Loading…

↗
