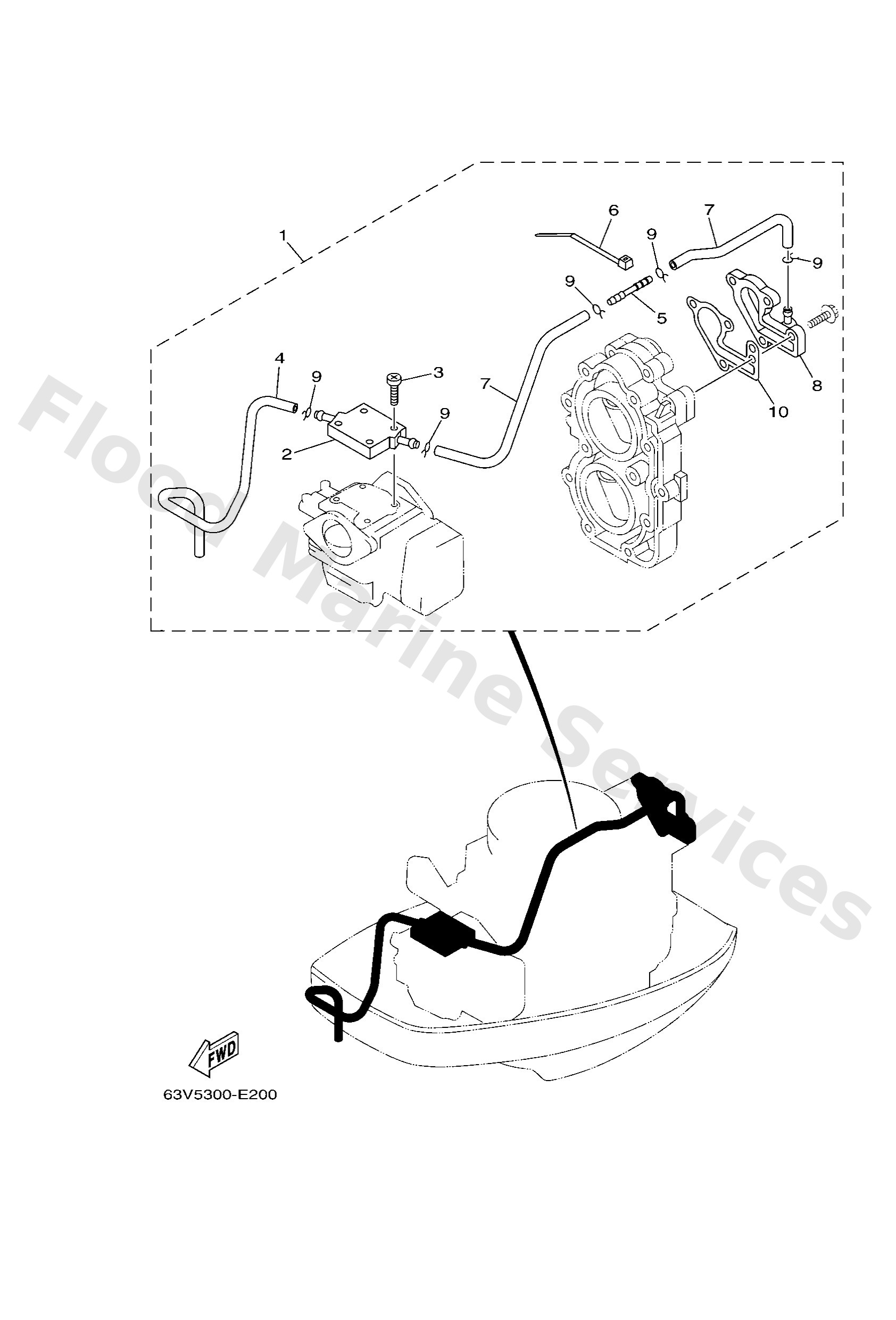

Diagram: OPTIONAL PARTS

Diagram

Parts List

Reference
Description
Price


1
63V1244051
-
Loading…

↗
2
63V1246650
Exchanger, heat
Loading…

↗
3
9788504020
Screw, pan head
Loading…

↗
4
9044509M08
Hose (l865)
Loading…

↗
5
6E58355810
End, nipple
Loading…

↗
6
9046511M10
Clamp
Loading…

↗
7
9044509M54
Hose (l420)
Loading…

↗
8
63V1241350
Cover, thermostat
Loading…

↗
9
9046708M10
Clip, pipe 6162435600
Loading…

↗
10
68212414A1
Gasket, cover
Loading…

↗
