90AETO (2015)
OPTIONAL PARTS

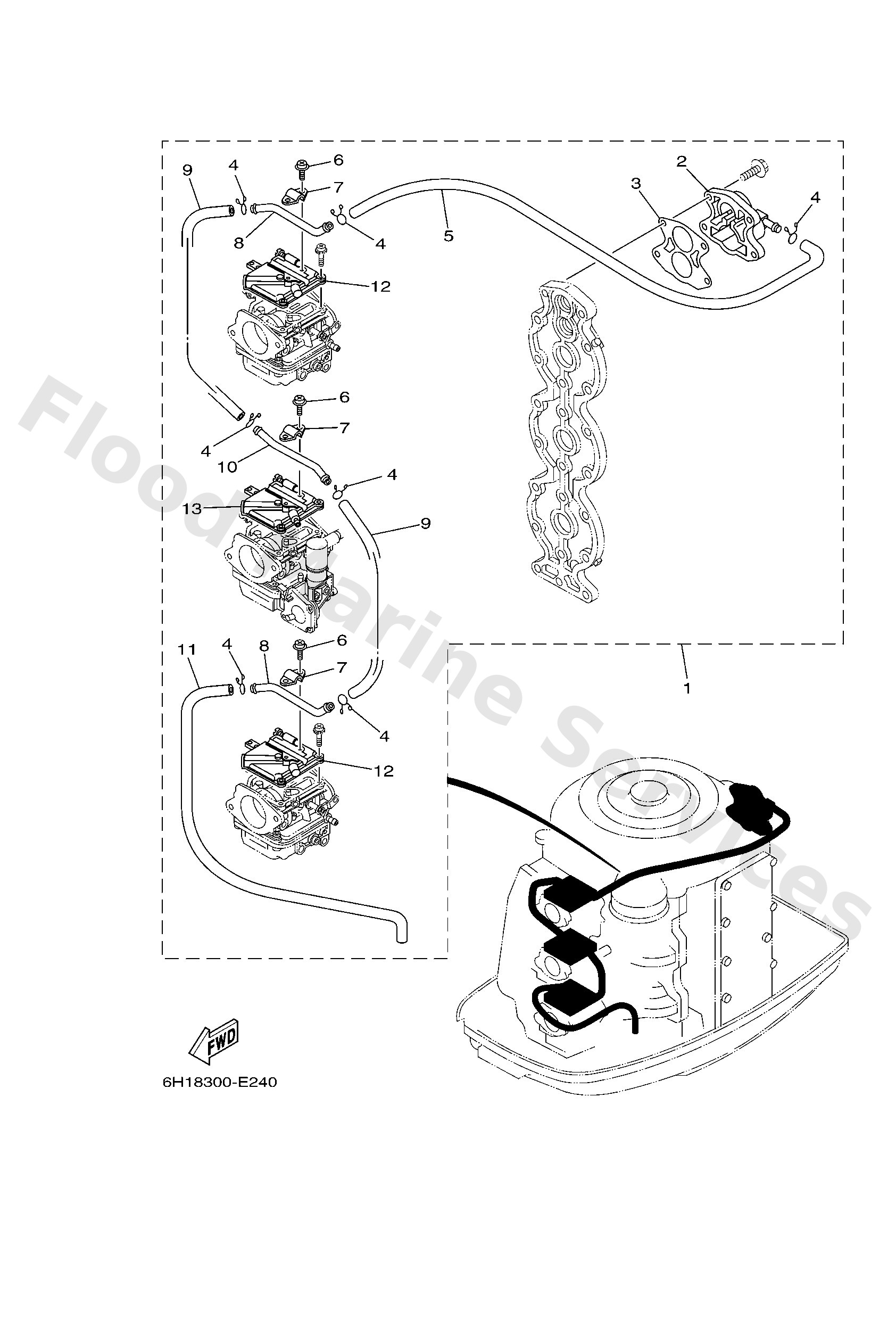

Diagram: OPTIONAL PARTS
Parts List
Reference
Description
Price
1
6H11244052
AP
Heat exchanger assembly
Loading…
↗
2
6H11241350
Cover, thermostat
Loading…
↗
3
6H11241450
Gasket, cover
Loading…
↗
4
9046710M04
Clip, pipe 1 (6e9)
Loading…
↗
5
6H11434851
Pipe 1
Loading…
↗
6
9788004006
Screw, pan head (7h3)
Loading…
↗
7
6H11244350
Stay
Loading…
↗
8
6H112466A0
Exchanger, heat
Loading…
↗
9
6H11434950
Pipe
Loading…
↗
10
6H112466B0
Exchanger, heat
Loading…
↗
11
6E51248100
Pipe 1
Loading…
↗
12
6H41414650
Plate
Loading…
↗
13
6H31414650
Plate
Loading…
↗
