F100BET (2006)
OPTIONAL PARTS

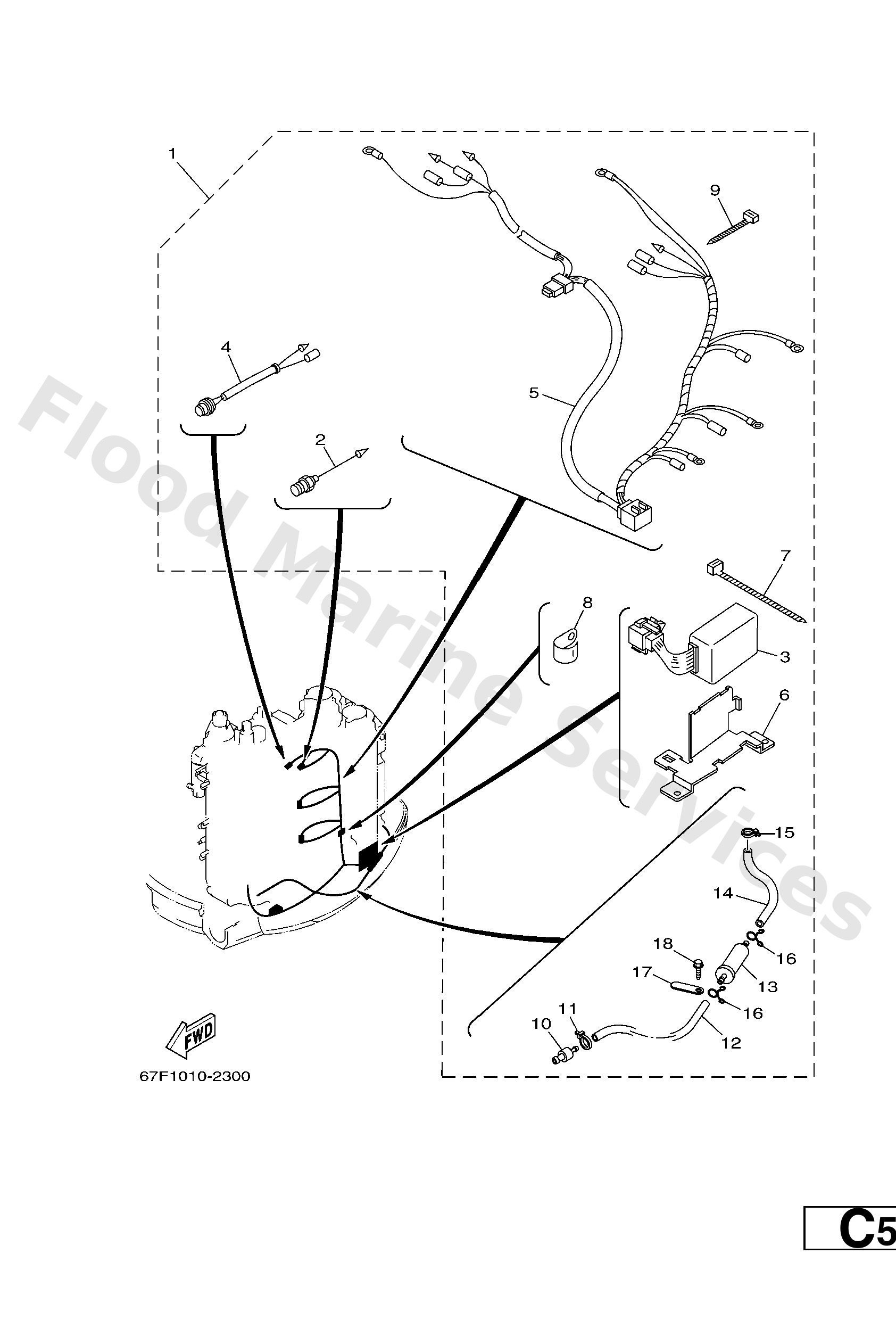

Diagram: OPTIONAL PARTS
Parts List
Reference
Description
Price
1
67F8379011
AP
-
Loading…
↗
2
67F8379200
Heater
Loading…
↗
3
67F8193000
Control unit assembly
Loading…
↗
4
67F8256000
Thermo switch assembly
Loading…
↗
5
67F8197100
Wire, lead
Loading…
↗
6
67F1429100
Bracket 1
Loading…
↗
7
9046513M60
Clamp(63m)
Loading…
↗
8
9046508028
Clamp (1e6)
Loading…
↗
9
9046513M36
Clamp(6h4)
Loading…
↗
10
67F2437700
Pipe, joint 3
Loading…
↗
11
9046511M10
Clamp
Loading…
↗
12
9044511M49
Hose (l700)
Loading…
↗
13
67F2425101
Strainer 1
Loading…
↗
14
67F2451B00
Hose, fuel inlet
Loading…
↗
16
9046710M04
Clip, pipe 1 (6e9)
Loading…
↗
17
6E58258800
Plate
Loading…
↗
18
9010906M81
Bolt
Loading…
↗
