F30AET (2009)
OPTIONAL PARTS

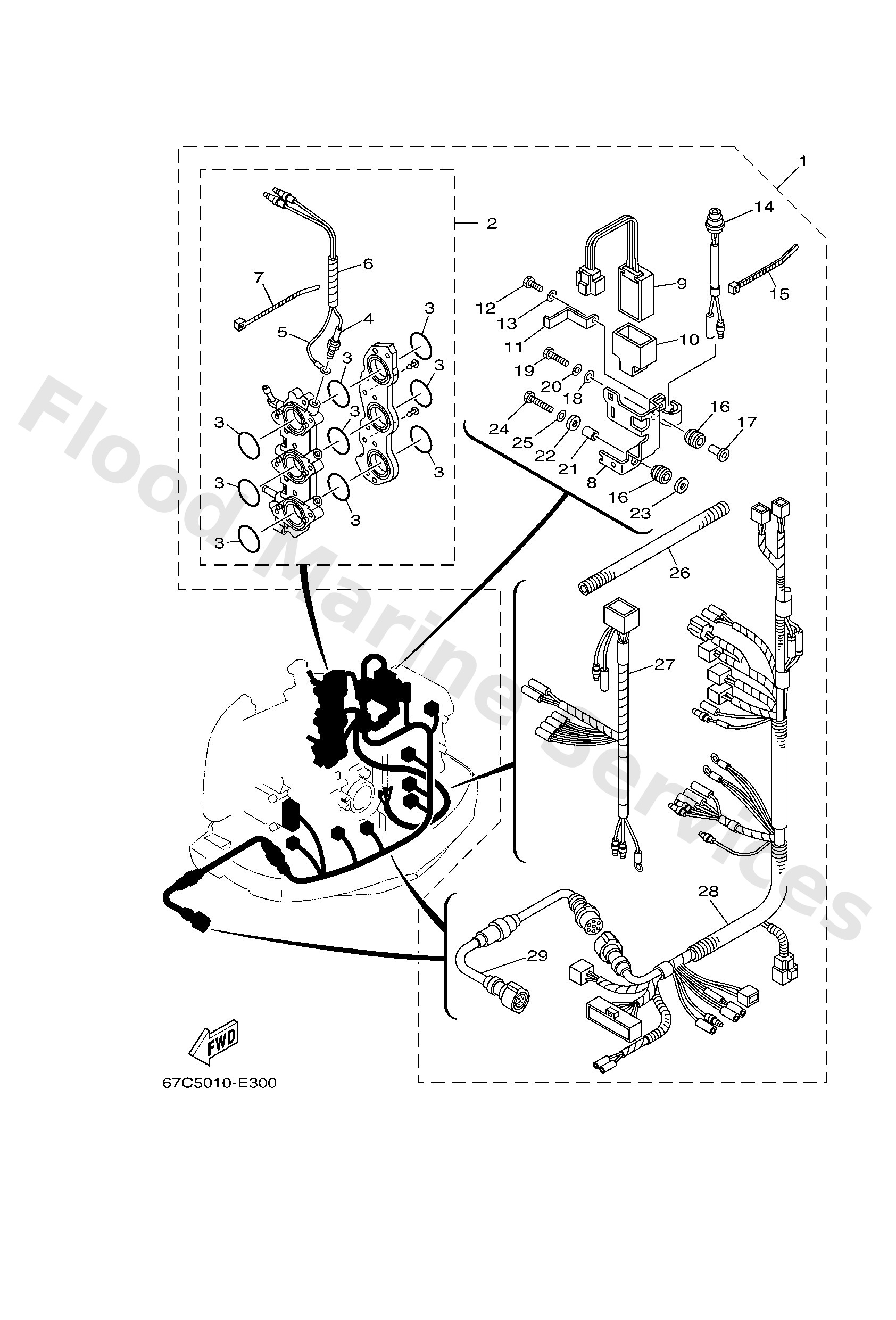

Diagram: OPTIONAL PARTS
Parts List
Reference
Description
Price
1
67C8379001
AP
Heater assembly
Loading…
↗
2
67C1358910
Carburetor joint comp.
Loading…
↗
3
67C1456100
O-ring
Loading…
↗
4
69W8379200
Heater
Loading…
↗
5
69W8335400
Wire, earth lead 1
Loading…
↗
6
9044606M90
Hose
Loading…
↗
7
9046511M10
Clamp
Loading…
↗
8
67C1429100
Bracket 1
Loading…
↗
9
67F8193000
Control unit assembly
Loading…
↗
10
69W8554600
Band
Loading…
↗
11
69W1429200
Bracket 2
Loading…
↗
12
9709506016
Bolt, hexagon deep recess
Loading…
↗
13
9299506600
Washer, plain (646)
Loading…
↗
14
67F8256000
Thermo switch assembly
Loading…
↗
15
9046513M18
Clamp
Loading…
↗
16
9048010M23
Grommet(6k7)
Loading…
↗
17
9038706M60
Collar (6h3)
Loading…
↗
18
9020106M31
Washer (6a0)
Loading…
↗
19
9709506025
Bolt
Loading…
↗
21
9038008M05
Bushing (6a5)
Loading…
↗
22
9020108M05
-
Loading…
↗
23
9020108M07
Washer, plate
Loading…
↗
24
9709508030
Bolt, hexagon (fj1)
Loading…
↗
25
9299508600
Washer, plain (663)
Loading…
↗
26
9044614M58
Hose(6tc)
Loading…
↗
27
67C8197100
-
Loading…
↗
28
67C82590A0
Wire Harness assembly
Loading…
↗
29
67C8258A00
Extension, Wire Harness
Loading…
↗
