F40FED (2010)
OPTIONAL PARTS

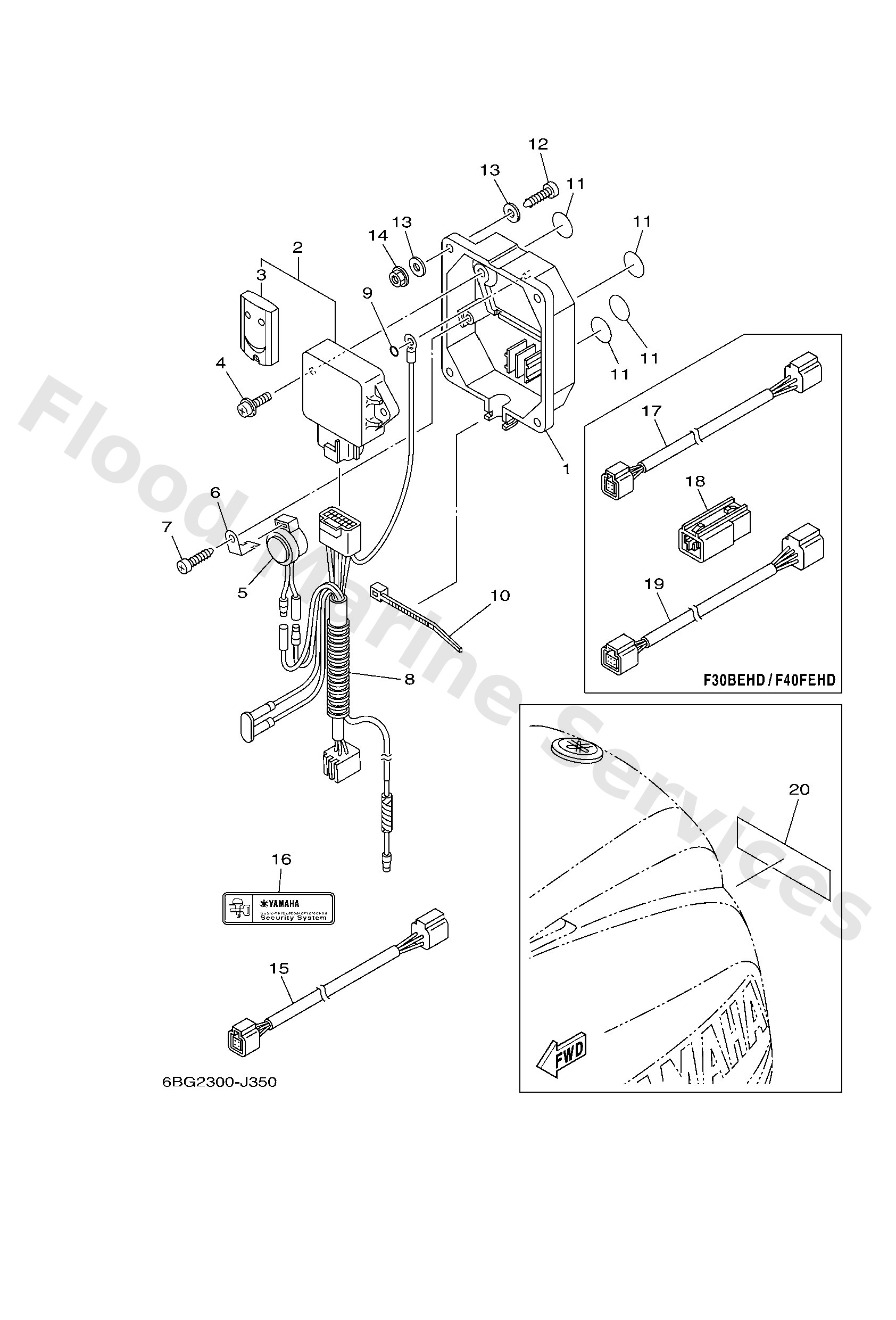

Diagram: OPTIONAL PARTS
Parts List
Reference
Description
Price
1
6Y88626700
Case complete 1
Loading…
↗
2
6Y88626001
Remote control unit assembly
Loading…
↗
3
6AA8626100
Xmtr. comp.
Loading…
↗
4
9798006216
Screw, with washer(6h2)
Loading…
↗
5
6X48338300
Buzzer
Loading…
↗
6
6X48338600
Stay, buzzer
Loading…
↗
7
9778060620
Screw, tapping(6k8)
Loading…
↗
8
6Y88250910
Wire, sub lead
Loading…
↗
8
6Y88250920
Wire, Sub Lead
Loading…
↗
9
9321004279
O-ring (4a0)
Loading…
↗
10
9046511M10
Clamp
Loading…
↗
11
6Y88454G00
Patch 1
Loading…
↗
12
9016706M00
UR
Screw, tapping (6h4)
Loading…
↗
12
9788006035
UR
Screw, pan head(6h4)
Loading…
↗
13
9020106M30
Washer, plate (6a1)
Loading…
↗
14
9578006300
Nut, nylon (6g1)
Loading…
↗
15
6Y88252111
Pigtail bus wire 0.6m-2ft
Loading…
↗
15
6Y88252101
1ft pigtail bus
Loading…
↗
16
6Y84827700
Sticker 1
Loading…
↗
17
6Y88252160
Wire, lead
Loading…
↗
18
6Y88192011
Single-hub
Loading…
↗
19
6Y88255301
Main bus wire 0.3m-1ft
Loading…
↗
