F8CMH (2002)
OPTIONAL PARTS

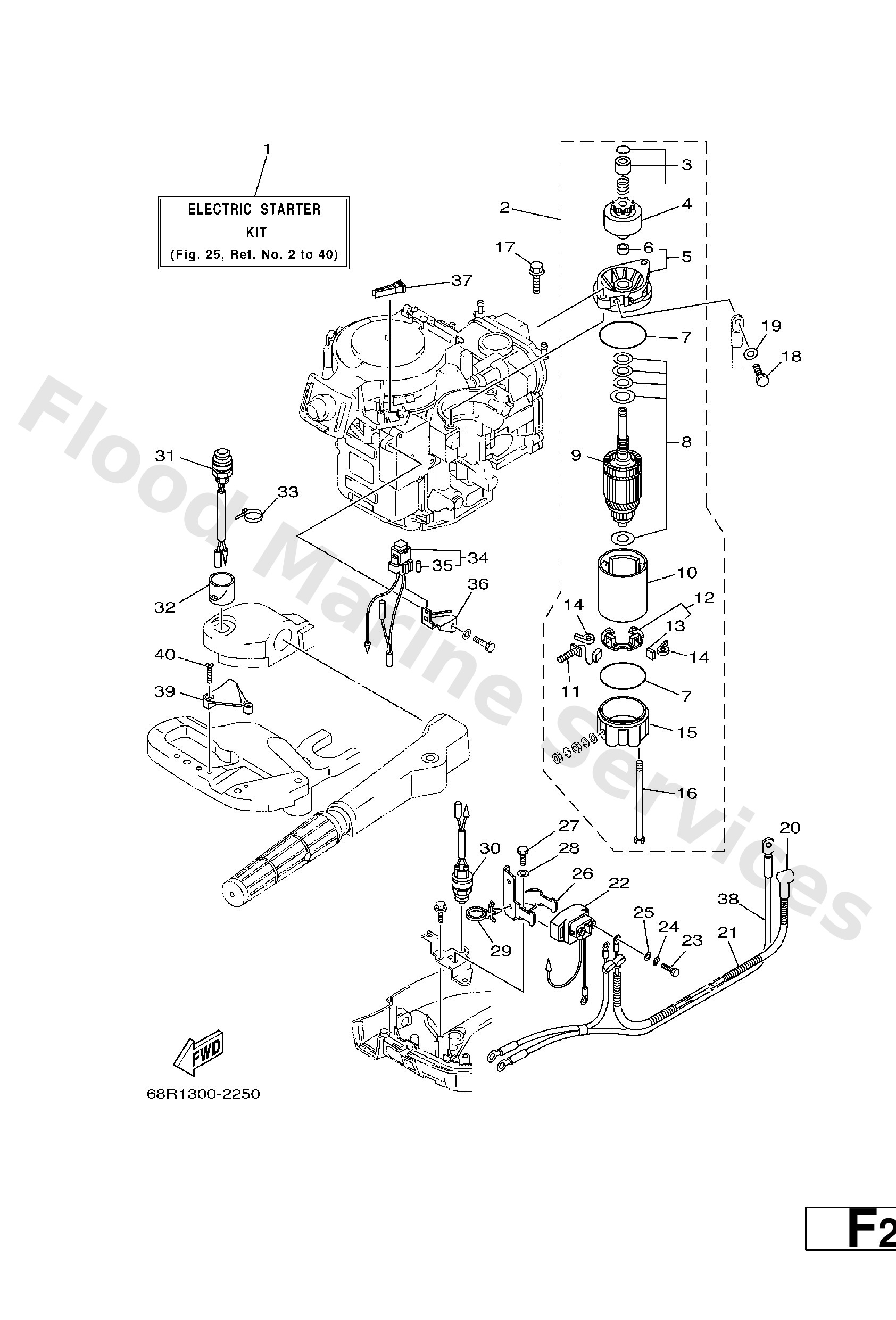

Diagram: OPTIONAL PARTS
Parts List
Reference
Description
Price
1
68RW818000
AP
Electric starter kit
Loading…
↗
2
68T8180000
Starting motor assembly
Loading…
↗
3
68T8185700
Pinion stopper set
Loading…
↗
4
6898180712
Pinion assembly
Loading…
↗
5
6F58183011
Front cover assembly
Loading…
↗
6
6898183100
Metal, front
Loading…
↗
7
6898184711
O-ring
Loading…
↗
8
6898180911
Washer kit
Loading…
↗
9
6898185012
Armature assembly
Loading…
↗
10
6898181011
Stator ass'y
Loading…
↗
11
6898181111
Brush 1
Loading…
↗
12
6898184011
Brush holder assembly
Loading…
↗
13
6898181211
Brush 2
Loading…
↗
14
6898181310
Spring, brush
Loading…
↗
15
6898182011
Rear cover ass'y
Loading…
↗
16
6898182610
Bolt
Loading…
↗
17
9011908M76
Bolt, with washer(6e5)
Loading…
↗
18
9709508016
Bolt, hexagon deep recess
Loading…
↗
19
9299508600
Washer, plain (663)
Loading…
↗
20
6G88211700
Wire, lead
Loading…
↗
21
9044610M86
Hose
Loading…
↗
22
68T8194000
Starter relay assembly
Loading…
↗
23
9709506010
Bolt
Loading…
↗
24
9299506100
Washer(6a1)
Loading…
↗
25
9299506600
Washer, plain (646)
Loading…
↗
26
68T8194500
Plate, switch fitting
Loading…
↗
27
9709506012
Bolt(gh1)
Loading…
↗
29
9046512M56
Clamp(62t)
Loading…
↗
30
6F58254000
Neutral switch assembly
Loading…
↗
31
68T8187000
Starting switch assembly
Loading…
↗
32
68T8182100
Cover, switch
Loading…
↗
33
9046511M10
Clamp
Loading…
↗
34
68T8215000
Fuse holder assembly
Loading…
↗
35
66V8215100
Fuse (10a)
Loading…
↗
36
68T8217100
Stay, fuse box
Loading…
↗
37
67F2812A00
Puller, fuse
Loading…
↗
38
68T8210500
Battery cable (l: 3.0m)
Loading…
↗
39
68T8259400
Clamp
Loading…
↗
40
9015105003
Screw, countersunk
Loading…
↗
