FT60BET (2006)
OPTIONAL PARTS

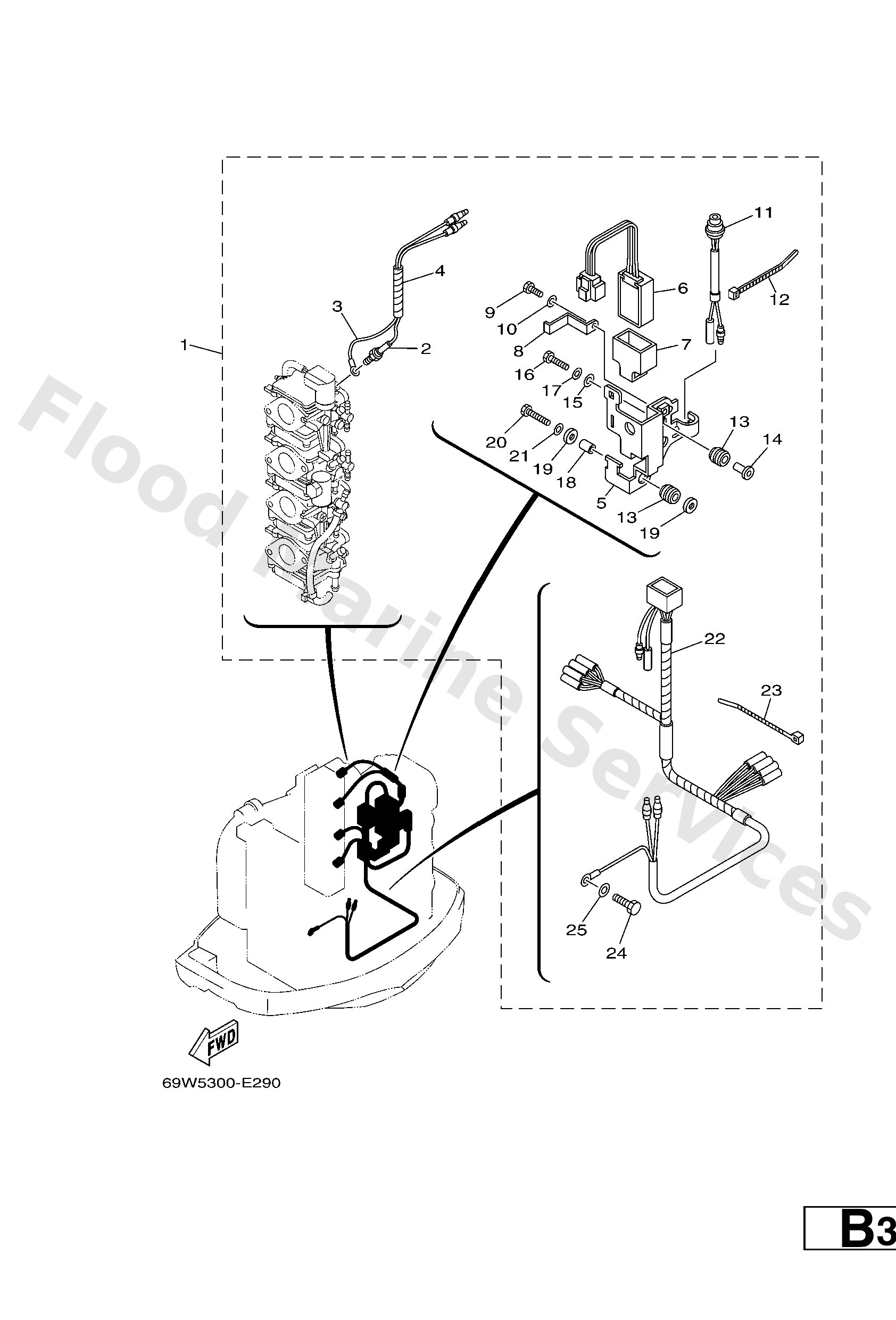

Diagram: OPTIONAL PARTS
Parts List
Reference
Description
Price
1
69W8379001
AP
Heater assembly
Loading…
↗
2
69W8379200
Heater
Loading…
↗
3
69W8335400
Wire, earth lead 1
Loading…
↗
4
9044606M90
Hose
Loading…
↗
5
69W1429100
Bracket 1
Loading…
↗
6
67F8193000
Control unit assembly
Loading…
↗
7
69W8554600
Band
Loading…
↗
8
69W1429200
Bracket 2
Loading…
↗
9
9709506016
Bolt, hexagon deep recess
Loading…
↗
10
9299506600
Washer, plain (646)
Loading…
↗
11
67F8256000
Thermo switch assembly
Loading…
↗
12
9046513M18
Clamp
Loading…
↗
13
9048010M23
Grommet(6k7)
Loading…
↗
14
9038706M60
Collar (6h3)
Loading…
↗
15
9020106M31
Washer (6a0)
Loading…
↗
16
9709506025
Bolt
Loading…
↗
18
9038008M05
Bushing (6a5)
Loading…
↗
19
9020108M05
-
Loading…
↗
20
9709508030
Bolt, hexagon (fj1)
Loading…
↗
21
9299508600
Washer, plain (663)
Loading…
↗
22
69W8197100
Wire, Lead
Loading…
↗
24
9709506012
Bolt(gh1)
Loading…
↗
