FT8DMH (2002)
OPTIONAL PARTS

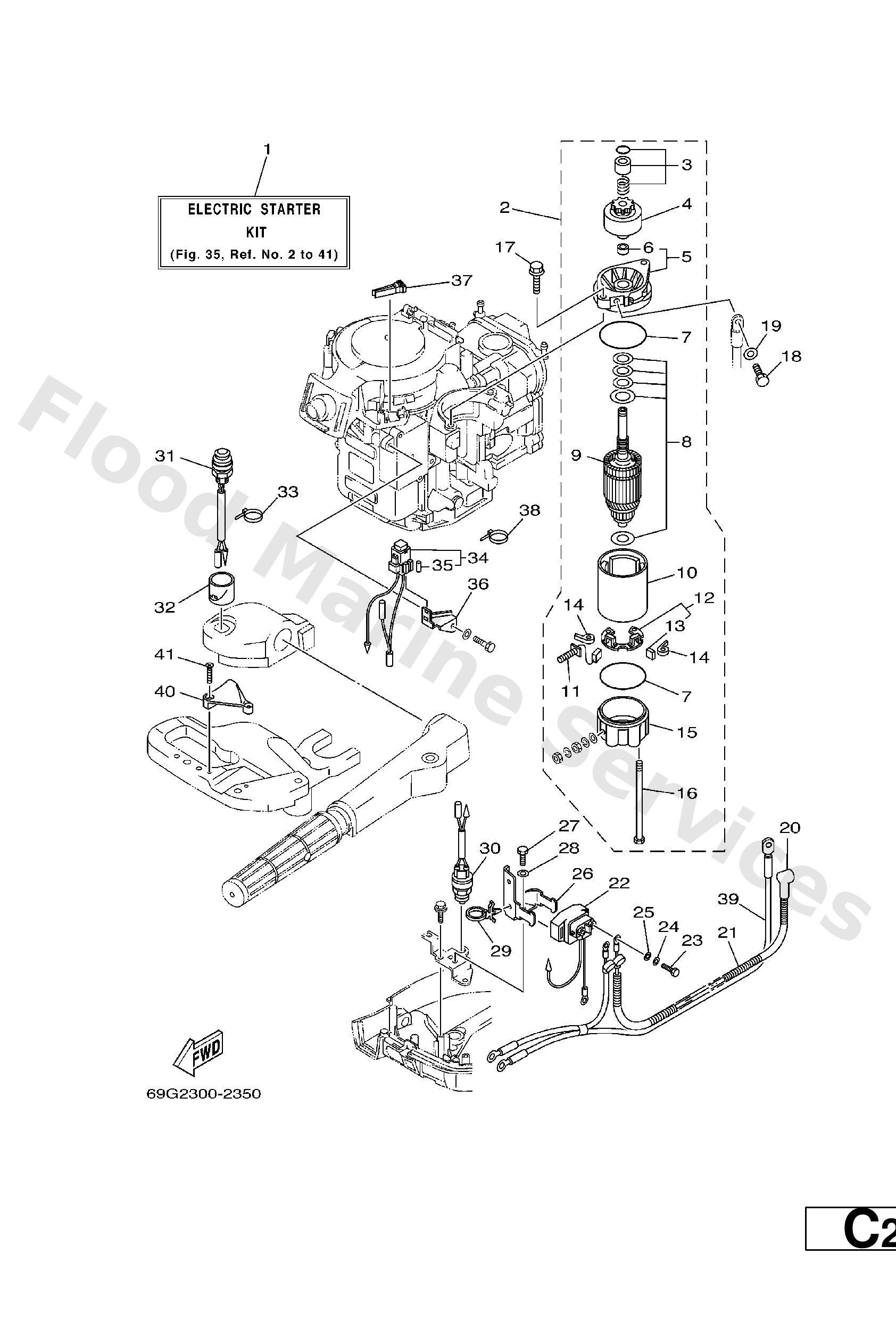

Diagram: OPTIONAL PARTS
Parts List
Reference
Description
Price
1
68R−W8180−00
AP
Electric starter kit
Loading…
↗
2
68T−81800−00
Starting motor assembly
Loading…
↗
3
68T−81857−00
Pinion stopper set
Loading…
↗
4
689−81807−12
Pinion assembly
Loading…
↗
5
6F5−81830−11
Front cover assembly
Loading…
↗
6
689−81831−00
Metal, front
Loading…
↗
7
689−81847−11
O-ring
Loading…
↗
8
689−81809−11
Washer kit
Loading…
↗
9
689−81850−12
Armature assembly
Loading…
↗
10
689−81810−11
Stator ass'y
Loading…
↗
11
689−81811−11
Brush 1
Loading…
↗
12
689−81840−11
Brush holder assembly
Loading…
↗
13
689−81812−11
Brush 2
Loading…
↗
14
689−81813−10
Spring, brush
Loading…
↗
15
689−81820−11
Rear cover ass'y
Loading…
↗
16
689−81826−10
Bolt
Loading…
↗
17
90119−08M76
Bolt, with washer(6e5)
Loading…
↗
18
97095−08016
Bolt, hexagon deep recess
Loading…
↗
19
92995−08600
Washer, plain (663)
Loading…
↗
20
6G8−82117−00
Wire, lead
Loading…
↗
21
90446−10M86
Hose
Loading…
↗
22
68T−81940−00
Starter relay assembly
Loading…
↗
23
97095−06010
Bolt
Loading…
↗
24
92995−06100
Washer(6a1)
Loading…
↗
25
92995−06600
Washer, plain (646)
Loading…
↗
26
68T−81945−00
Plate, switch fitting
Loading…
↗
27
97095−06012
Bolt(gh1)
Loading…
↗
29
90465−12M56
Clamp(62t)
Loading…
↗
30
6F5−82540−00
Neutral switch assembly
Loading…
↗
31
68T−81870−00
Starting switch assembly
Loading…
↗
32
68T−81821−00
Cover, switch
Loading…
↗
33
90465−11M10
Clamp
Loading…
↗
34
68T−82150−00
Fuse holder assembly
Loading…
↗
35
66V−82151−00
Fuse (10a)
Loading…
↗
36
68T−82171−00
Stay, fuse box
Loading…
↗
37
67F−2812A−00
Puller, fuse
Loading…
↗
39
68T−82105−00
Battery cable (l: 3.0m)
Loading…
↗
40
68T−82594−00
Clamp
Loading…
↗
41
90151−05003
Screw, countersunk
Loading…
↗
