F9.9JMH (2025)
OPTIONAL PARTS 1

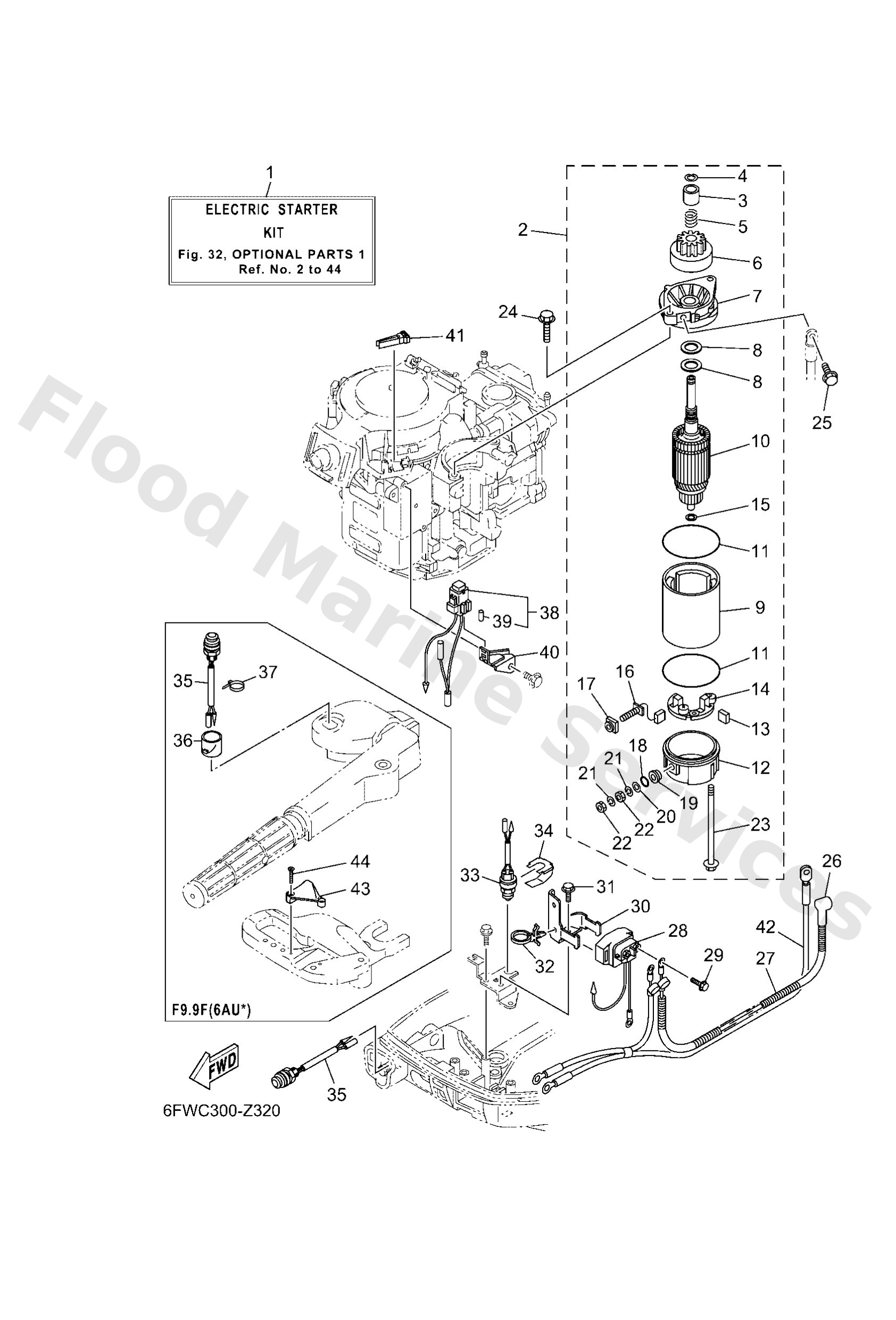

Diagram: OPTIONAL PARTS 1
Parts List
Reference
Description
Price
1
6MCW818002
-
Loading…
↗
2
68T8180010
Starting motor assembly
Loading…
↗
3
68T8185900
Stopper, Pinion
Loading…
↗
4
6898188400
Clip,Pinion Stopper
Loading…
↗
5
6898185800
Spring, Return
Loading…
↗
6
6898180720
Gear assembly, Starting Motor
Loading…
↗
7
68T8183000
Front Bracket assembly
Loading…
↗
8
6898183500
UN
Washer
Loading…
↗
9
6898181020
Stator assembly
Loading…
↗
10
6898185020
Armature assembly
Loading…
↗
11
6898184720
O-Ring
Loading…
↗
12
6898182020
Rear Bracket assembly
Loading…
↗
13
6898181220
Brush 2
Loading…
↗
14
6898184020
Brush Holder assembly
Loading…
↗
15
6898182400
Washer 2
Loading…
↗
16
6898181120
Brush 1
Loading…
↗
17
6898182H00
Bush, Terminal 2
Loading…
↗
18
6898182L00
O-Ring 1
Loading…
↗
19
6898182G00
Bush, Terminal
Loading…
↗
20
6898182E00
Washer
Loading…
↗
21
6898182F00
Washer
Loading…
↗
22
6898182A00
Nut
Loading…
↗
23
6898182620
Bolt
Loading…
↗
24
9011908M76
Bolt, with washer(6e5)
Loading…
↗
25
97E9508516
Bolt, hexagon w/w deep recess
Loading…
↗
26
6G88211701
Wire, lead
Loading…
↗
27
9044610M86
Hose
Loading…
↗
28
68T8194000
Starter relay assembly
Loading…
↗
29
97E9506610
Bolt, hexagon w/w deep recess
Loading…
↗
30
68T8194501
Plate, switch fitting
Loading…
↗
31
97E9506512
Bolt, hexagon w/w deep recess
Loading…
↗
32
9046512M56
Clamp(62t)
Loading…
↗
33
6F58254001
Neutral switch assembly
Loading…
↗
34
6DR8255500
Damper, main switch 1
Loading…
↗
35
68T8187000
Starting switch assembly
Loading…
↗
36
68T8182100
Cover, switch
Loading…
↗
37
9046511M10
Clamp
Loading…
↗
38
68T8215000
Fuse holder assembly
Loading…
↗
39
66V8215100
Fuse (10a)
Loading…
↗
40
68T8217101
Stay, fuse box
Loading…
↗
41
67F2812A00
Puller, fuse
Loading…
↗
42
68T8210502
Battery cable (l: 2.1m)
Loading…
↗
43
68T8259400
Clamp
Loading…
↗
44
9015105003
Screw, countersunk
Loading…
↗
