Yamaha Outboard Parts - OPTIONAL PARTS 1 - FL150DET (2017) | Flood Marine

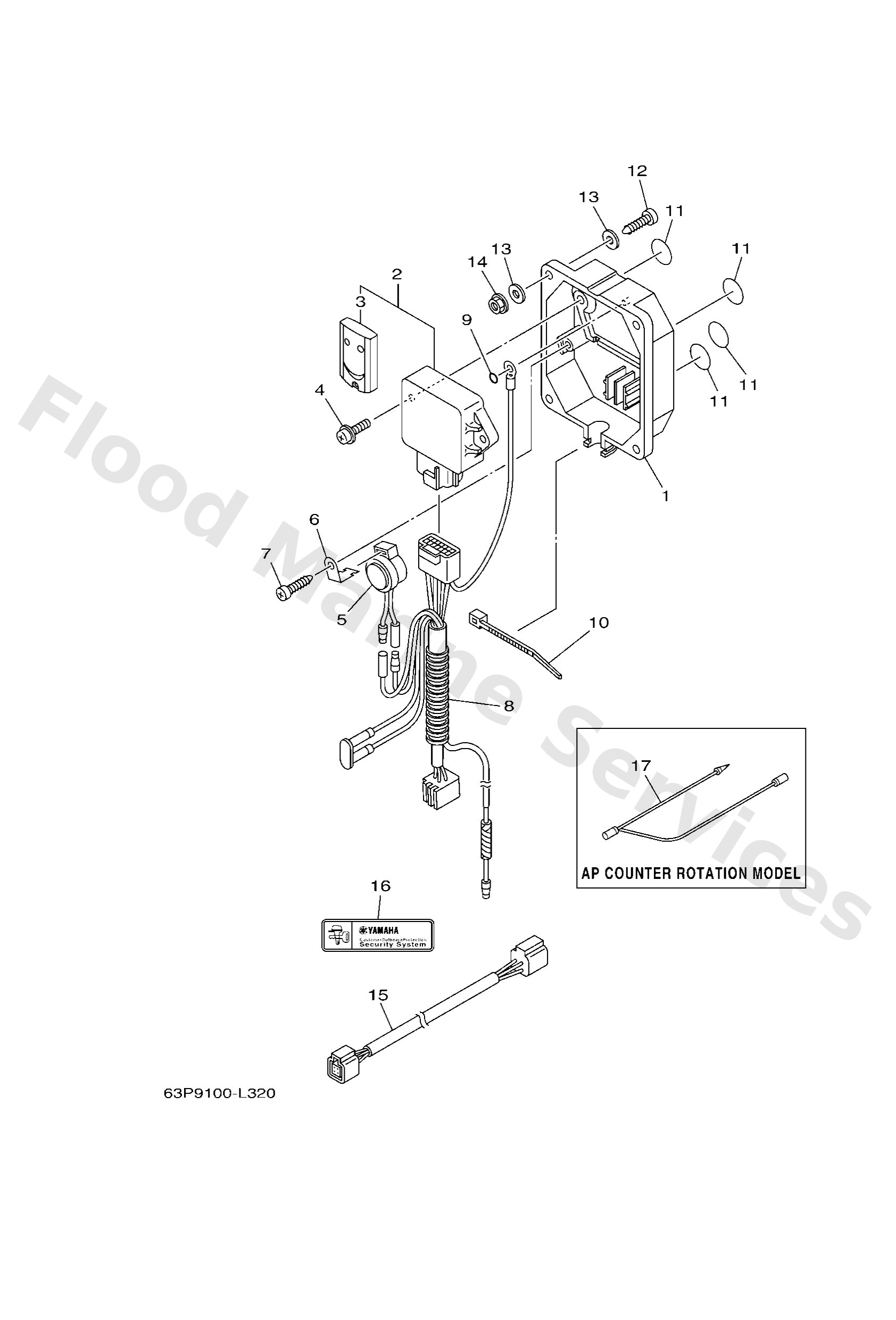

Diagram: OPTIONAL PARTS 1

Diagram

Parts List

Reference
Description
Price


1
6Y88626700
Case complete 1
Loading…

↗
2
6Y88626002
Remote control unit assembly
Loading…

↗
3
6AA8626100
Xmtr. comp.
Loading…

↗
4
9798006216
Screw, with washer(6h2)
Loading…

↗
5
6X48338300
Buzzer
Loading…

↗
6
6X48338600
Stay, buzzer
Loading…

↗
7
9778060620
Screw, tapping(6k8)
Loading…

↗
8
6Y88250910
Wire, sub lead
Loading…

↗
9
9321004279
O-ring (4a0)
Loading…

↗
10
9046511M10
Clamp
Loading…

↗
11
6Y88454G00
Patch 1
Loading…

↗
12
9016706M00 UR
Screw, tapping (6h4)
Loading…

↗
12
9788006035 UR
Screw, pan head(6h4)
Loading…

↗
13
9020106M30
Washer, plate (6a1)
Loading…

↗
14
9578006300
Nut, nylon (6g1)
Loading…

↗
15
6Y88252111
Pigtail bus wire 0.6m-2ft
Loading…

↗
16
6Y84827700
Sticker 1
Loading…

↗
17
6H58131500 AP
Wire, lead
Loading…

↗
