FT9.9LMH (2021)
OPTIONAL PARTS 1

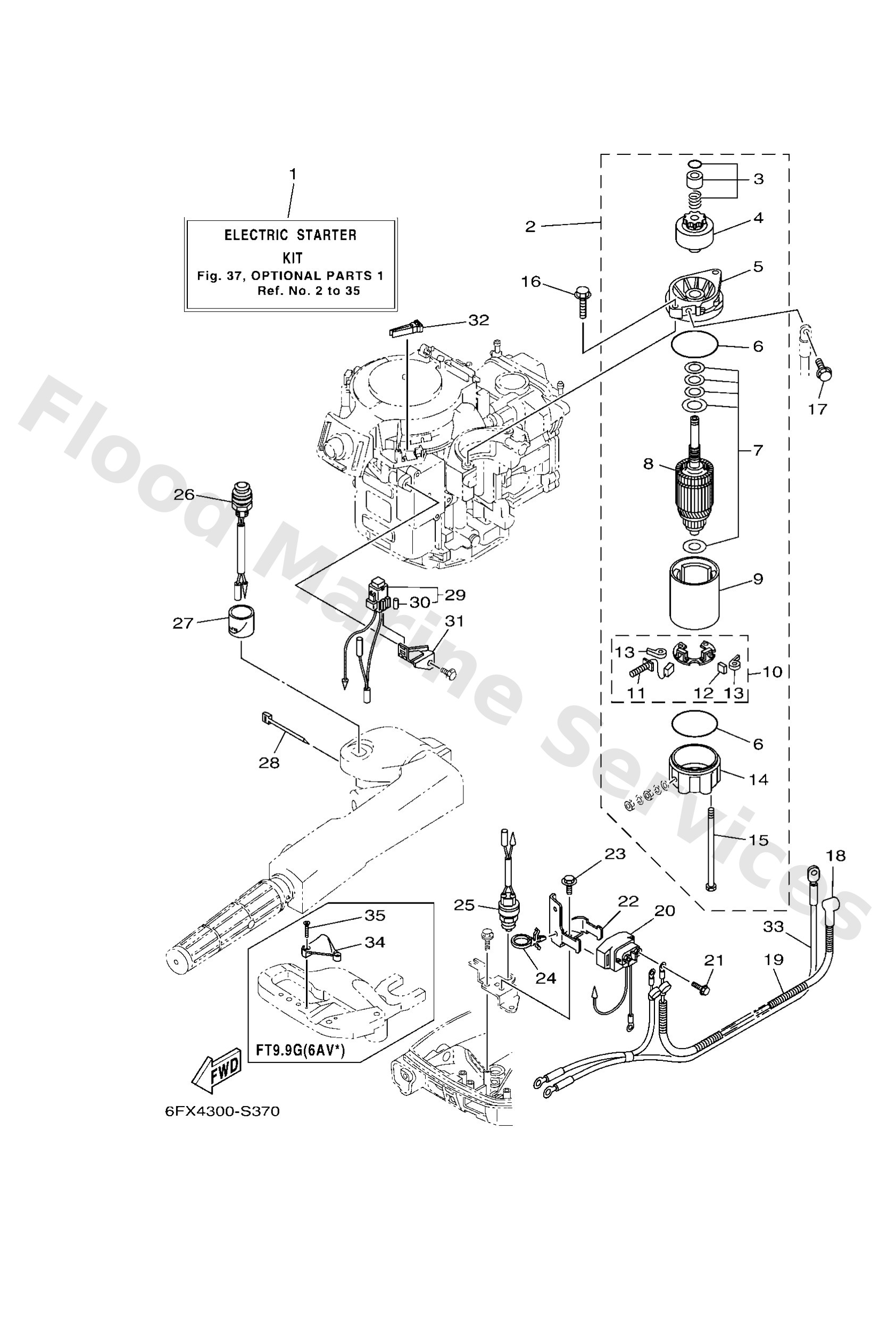

Diagram: OPTIONAL PARTS 1
Parts List
Reference
Description
Price
1
6DRW818002
Electric starter kit
Loading…
↗
2
68T8180000
Starting motor assembly
Loading…
↗
3
68T8185700
Pinion stopper set
Loading…
↗
4
6898180712
Pinion assembly
Loading…
↗
5
6F58183010
Front cover assembly
Loading…
↗
6
6898184711
O-ring
Loading…
↗
7
6898180911
Washer kit
Loading…
↗
8
6898185012
Armature assembly
Loading…
↗
9
6898181011
Stator ass'y
Loading…
↗
10
6898184011
Brush holder assembly
Loading…
↗
11
6898181111
Brush 1
Loading…
↗
12
6898181211
Brush 2
Loading…
↗
13
6898181310
Spring, brush
Loading…
↗
14
6898182011
Rear cover ass'y
Loading…
↗
15
6898182610
Bolt
Loading…
↗
16
9011908M76
Bolt, with washer(6e5)
Loading…
↗
17
97E9508516
Bolt, hexagon w/w deep recess
Loading…
↗
18
6G88211701
Wire, lead
Loading…
↗
19
9044610M86
Hose
Loading…
↗
20
68T8194000
Starter relay assembly
Loading…
↗
21
97E9506610
Bolt, hexagon w/w deep recess
Loading…
↗
22
68T8194501
Plate, switch fitting
Loading…
↗
23
97E9506512
Bolt, hexagon w/w deep recess
Loading…
↗
24
9046512M56
Clamp(62t)
Loading…
↗
25
6F58254001
Neutral switch assembly
Loading…
↗
26
68T8187000
Starting switch assembly
Loading…
↗
27
68T8182100
Cover, switch
Loading…
↗
28
9046511M10
Clamp
Loading…
↗
29
68T8215000
Fuse holder assembly
Loading…
↗
30
66V8215100
Fuse (10a)
Loading…
↗
31
68T8217101
Stay, fuse box
Loading…
↗
32
67F2812A00
Puller, fuse
Loading…
↗
33
68T8210501
Battery cable (l: 2.1m)
Loading…
↗
34
68T8259400
Clamp
Loading…
↗
35
9015105003
Screw, countersunk
