Yamaha Outboard Parts - OPTIONAL PARTS 2 - F40NET (2025) | Flood Marine

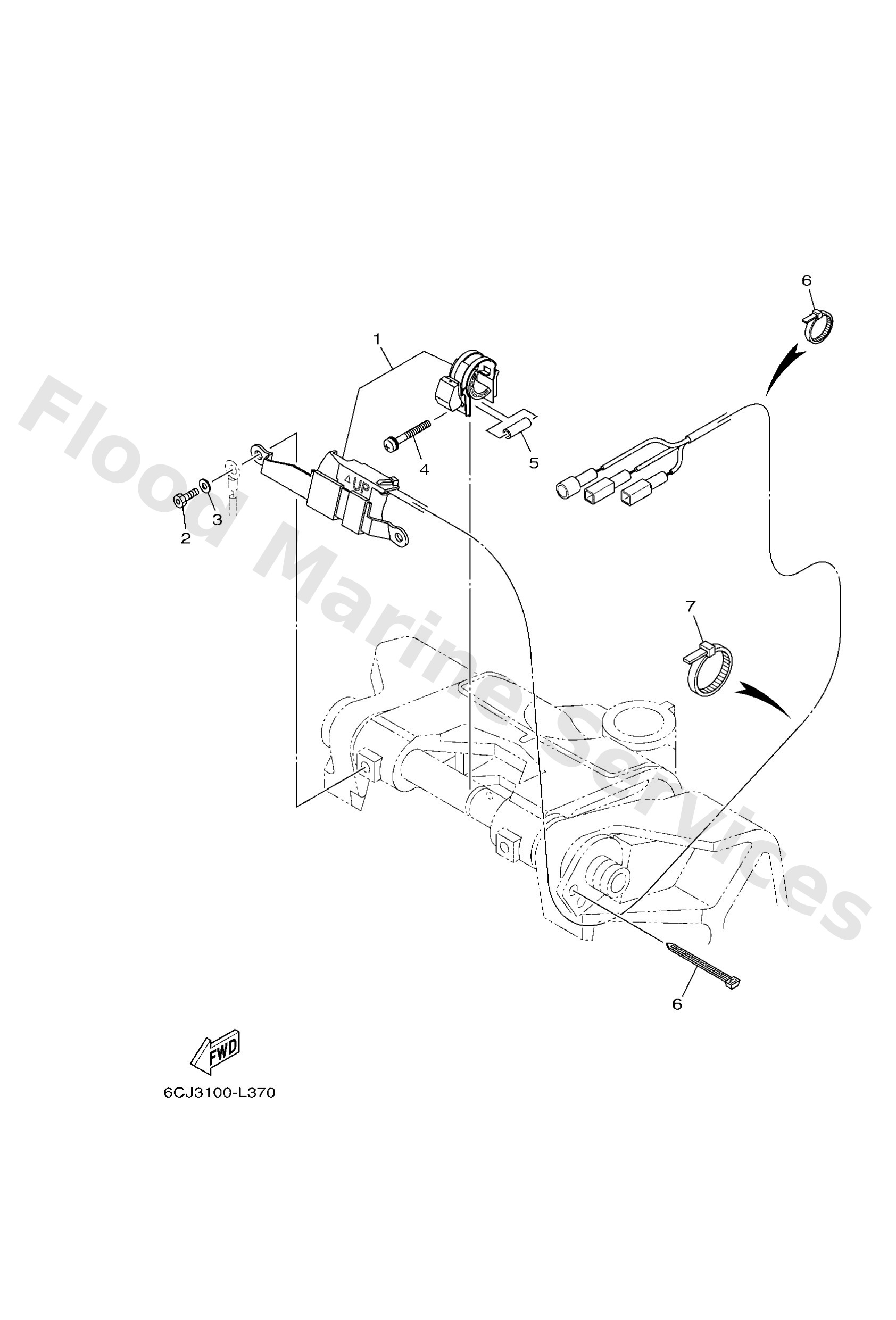

Diagram: OPTIONAL PARTS 2

Diagram

Parts List

Reference
Description
Price


1
6C5825E001
Tilt limit switch assembly
Loading…

↗
2
9010906M88
Bolt(61a)
Loading…

↗
3
9299006100
Washer(6a1)
Loading…

↗
4
9015905059
Screw, with washer
Loading…

↗
5
9038705004
Collar
Loading…

↗
6
9046511M10
Clamp
Loading…

↗
7
9046513M18
Clamp
Loading…

↗
